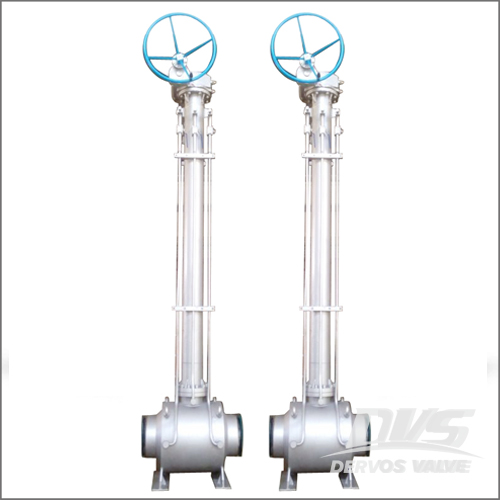

A105 Extended Bonnet Ball Valve, API 6D, ASME B16.34, 12IN, CL600
Key Specifications / Features
China A105 Extended Bonnet Ball Valve Supplier Kelly Provides A105 Extended Bonnet Ball Valve, API 6D, ASME B16.34 Standard, 12IN, CL600, BW End.
- Model No.: FW BV 08
- Hits: 25
- Categories: Full Welded Ball Valve
- Tags: Extended Bonnet Ball Valve , ASTM A105N Ball Valve , API 6D Ball Valve
Detail Information
Valve Description:
Design Standard: API 6D, ASME B16.34.
Body Material: A105.
Nominal Diameter: 12".
Pressure: CL600.
End Connection: BW.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598.
Product Range:
Body Material: Low Temperature Carbon Steel, Carbon Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Design Standard: API 6D, ASME B16.34.
Body Material: A105.
Nominal Diameter: 12".
Pressure: CL600.
End Connection: BW.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gearbox.
Test and Inspection: API 598.
Product Range:
Body Material: Low Temperature Carbon Steel, Carbon Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: 150lbs~2500lbs(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
Products
Full Welded Ball Valve
Back to List
Similar Products

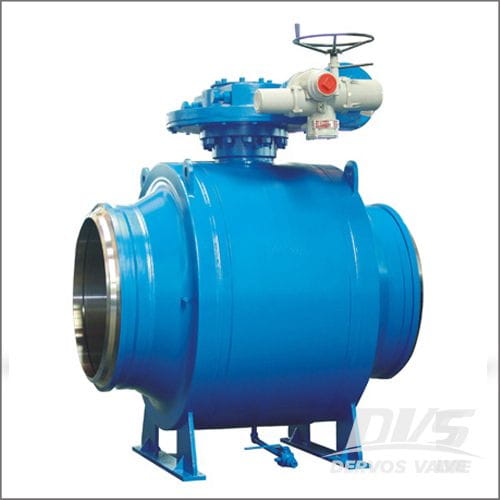

10 Inch Ball Valve, A105, ASME B16.34, Class 300, BW End, Gearbox
