UNS N08031 Alloy 31 Swing Check Valve, BS 1868, 10 Inch, 150 LB
Key Specifications / Features
UNS N08031 Alloy 31 Swing Check Valve Provider: UNS N08031 Swing Check Valve, Alloy 31, 10 Inch, Class 150 LB, BS 1868, Flat Flange, ASME B16.5.
- Hits: 14
- Categories: Swing Check Valve
- Tags: ASME B16.5 Swing Check Valves , Flat Flanged Swing Check Valve , BS 1868 Swing Check Valve
Detail Information
Name: BS 1868 10 Inch 150 LB Swing Check Valve UNS N08031 FF, Alloy 31 Check Valves.
This 10 inch 150 LB check valve is made of alloy 31, or UNS No8031, that is resistant to corrosion and erosion in phosphoric acid and is often used in bleaching plants and the pulp and paper industry.
Quick Detail
General Description:
Check valves have a simple design, and in general cannot be manually operated. They are meant to prevent backflow, and come in swing, ball, piston, screw-down and dual-plate configurations.
Features:
Alloy hinge pin.
Bodies are made of high strength alloy with reinforced flanges.
Available with lever-and-spring or lever-and-weight.

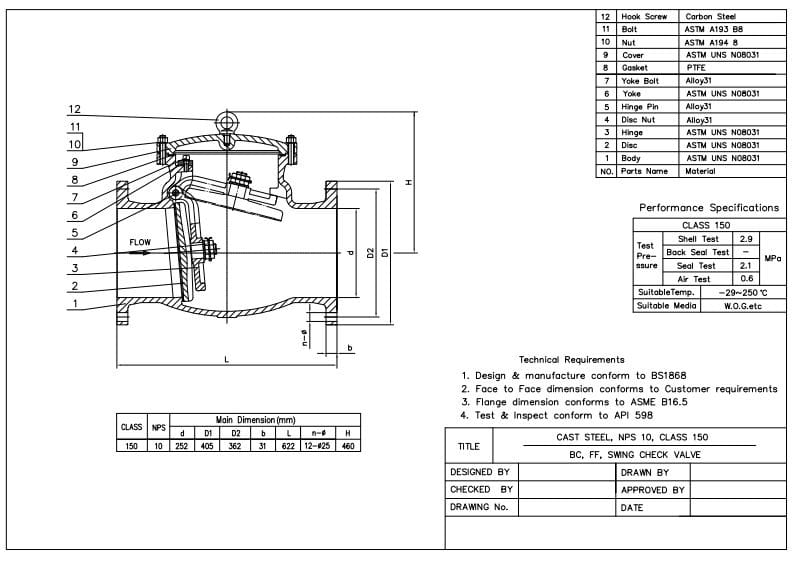

Technical Drawing:

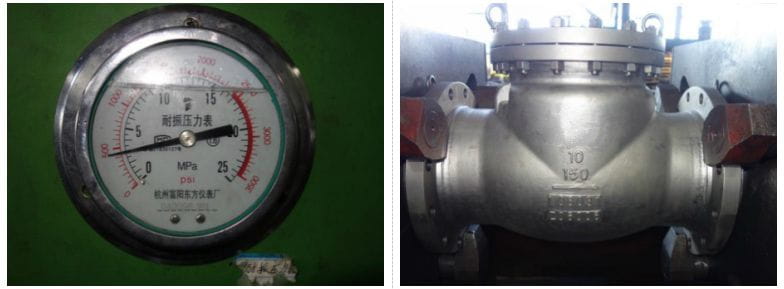

Witness Tests:

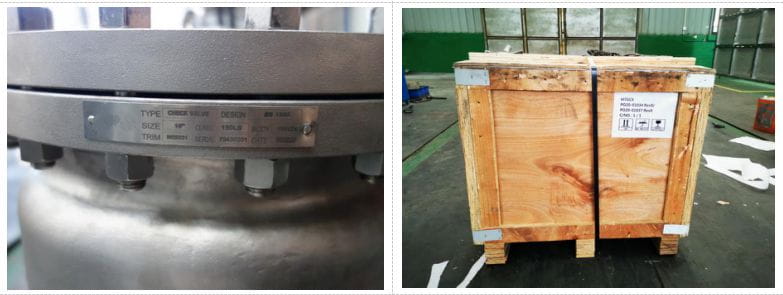

Nameplate&Packaging:
Product Application:
Kelly valves can be widely used in varieties of industries, such as petrochemical, pipeline, oil & gas, marine, water treatment, power station industries and etc.
This 10 inch 150 LB check valve is made of alloy 31, or UNS No8031, that is resistant to corrosion and erosion in phosphoric acid and is often used in bleaching plants and the pulp and paper industry.
Quick Detail
| Type | Check Valve |
| Nominal Diameter | 10 Inch |
| Nominal Pressure | 150LB |
| Construction | Swing Type |
| Connection | Flat Flange |
| Design & Manufacture | BS1868 |
| End to End Dimension | Customer Requirement |
| Flange Dimension | ASME B16.5 |
| Test & Inspection | API 598 |
| Body Material | ASTM UNS No8031 |
| Disc Material | ASTM UNS No8031 |
| Temp. Range | -29～250°C |
| Media | Water, Oil, Gas, etc |
General Description:
Check valves have a simple design, and in general cannot be manually operated. They are meant to prevent backflow, and come in swing, ball, piston, screw-down and dual-plate configurations.
Features:
Alloy hinge pin.
Bodies are made of high strength alloy with reinforced flanges.
Available with lever-and-spring or lever-and-weight.
Technical Drawing:
Witness Tests:
Nameplate&Packaging:
Product Application:
Kelly valves can be widely used in varieties of industries, such as petrochemical, pipeline, oil & gas, marine, water treatment, power station industries and etc.
