BS 1868 Non Return Valve, ASTM A216 WCB, 3 Inch, 300 LB
Key Specifications / Features
BS 1868 Non-Return Valve Manufacturer: Cast Steel ASTM A216 WCB Non-Return Valves, Swing Type, 3 Inch, Class 300 LB, BS 1868, BB, External Pin, Flanged Ends.
- Hits: 15
- Categories: Swing Check Valve
- Tags: BS 1868 Swing Check Valve , Swing Type Check Valve , Cast Steel Check Valve
Detail Information
| Type | Non-Return Valve (Check Valve) |
| Nominal Size | 3 Inch |
| Nominal Pressure | 300LB |
| Construction | BB, Swing Type Disc, External Pin |
| Connection | Flanged |
| Design & Manufacture | BS 1868 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection | API598 |
| Body Material | WCB |
| Applicable Temp | -29 - 425℃ |
| Media | W.O.G. |
Features
1. BB: bolted bonnet
2. Swing type disc
3. Full/Reduced bore design
4. Superior flow rates
5. Minimized friction loss
6. Standard trim material for selection
7. External or internal hinge pin available on request
8. Cylinder and counterweight available on request
9. Bare stem and actuators are available on request
Technical Drawing

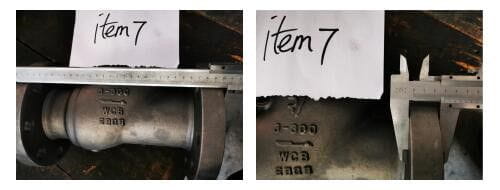

Dimension Check
Witnessing Tests

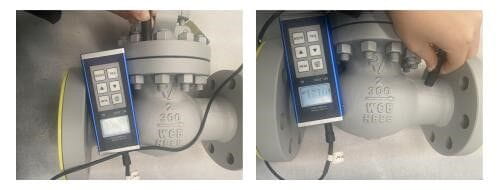

Coat Thickness Check
