Key Specifications / Features
8 Inch X 6 Inch 150 LB ball valve is made according to API 6D standard. The valve body is made of ASTM B148 C95800. It has the structural characteristics of fixed ball, reduced diameter, two-piece, anti-fire, anti-static, anti-flying stem design. Its connection mode is FF flange. And it has worm gear operation mode.
- Hits: 0
- Categories: Trunnion Ball Valve
- Tags: API 6D Ball Valve , Class 150 LB Ball Valve , ASTM B148 C95800 Ball Valve
Detail Information

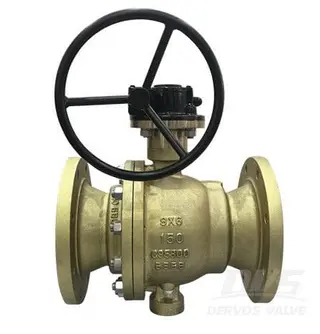

8 Inch X 6 Inch 150 LB Trunnion Mounted Ball Valve FF API 6D Worm Gear
Features
1. Low fluid resistance, simple structure, small volume, and lightweight;
2. Easy to operate, quick to open and close, tight and reliable, with good sealing performance.

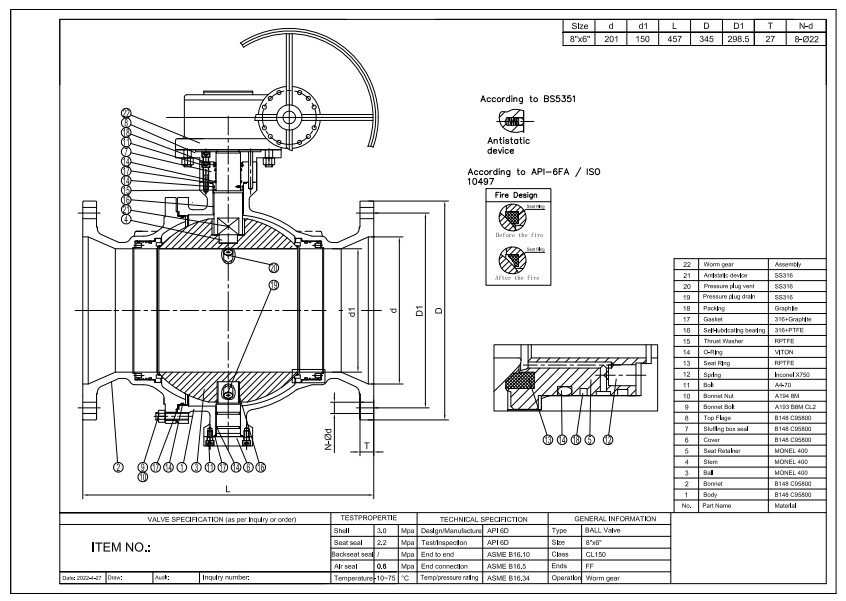

Technical Drawing
Dimension Checking

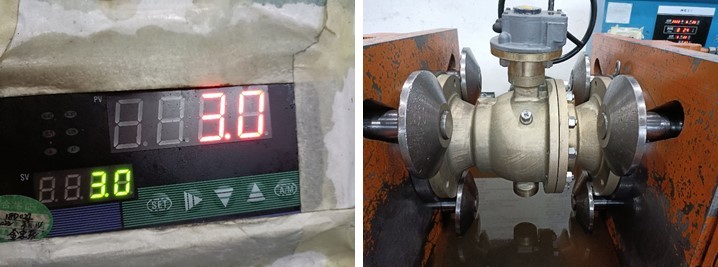

Pressure Testing

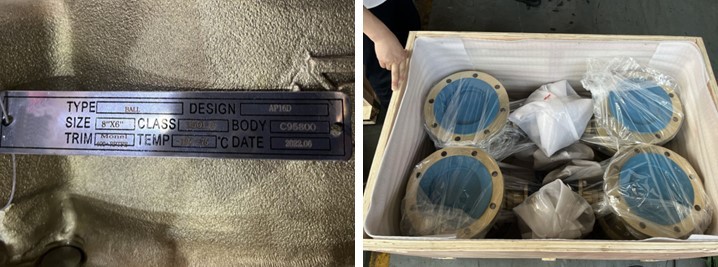

Nameplate & Packing

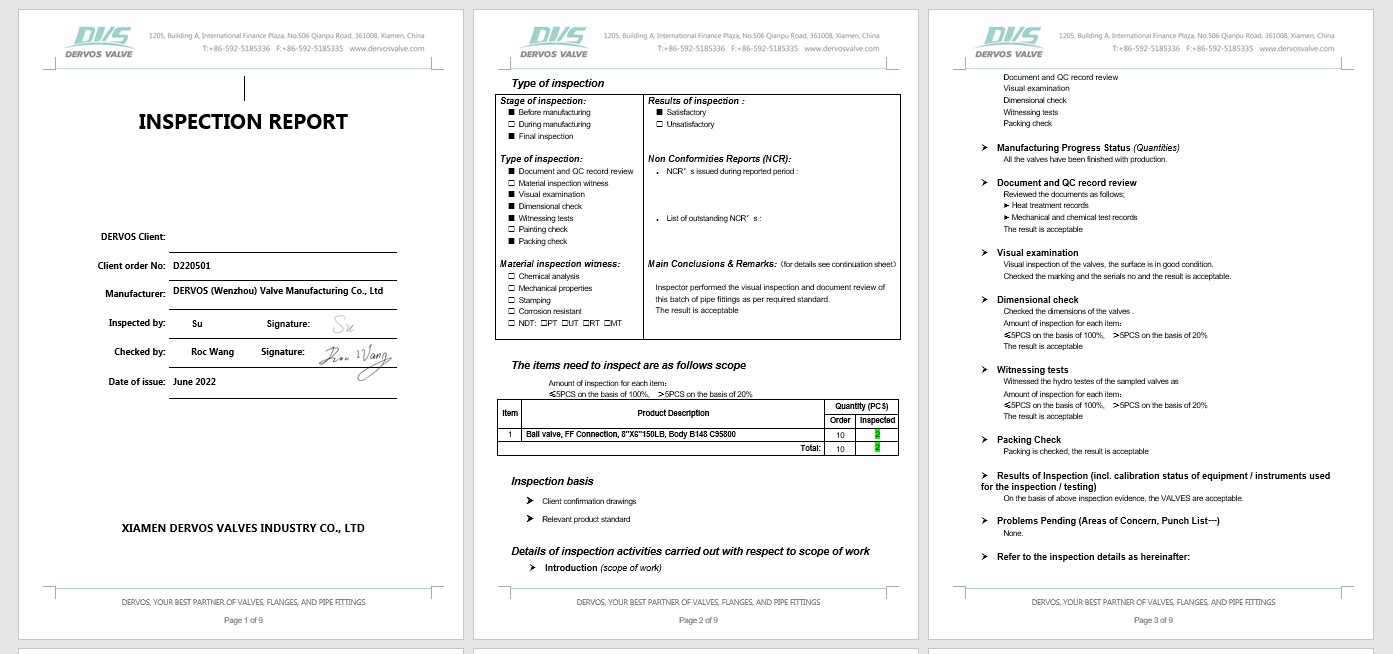

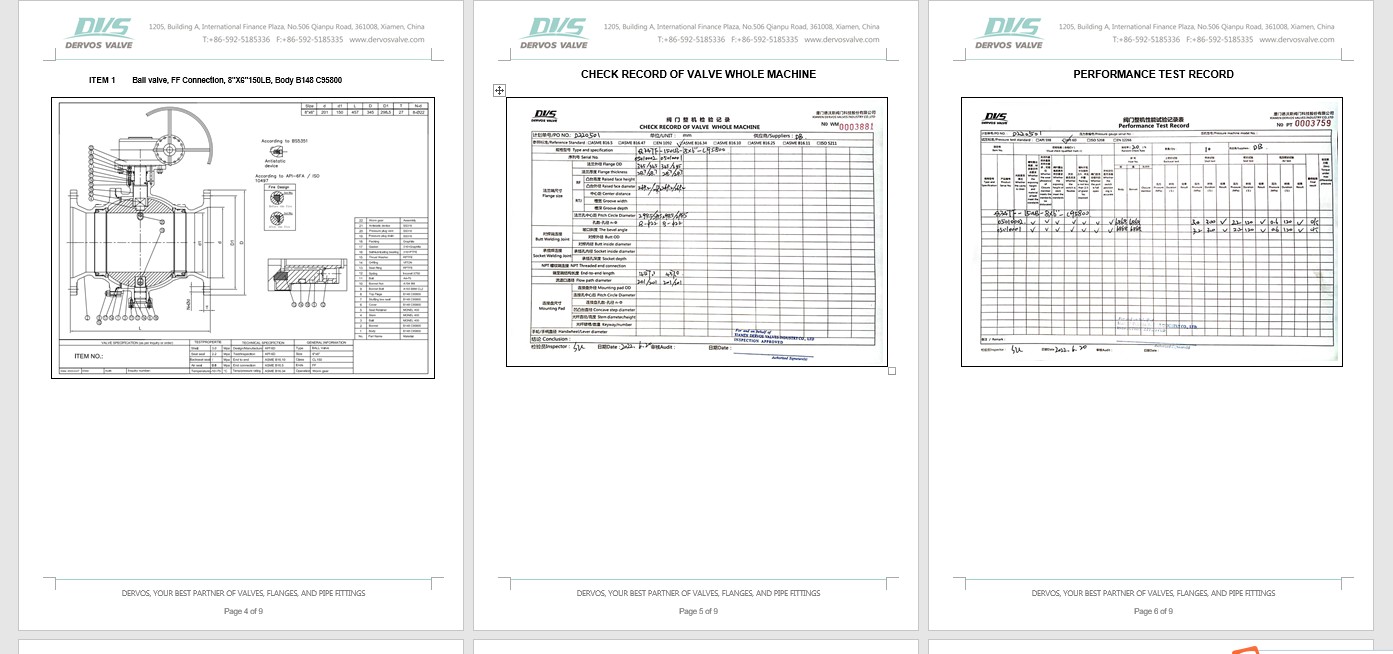

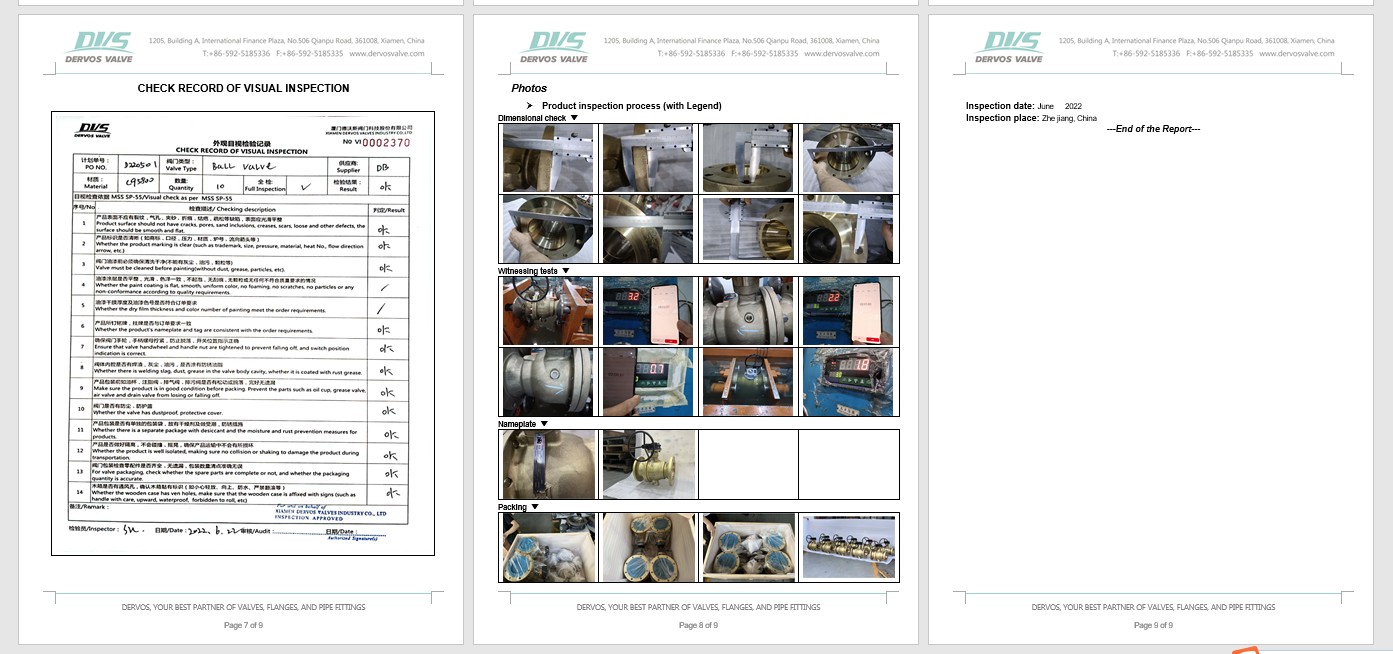

Inspection report
Features
1. Low fluid resistance, simple structure, small volume, and lightweight;
2. Easy to operate, quick to open and close, tight and reliable, with good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
