ASTM A350 LF2 Trunnion Ball Valve, 10 Inch, 600 LB, API 6D, RF
Key Specifications / Features
The 10-inch 600-lb ball valve is made according to API 6D standards. The valve body is made of ASTM A350 LF2. It has the structural characteristics of a fixed ball, full bore, split type, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF (125 AARH). It has turbine operation mode (with a locking device).
- Hits: 5
- Categories: Trunnion Ball Valve
- Tags: ASTM A350 LF2 Ball Valve , 10 Inch Ball Valve , Class 600 LB Ball Valve
Detail Information
10 Inch 600 LB Trunnion Mounted Ball Valve RF LF2 API 6D
Features
1. The body is fixed and will not move with changes in the fluid. This design makes the operation of ball valves simpler and more controllable.;
2. Simple structure, easy installation and maintenance, widely used, long service life.
Technical Drawing

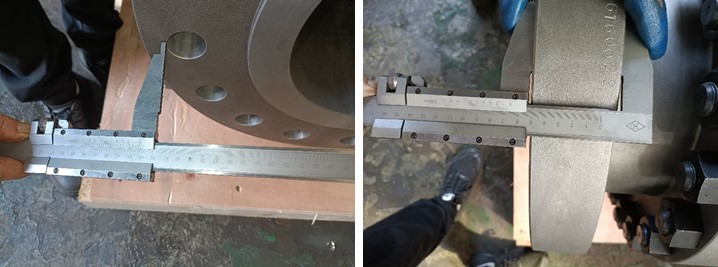

Dimension Checking

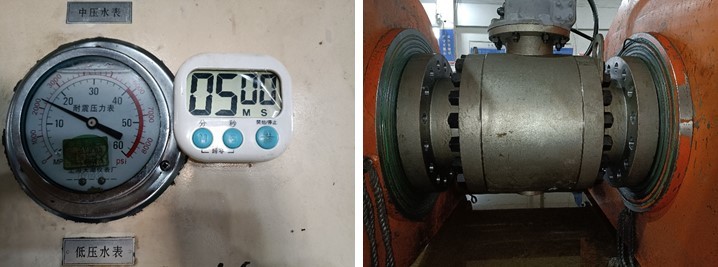

Pressure Testing
Packing
Inspection report
Features
1. The body is fixed and will not move with changes in the fluid. This design makes the operation of ball valves simpler and more controllable.;
2. Simple structure, easy installation and maintenance, widely used, long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
