Forged ASTM A182 F51 Globe Valve, 1/2 Inch, 800 LB, API 602, SW
Key Specifications / Features
Forged ASTM A182 F51 Globe Valve Provider: Forged Steel Globe Valve, ASTM A182 F51, 1/2 Inch, 800 LB, API 602, BS 5352, Bolted Bonnet, OS & Y, SW Ends.
- Hits: 19
- Categories: Globe Valve
- Tags: Socket Welded Globe Valve , OS & Y Globe Valve , BS 5352 Globe Valve
Detail Information
The 1/2 inch forged steel globe valve is made according to API 602. Because of it's small size, it is socket welded and designed with other common fittings including bolted bonnet, outside yoke and a handwheel.
Quick Detail
Features:
A compact but extremely sturdy design for high pressure-temperature service.
·Bolted or Welded Bonnet.
·Flanged, Threaded or Socket Weld Ends.
·Forged Carbon, Stainless or Alloy Steel Materials.
·Available in all trim configurations.
·Full Port option available for classes 150 - 1500.

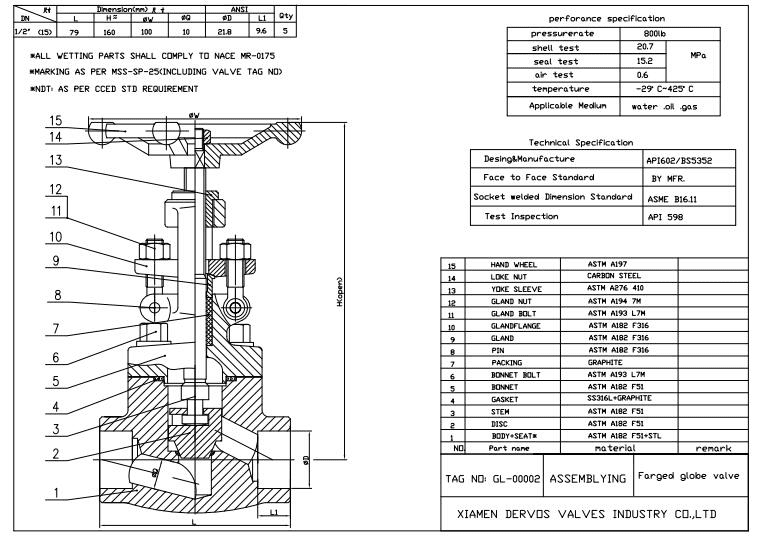

Technical Drawing:

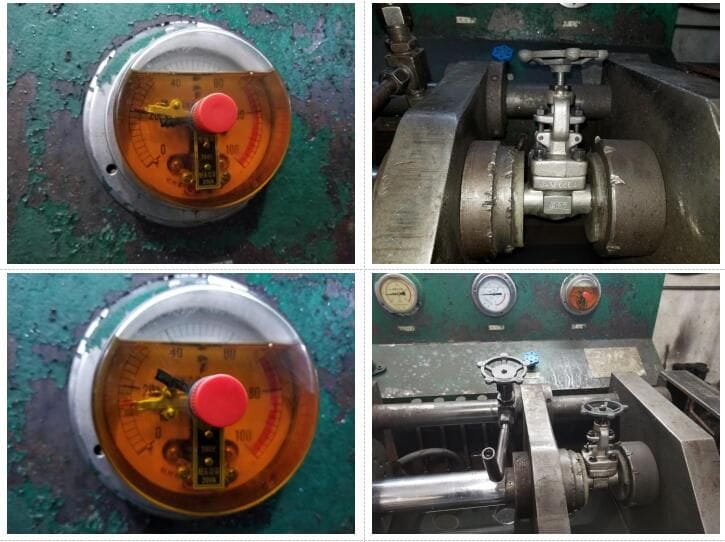

Witness Drawing:
Kelly Packaging:
Based on sufficient experience, we have developed complete packing specifications and procedures to ensure clear and safe transportation so that you can receive good and sound products. And this is also an important factor that we earn good reputation from our customers.
Quick Detail
| Type | Globe Valve |
| Nominal Size | 1/2 Inch |
| Nominal Pressure | 800LB |
| Construction | Straight-through Type; Bolted Bonnet; OS&Y |
| Connection Type | RF; Socket Welded |
| Operation | Handwheel |
| Design Code | API 602/BS 5352 |
| Connection | ASNE B16.11 |
| Test & Inspection | API598 |
| Body Material | ASTM A182 F51+STL |
| Applicable Temp | -29℃~+425℃ |
| Application | Water, Oil, and Gas |
Features:
A compact but extremely sturdy design for high pressure-temperature service.
·Bolted or Welded Bonnet.
·Flanged, Threaded or Socket Weld Ends.
·Forged Carbon, Stainless or Alloy Steel Materials.
·Available in all trim configurations.
·Full Port option available for classes 150 - 1500.
Technical Drawing:
Witness Drawing:
Kelly Packaging:
Based on sufficient experience, we have developed complete packing specifications and procedures to ensure clear and safe transportation so that you can receive good and sound products. And this is also an important factor that we earn good reputation from our customers.
