EN 10213 1.0619 Globe Valve, DN100, PN25, BS EN 13709
Key Specifications / Features
DN100 PN25 globe valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.0619. It has the structural characteristics of a bolted cover and a straight-through type. Its connection mode is EN1092-1 B. And it has hand wheel operation mode.
- Hits: 39
- Categories: Globe Valve
- Tags: Cast Steel 1.0619 Globe Valve , EN 10213 Globe Valve , DN100 Globe Valve
Detail Information
DN100 PN25 Cast Steel Globe Valve EN 13709 1.0619 Handwheel
Features
1. The valve seat and disc usually adopt a metal-to-metal sealing structure, which has good sealing performance and can effectively prevent leakage;
2. Due to the excellent design of materials and structures, it can operate stably for a long time, reducing the failure rate and maintenance costs of the system.

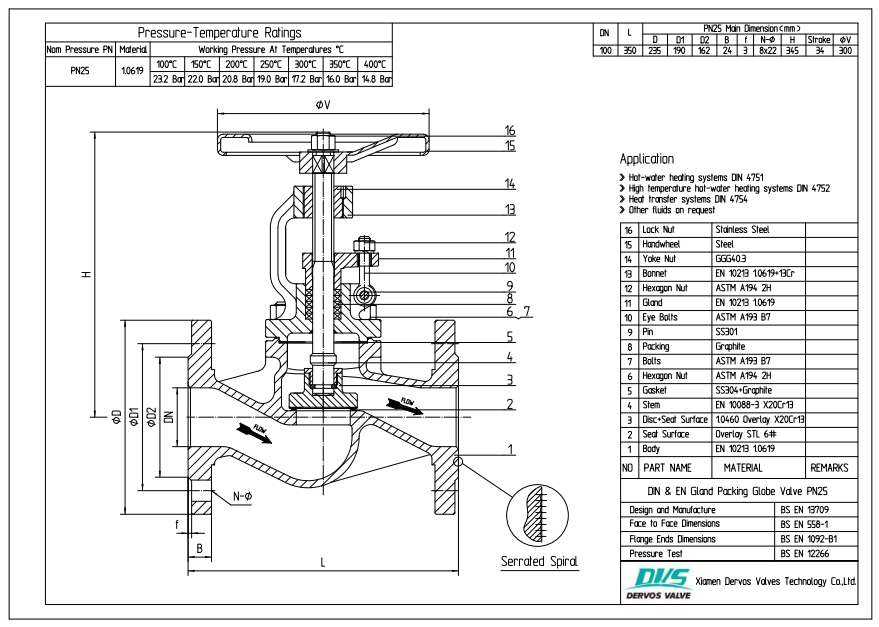

Technical Drawing

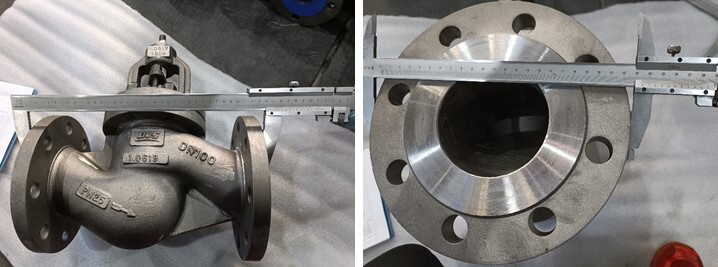

Dimension Checking

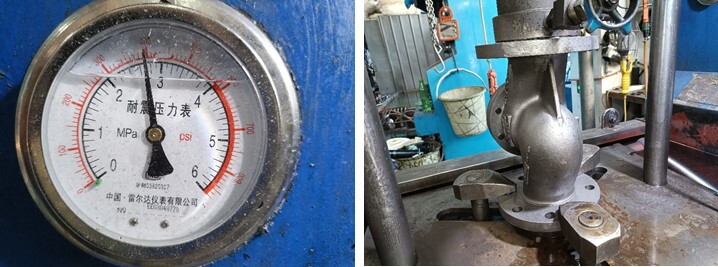

Pressure Testing

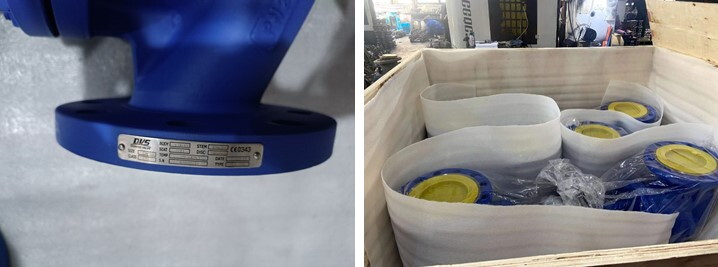

Nameplate & Packing

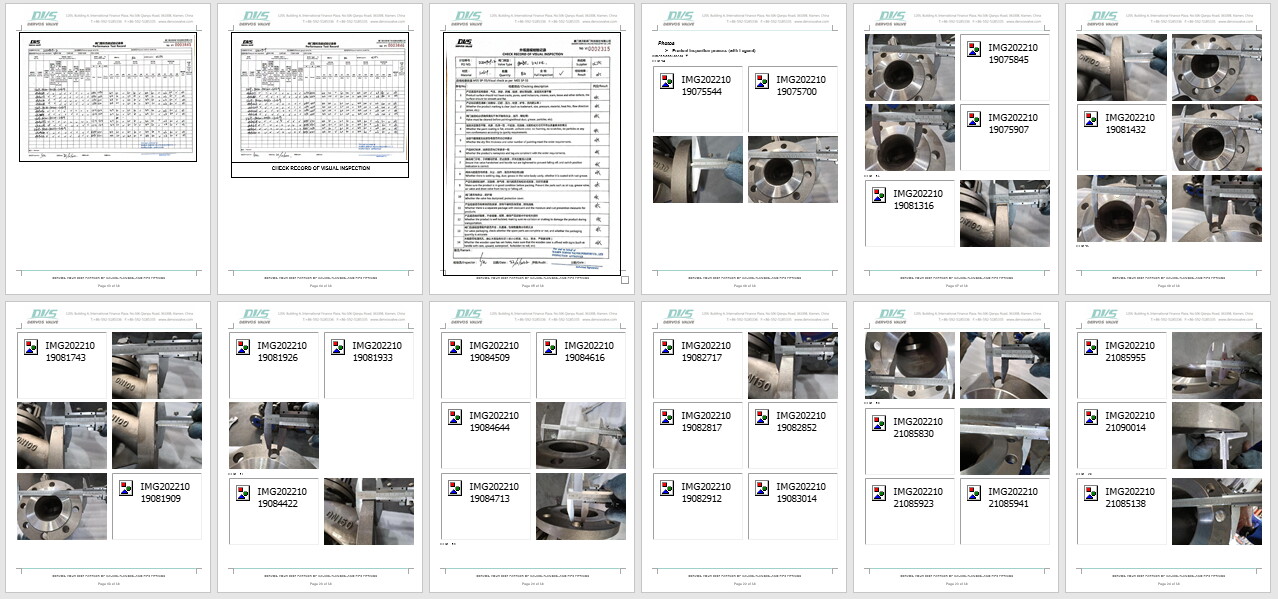

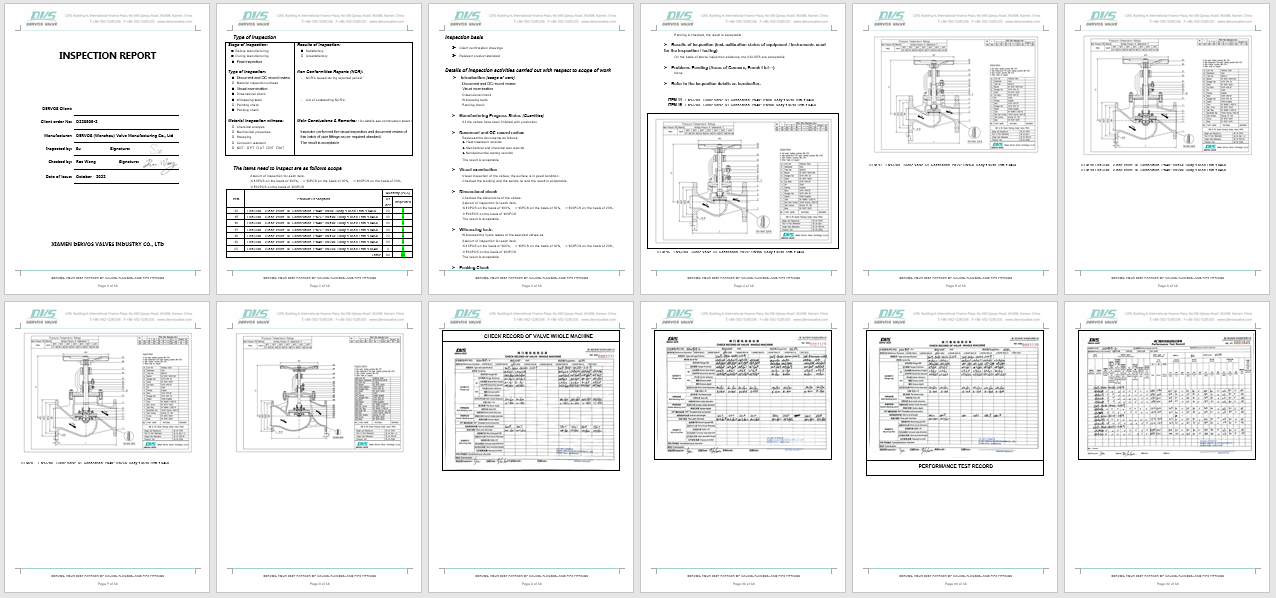

Inspection report
Features
1. The valve seat and disc usually adopt a metal-to-metal sealing structure, which has good sealing performance and can effectively prevent leakage;
2. Due to the excellent design of materials and structures, it can operate stably for a long time, reducing the failure rate and maintenance costs of the system.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
