Key Specifications / Features
4 Inch 150 LB floating ball valve is made according to API 6D standard. The valve body is made of A351-CF8M. It has the structural characteristics of split type, side-mounted, floating ball, and full bore. Its connection mode is RF. It has a lever operation mode.
- Hits: 1
- Categories: Floating Ball Valve
- Tags: ASTM A351 CF8M Ball Valve , 4 Inch Ball Valve , 150 LB Ball Valve
Detail Information
4 Inch 150 LB Floating Ball Valve RF CF8M API 6D Lever
Features
1. Due to the floating design of the sphere, floating ball valves are usually able to provide more precise flow control;
2. The most significant feature of a floating ball valve is that the ball inside the valve body can float. This sphere can float up and down as the fluid changes, adjusting the opening and closing degrees of the valve.

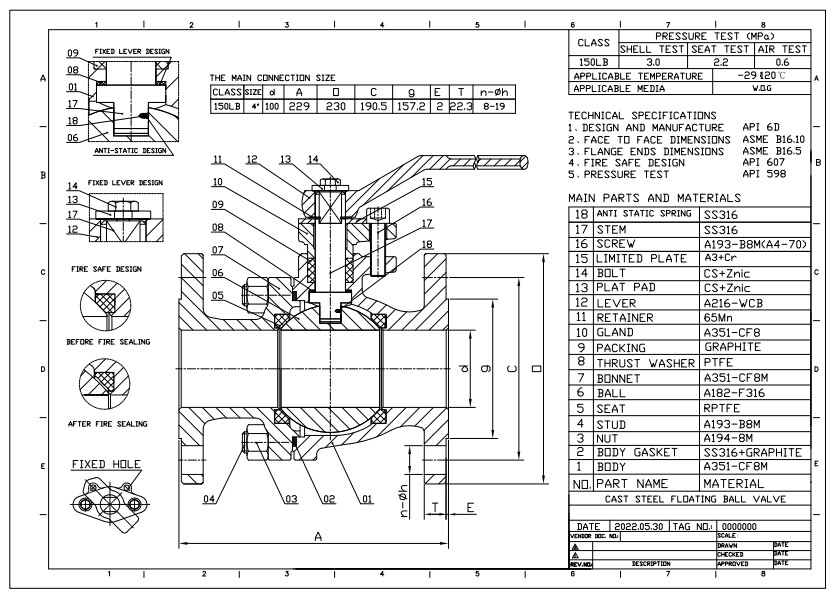

Technical Drawing

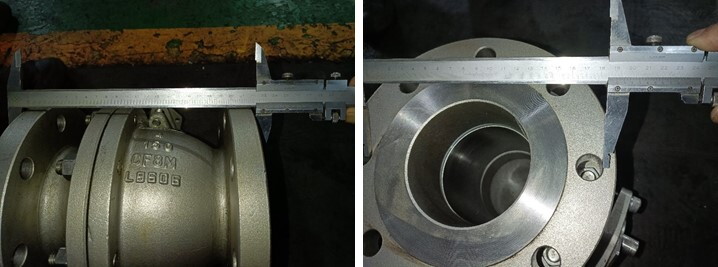

Dimension Checking

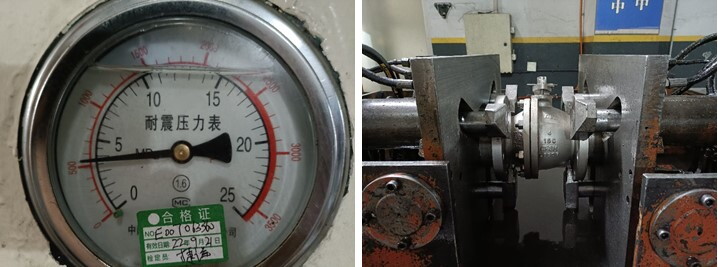

Pressure Testing

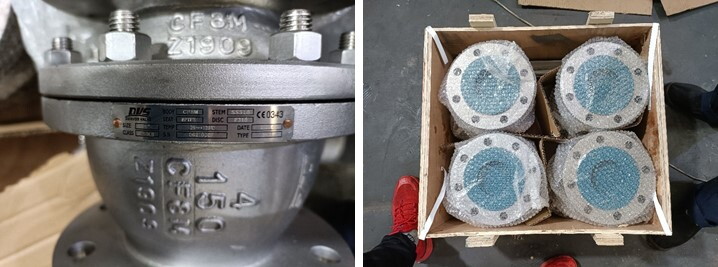

Nameplate & Packing

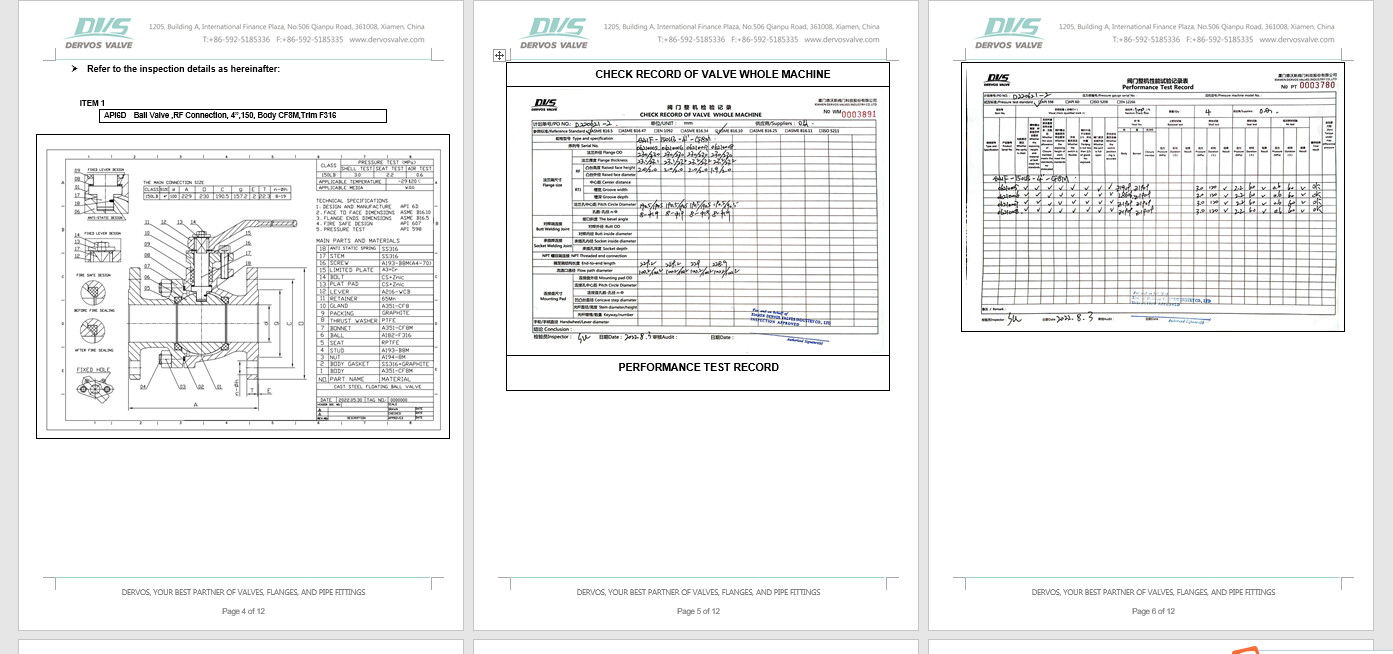

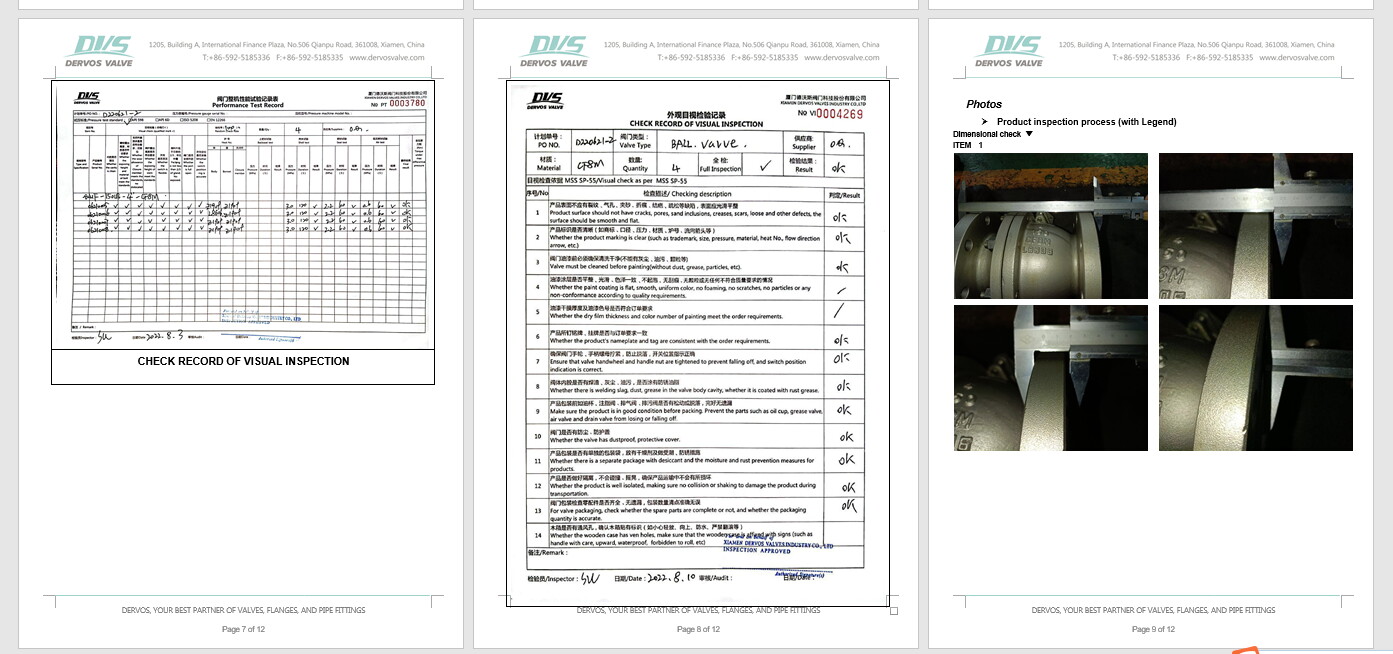

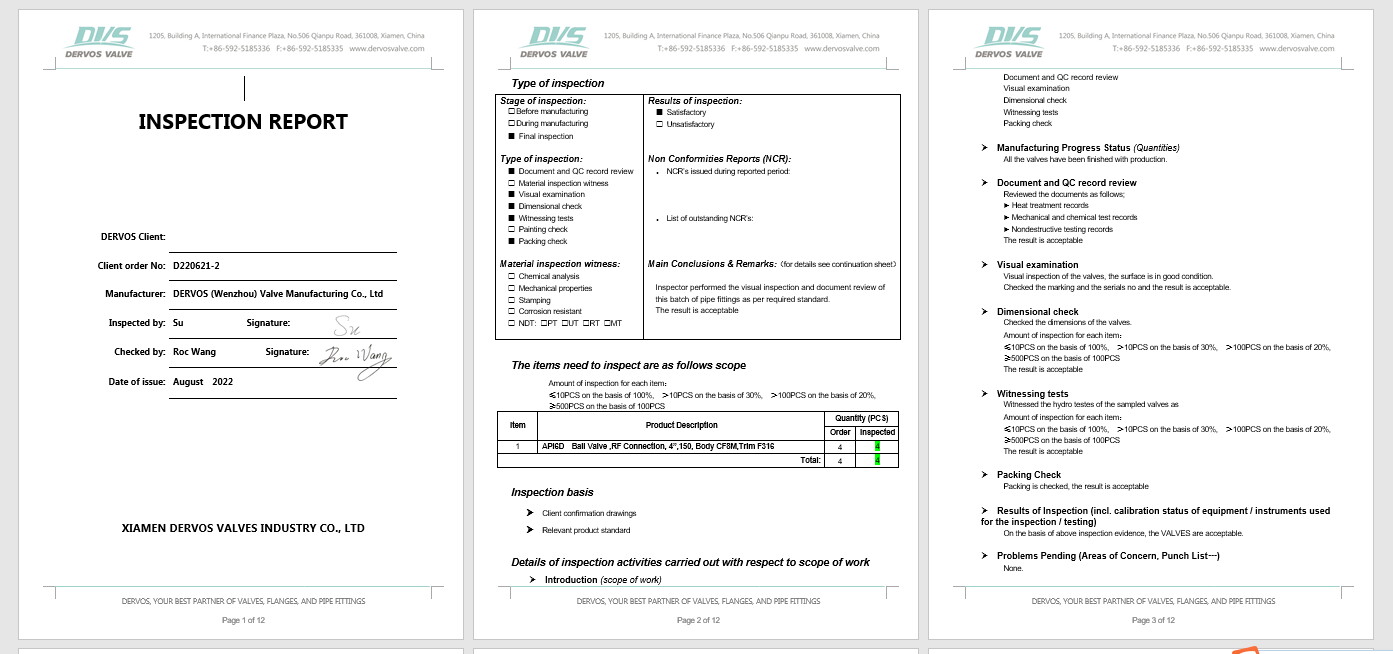

Inspection report
Features
1. Due to the floating design of the sphere, floating ball valves are usually able to provide more precise flow control;
2. The most significant feature of a floating ball valve is that the ball inside the valve body can float. This sphere can float up and down as the fluid changes, adjusting the opening and closing degrees of the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
