3 Pieces Floating Ball Valve, 1 Inch, DN25, PN63, WCB, NPT
Key Specifications / Features
1 Inch PN63 floating valve is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M. It has the structural characteristics of 3-piece, full bore. Its connection mode is NPT. And it has a lever operation mode.
- Hits: 4
- Categories: Floating Ball Valve
- Tags: 3 PC Ball Valve , 1 Inch Ball Valve , DN25 Ball Valve
Detail Information
3 Pieces Floating Ball Valve 1 Inch PN63 NPT WCB Lever
Features
1. The surface is smooth, and the resistance of fluid passing through is relatively small, which can provide a large flow rate;
2. The structural design of floating ball valves makes them suitable for high-pressure and high-temperature working environments, and can withstand large pressures and temperatures.

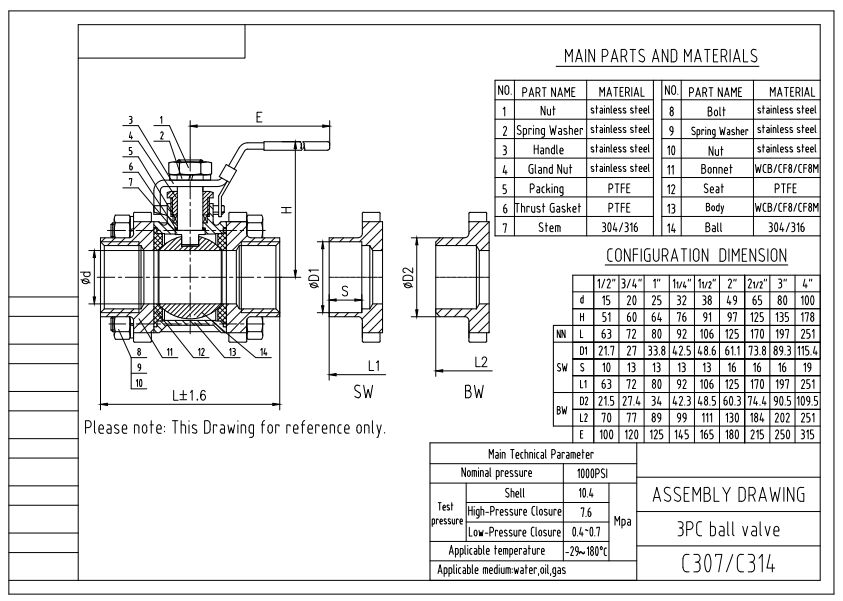

Technical Drawing

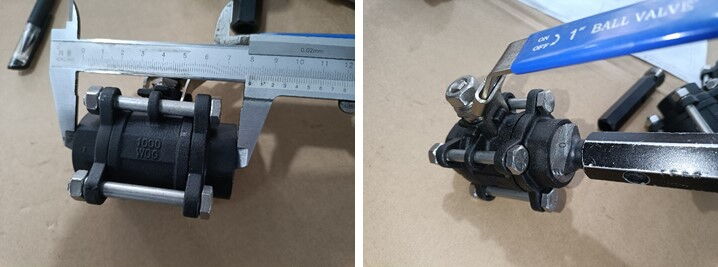

Dimension Checking
Pressure Testing

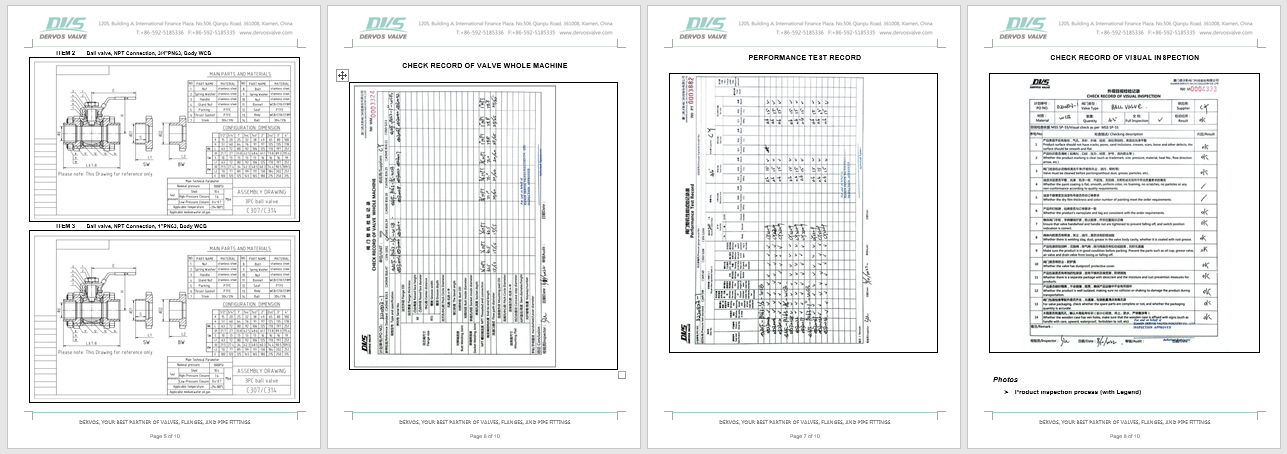

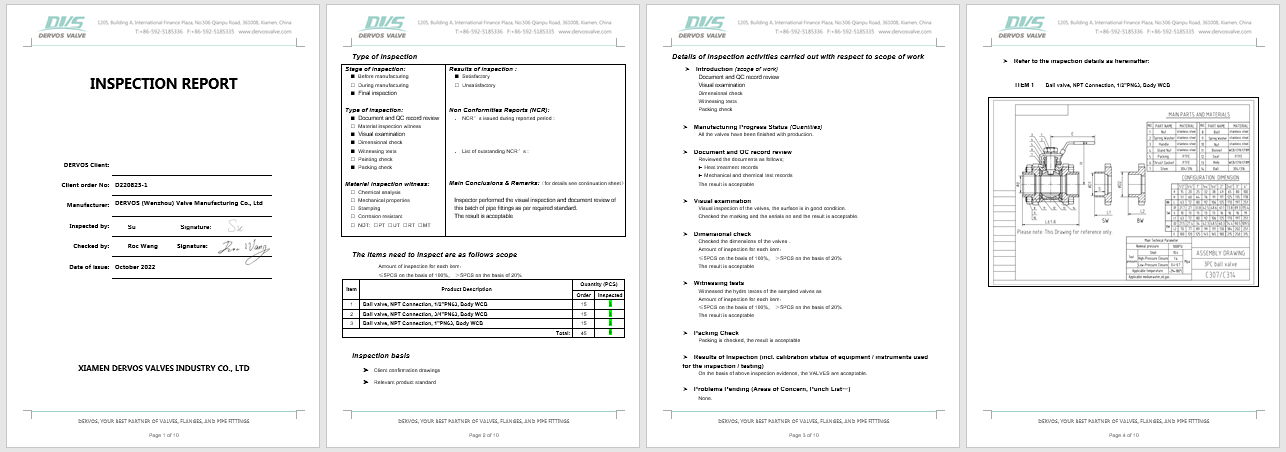

Inspection report
Features
1. The surface is smooth, and the resistance of fluid passing through is relatively small, which can provide a large flow rate;
2. The structural design of floating ball valves makes them suitable for high-pressure and high-temperature working environments, and can withstand large pressures and temperatures.
Technical Drawing
Dimension Checking
Pressure Testing
Inspection report
