ASTM A217 WC6 Dual Plate Check Valve, Wafer, 8 Inch, 600 LB
Key Specifications / Features
We Provide ASTM A217 WC6 Dual Plate Check Valves, Dual Plate Wafer Type Check Valves, of ASTM A217 WC6, 8 Inch, Class 600 LB, RF, API 594.
- Hits: 5
- Categories: Wafer Check Valve
- Tags: ASTM A217 WC6 Check Valve , Wafer Check Valve , 8 Inch Check Valve
Detail Information
8" 600 LB Dual Plate Wafer Type Check Valve API 594
Introduction
8" 600 LB dual plate wafer type check valve is made according to API 594 standard. The valve body is made of A217 WC6. It has the structural characteristics of a dual plate. It is a built-in check valve. It has wafer type RF connection mode.
Features
1. The valve disc closing stroke of the dual plate wafer type check valve is short, and the valve is spring loaded, which can significantly reduce the water hammer phenomenon;
2. Short structure length, convenient installation, reliable sealing and wide application range.

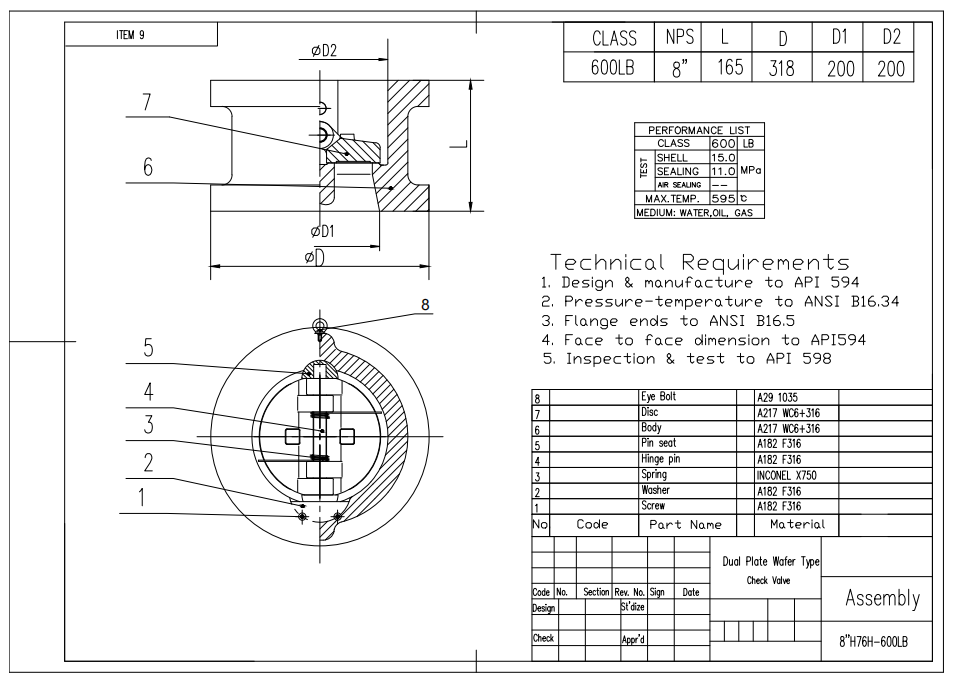

Technical Drawing

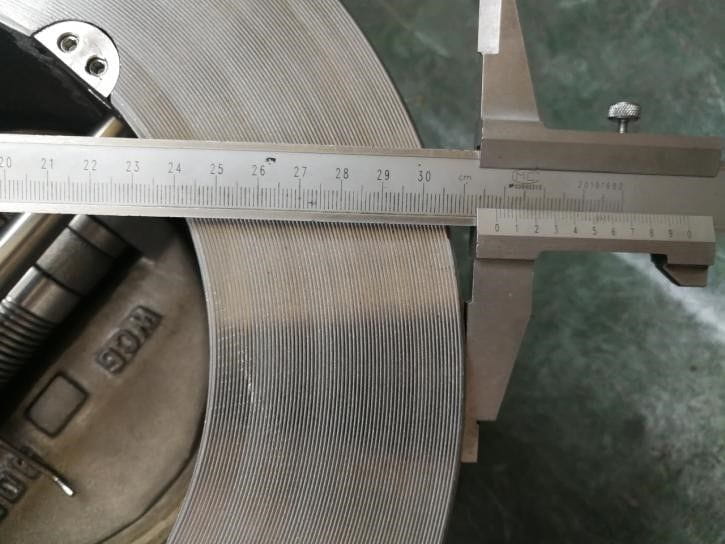

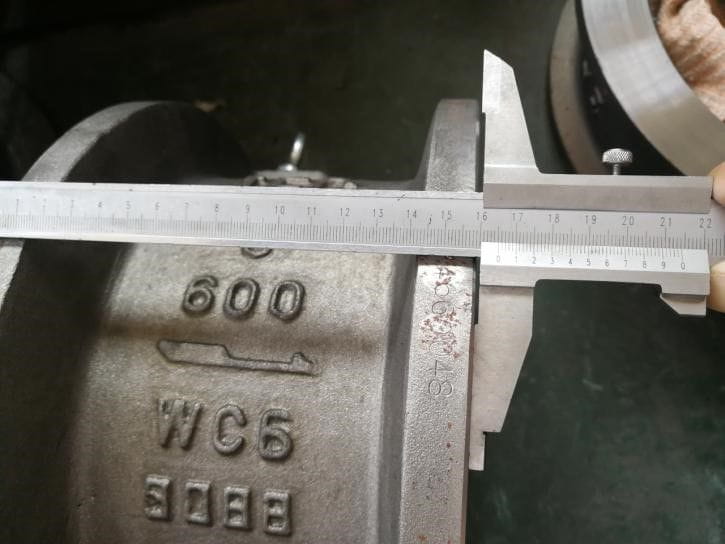

Dimension Checking

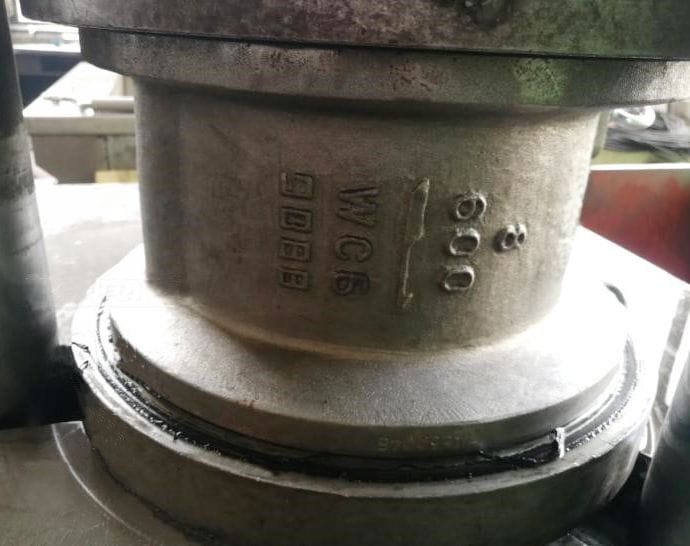

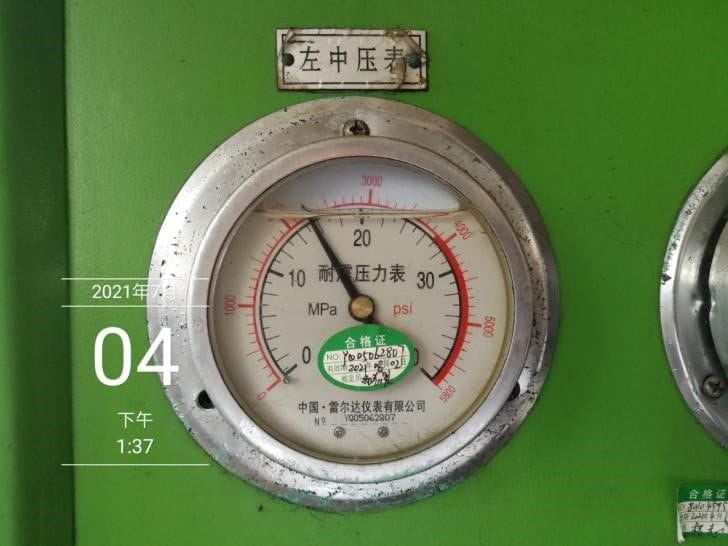

Pressure Testing

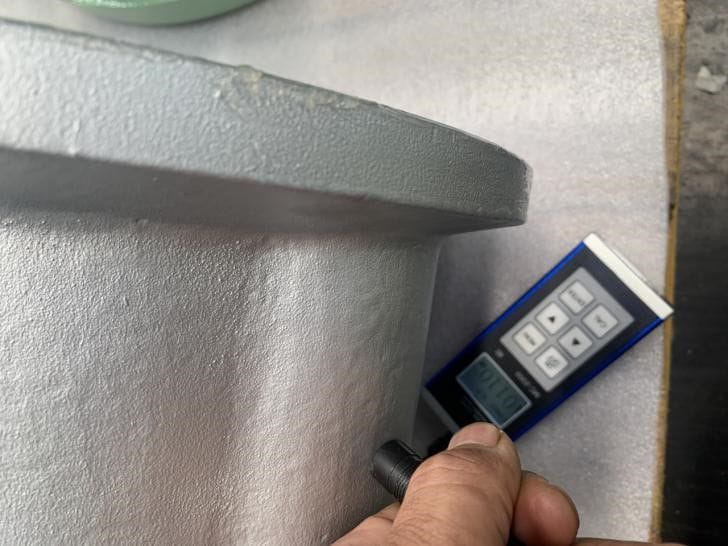

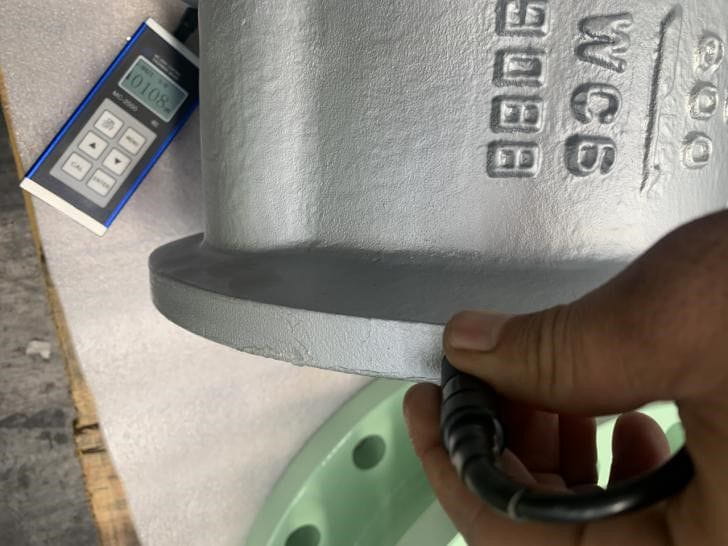

Painting

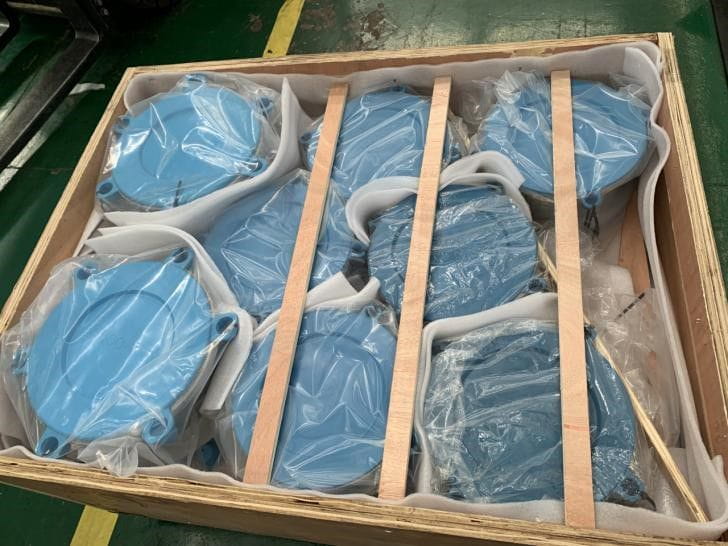

Nameplate & Packing

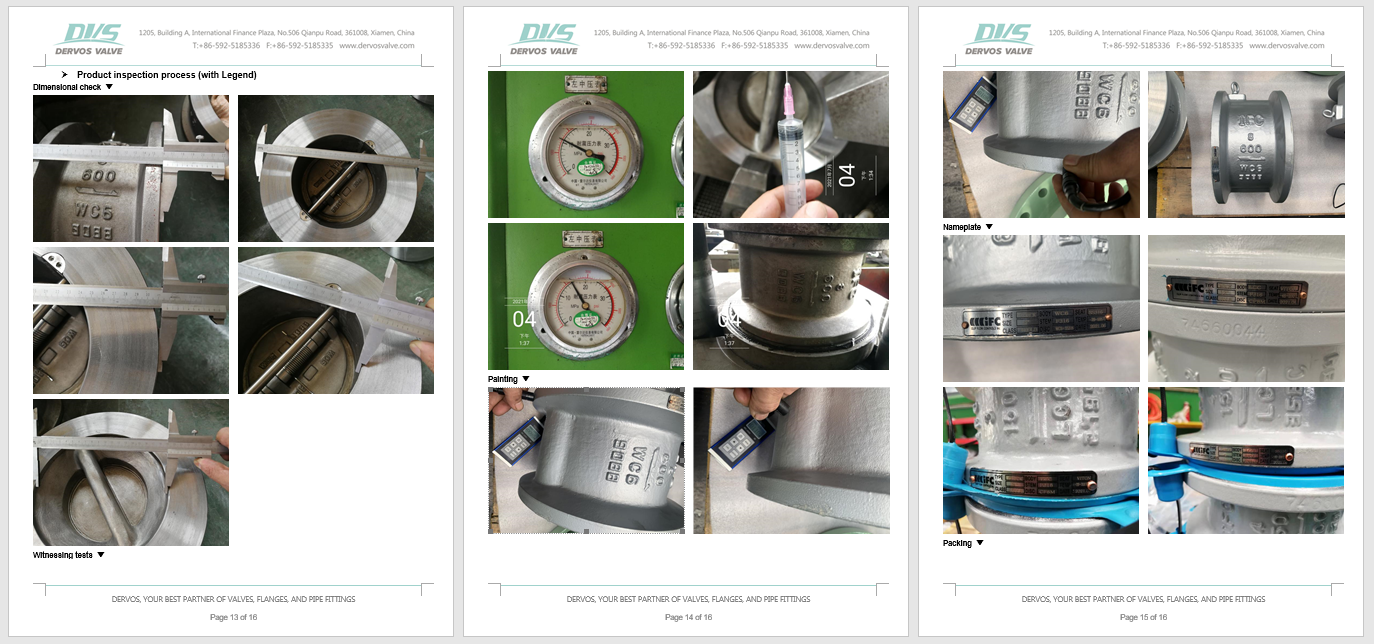

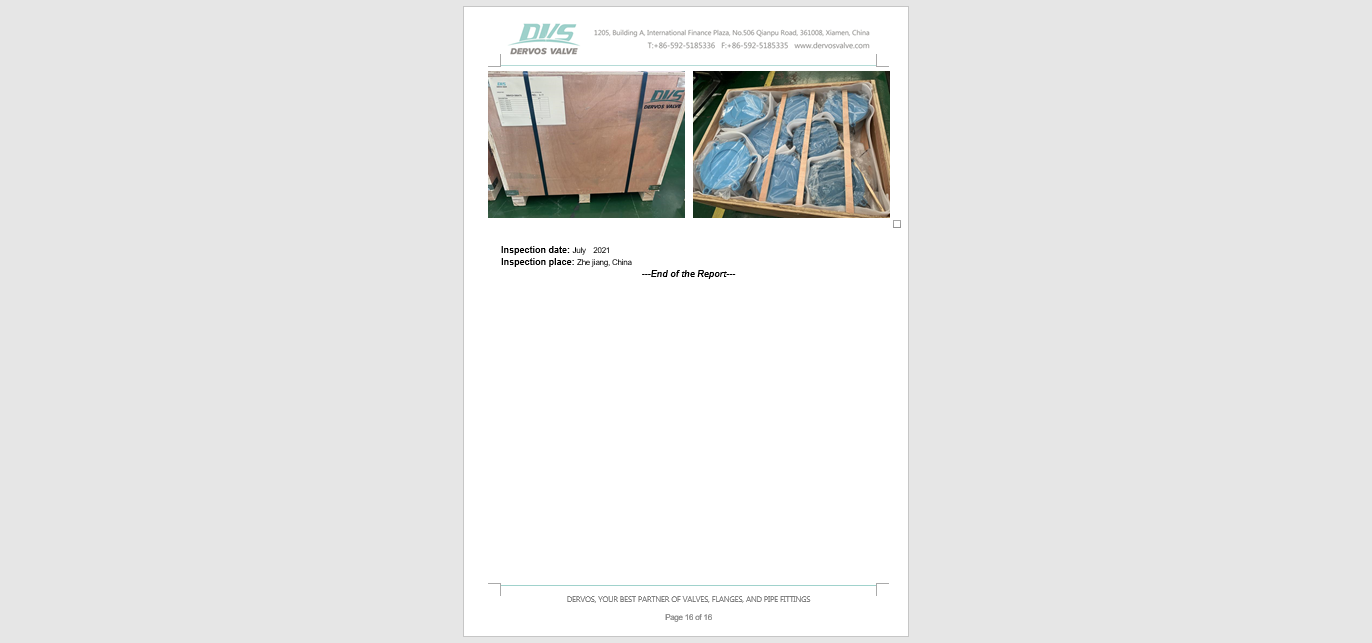

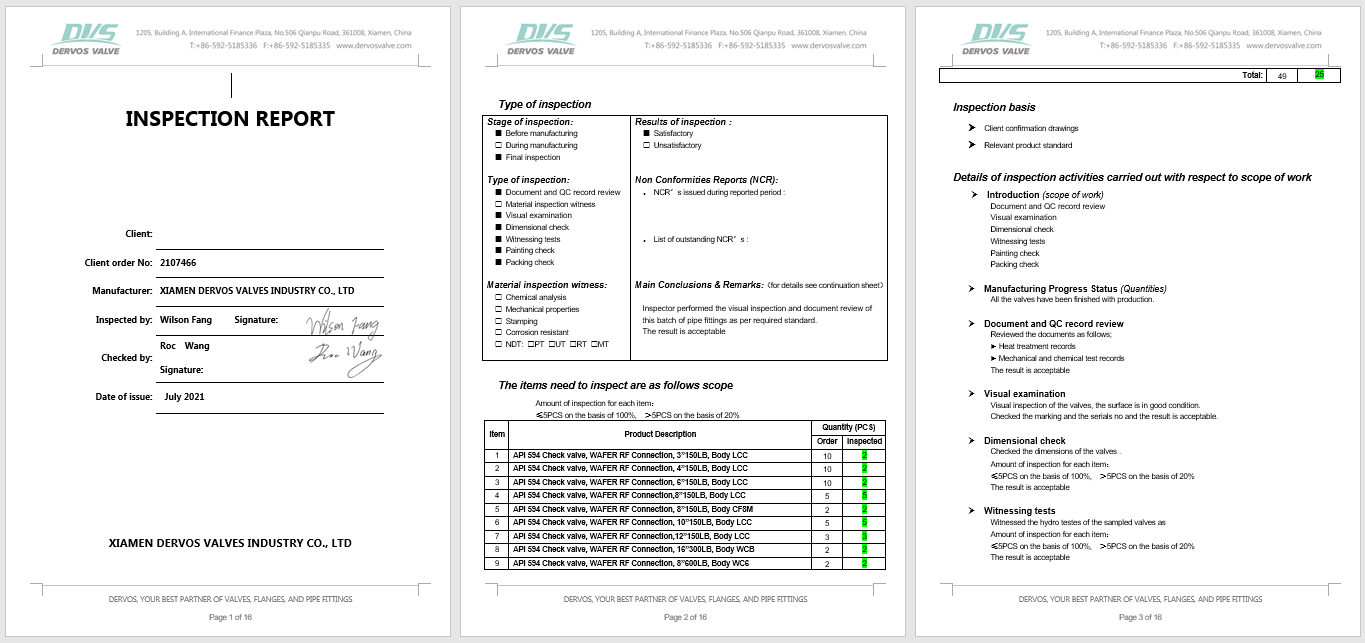

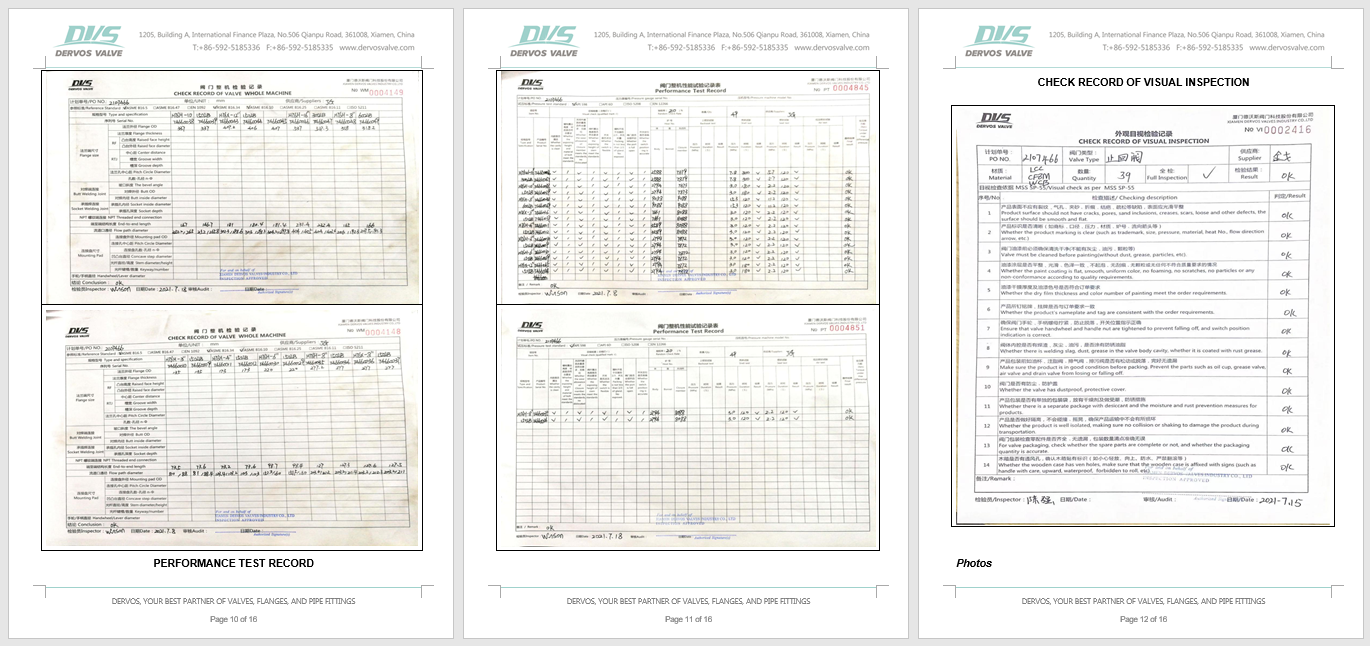

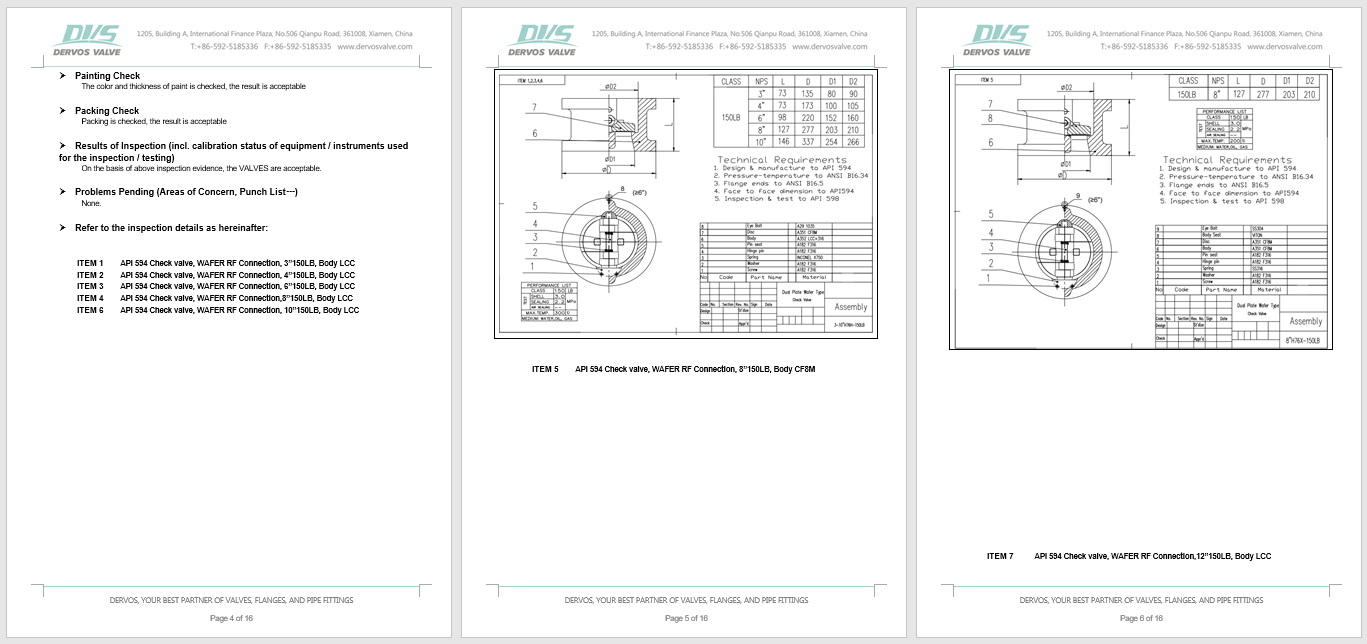

Inspection report
Introduction
8" 600 LB dual plate wafer type check valve is made according to API 594 standard. The valve body is made of A217 WC6. It has the structural characteristics of a dual plate. It is a built-in check valve. It has wafer type RF connection mode.
Features
1. The valve disc closing stroke of the dual plate wafer type check valve is short, and the valve is spring loaded, which can significantly reduce the water hammer phenomenon;
2. Short structure length, convenient installation, reliable sealing and wide application range.
Technical Drawing
Dimension Checking
 |  |
Pressure Testing
 |  |
Painting
 |  |
Nameplate & Packing
 |  |
Inspection report
