ASTM A216 WCB Lift Check Valve, ASME B16.34, 4 Inch, 300 LB
Key Specifications / Features
4 Inch 300 LB check valve is made according to the ASME B16.34 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of lift type and spring. Its connection mode is RF.
- Hits: 14
- Categories: Lift Check Valve
- Tags: ASTM A216 WCB Check Valve , ASME B16.34 Check Valve , 4 Inch Check Valve
Detail Information
API 598 4" 300LB Cast Steel Lift Check Valve BC RF WCB
Features
1. Small opening range, with the ability to quickly close;
2. Small size, lightweight, and good processing technology.

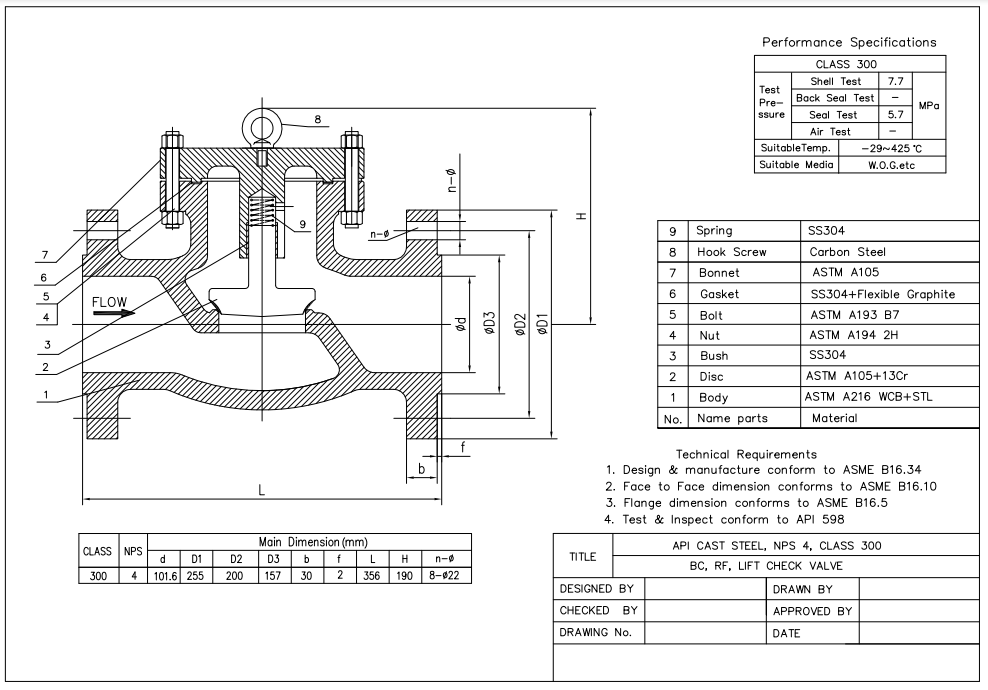

Technical Drawing

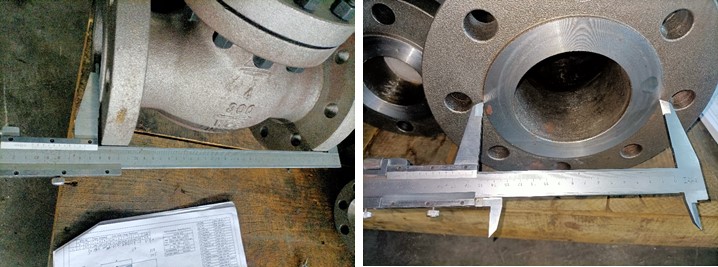

Dimension Checking

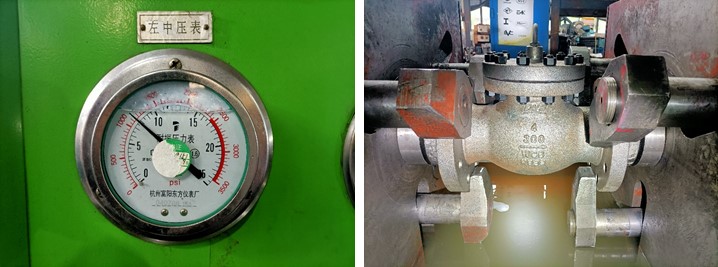

Pressure Testing

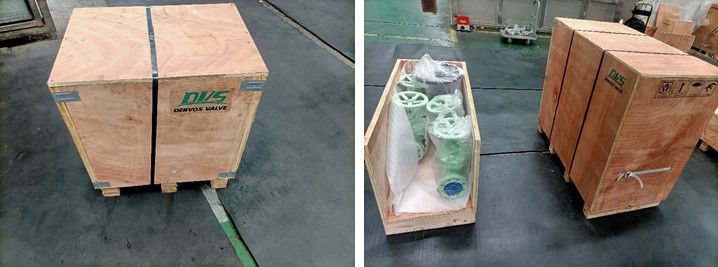

Packing

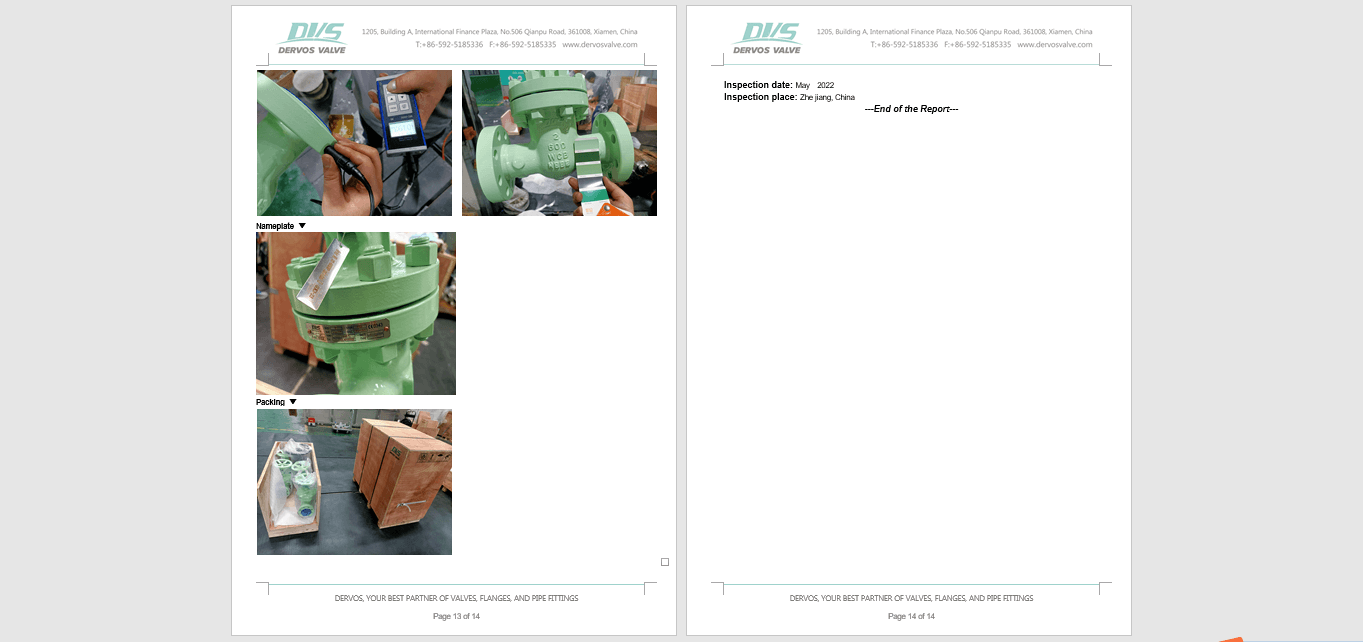

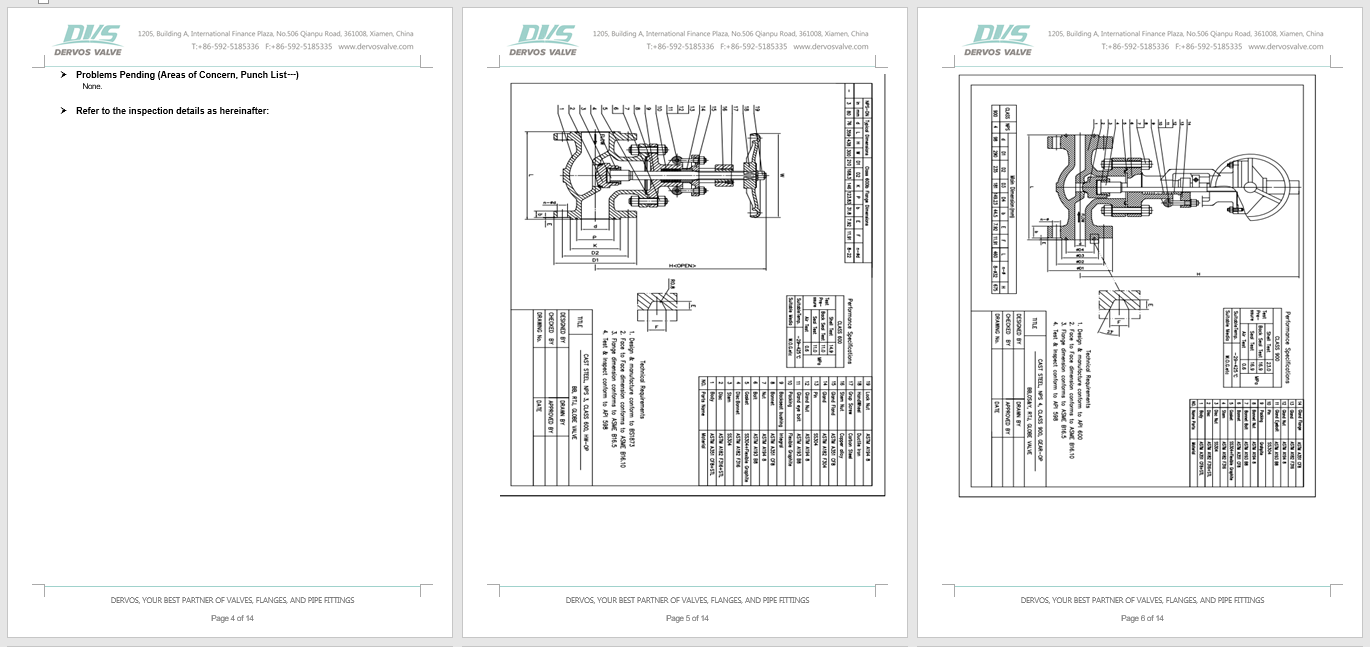

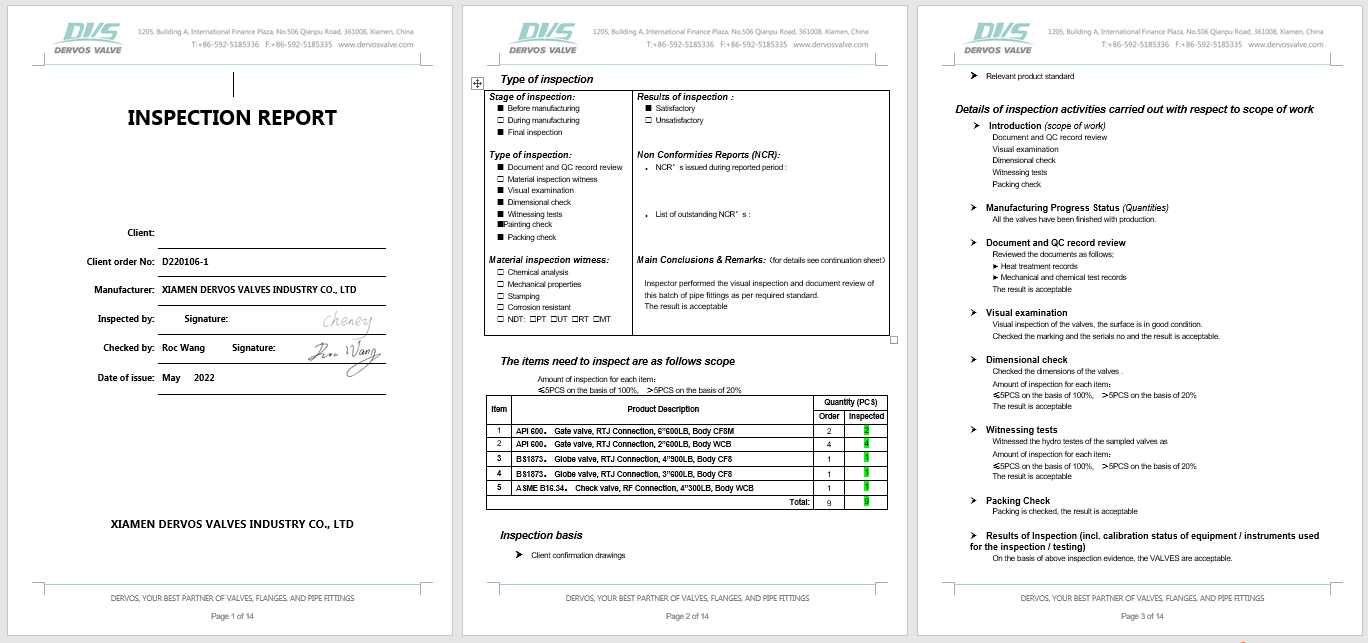

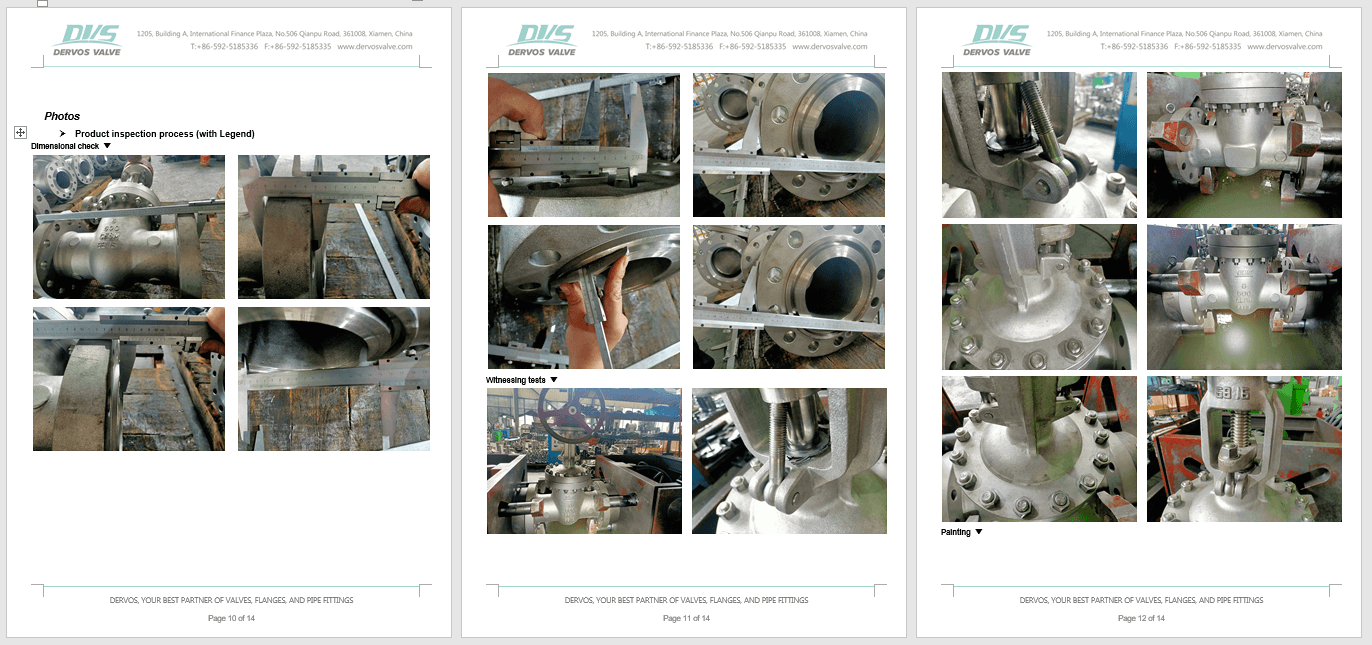

Inspection report
Features
1. Small opening range, with the ability to quickly close;
2. Small size, lightweight, and good processing technology.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
