ASTM A182 F11 Globe Valve, API 602, 1500 LB, 1 Inch, BW
Key Specifications / Features
1 Inch 1500 LB globe valve is made according to API 602 standard. The valve body is made of Forged Steel ASTM A182 F11. It has the structural characteristics of Through, plug cap, plug disc, standard flow and body valve seat. Its connection mode is BW. And it has hand wheel operation mode.
- Hits: 16
- Categories: Forged Globe Valve
- Tags: 1 Inch Globe Valve , Class 1500 LB Globe Valve , BW Globe Valve
Detail Information
API 602 Forged Steel Globe Valve
Product Description
Features
1. The manufacturing process is quite good, and maintenance is convenient;
2. Small fluid resistance, large applicable pressure and temperature range;
3. The flow direction of the medium is unrestricted and the sealing performance is good.

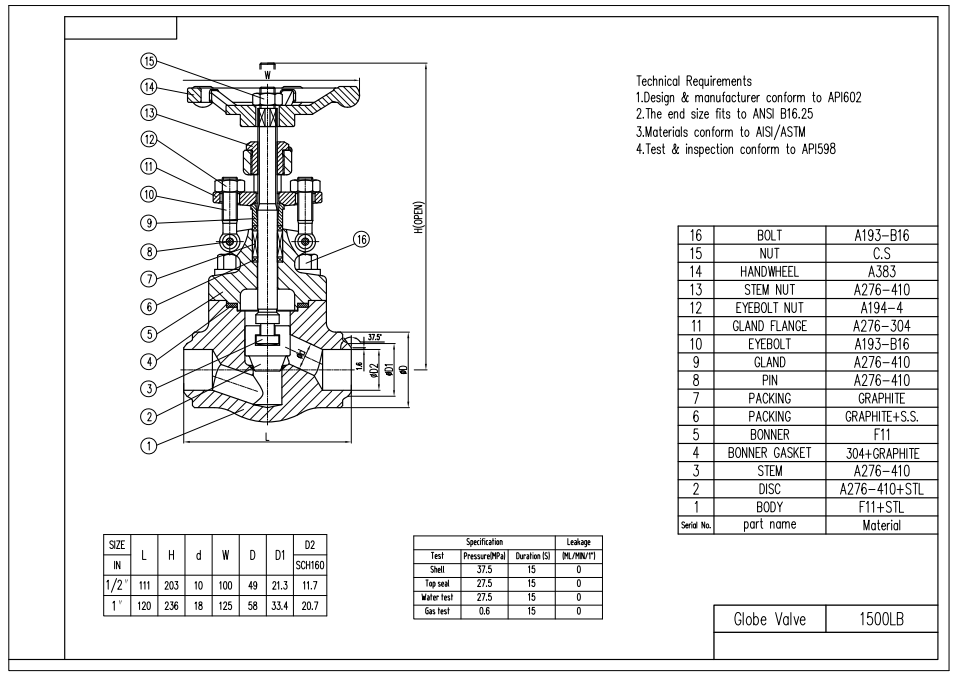

Technical Drawing

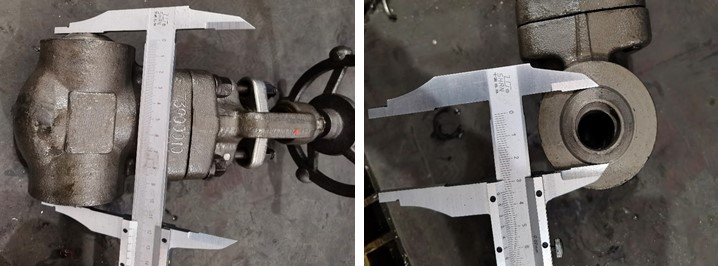

Dimension Checking

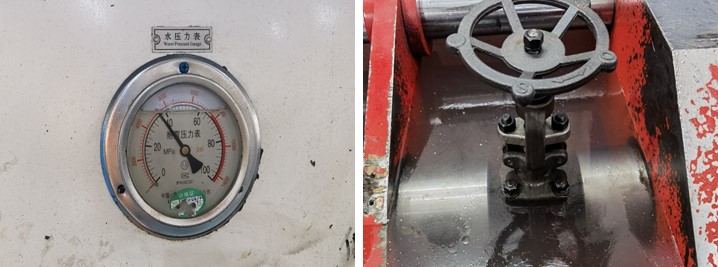

Pressure Testing

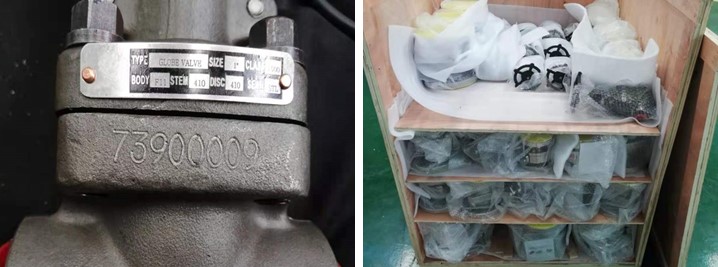

Nameplate & Packing

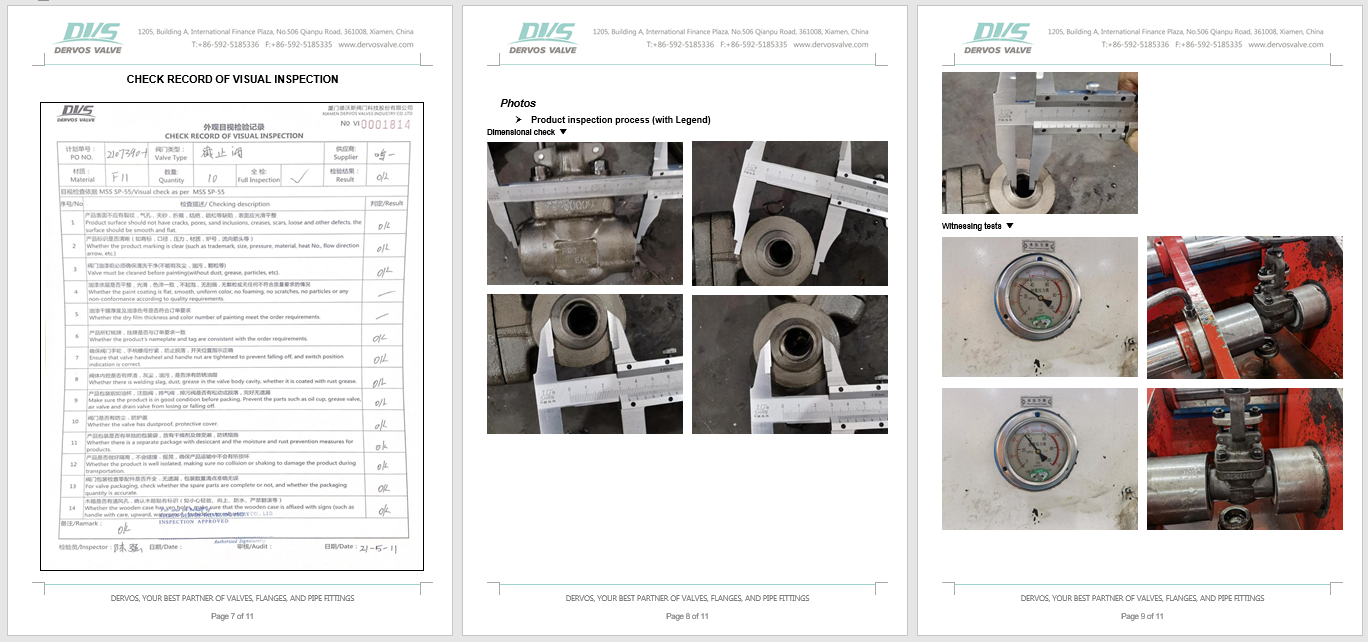

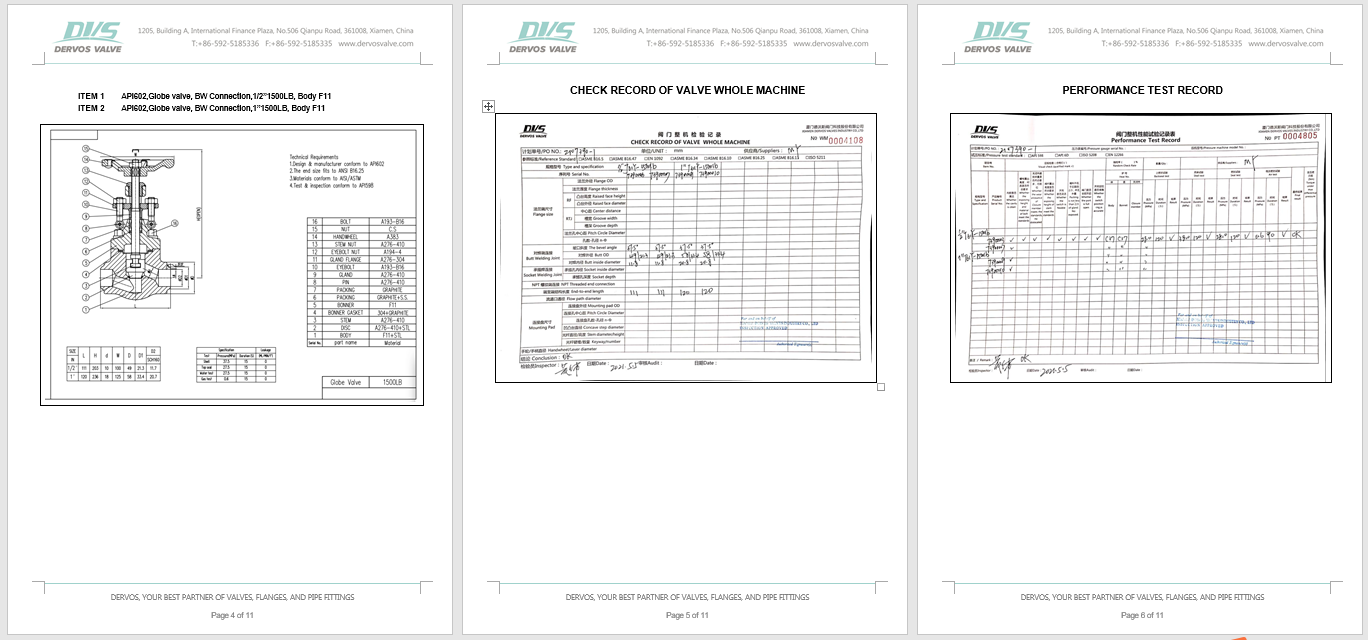

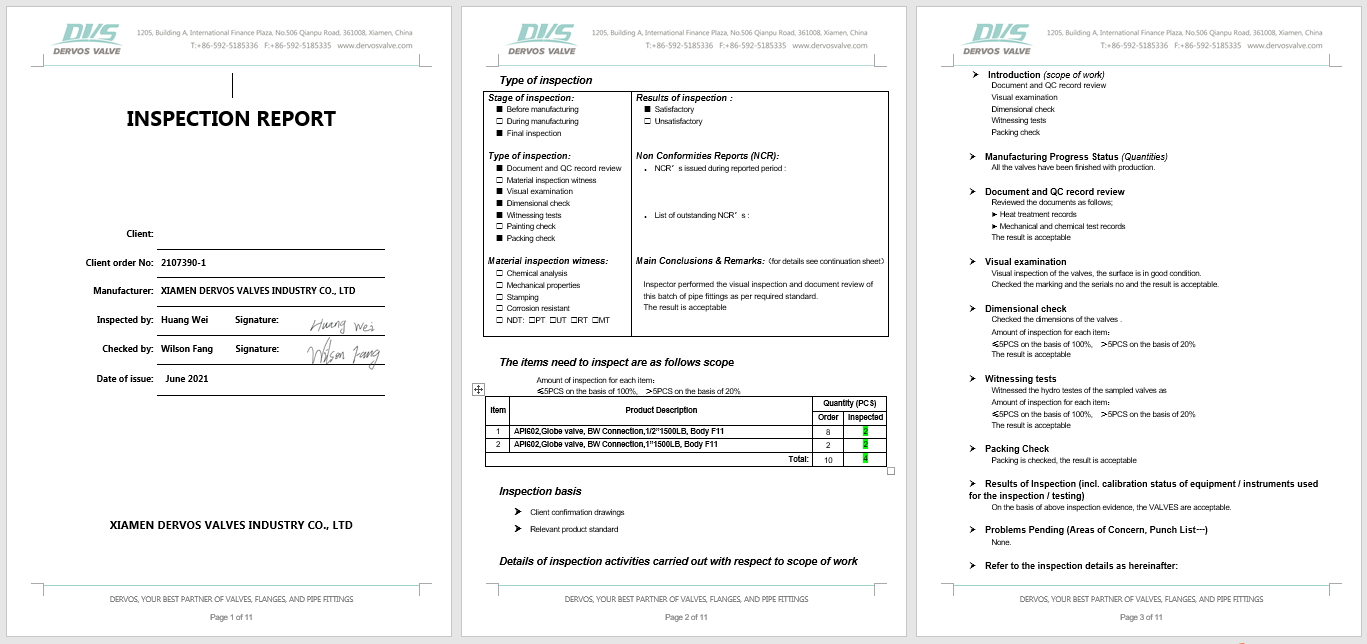

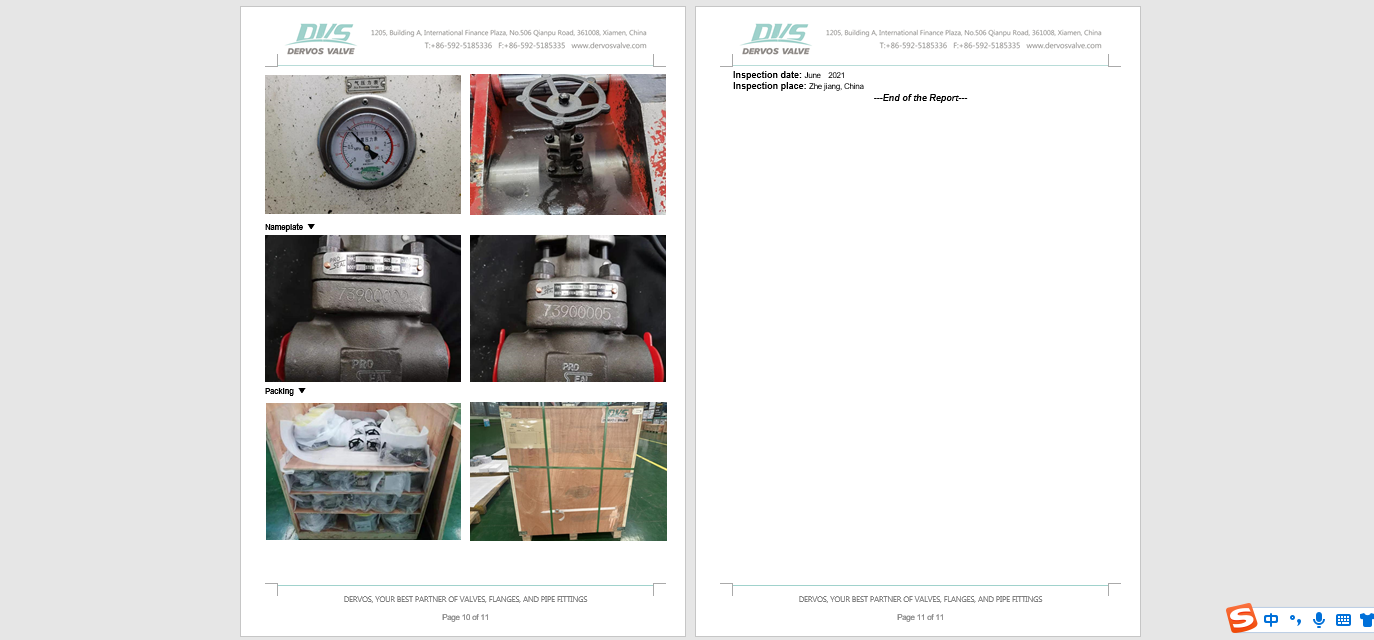

Inspection report
Product Description
| Type | Globe Valve |
| Size | 1 Inch |
| Pressure | 1500 LB |
| Connection | BW |
| Operation | Hand Wheel Operation |
| Body Material | F11+STL |
| Design Norm | API 602 |
| End Size | ANSI B16.25 |
| Materials | AISI/ASTM |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Features
1. The manufacturing process is quite good, and maintenance is convenient;
2. Small fluid resistance, large applicable pressure and temperature range;
3. The flow direction of the medium is unrestricted and the sealing performance is good.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
