ASTM A105N Lift Check Valve, 1/2 Inch, 800 LB, API 602, SW
Key Specifications / Features
1/2 Inch 800 LB lift check valve is made according to API 602 standard. The valve body is made of ASTM A105N + STL. It has the structural characteristics of lift type. Its connection mode is SW.
- Hits: 8
- Categories: Lift Check Valve
- Tags: ASTM A105N Check Valve , 1/2 Inch Check Valve , Class 800 LB Check Valve
Detail Information
1/2 Inch 800 LB Lift Check Valve SW A105N API 602
Features
1. It can reduce the occurrence of water hammer and protect the equipment and pipelines of the pipeline system from impact damage;
2. When the medium undergoes backflow, the lift check valve can quickly close, preventing the medium from flowing back and protecting the safe operation of the pipeline system.

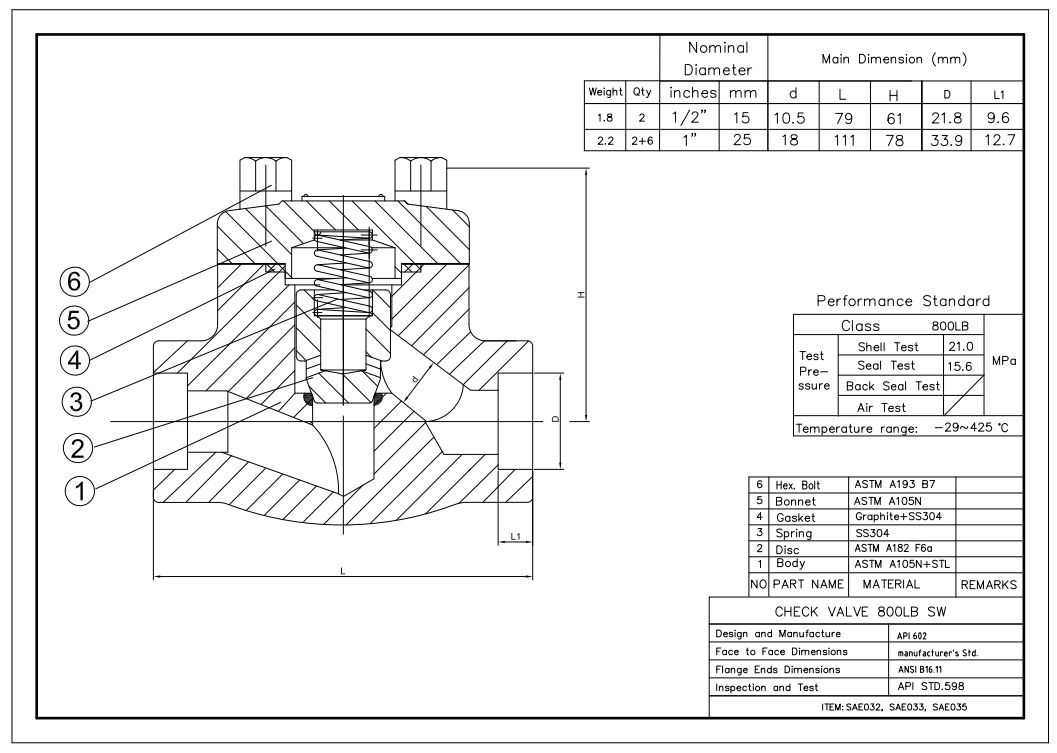

Technical Drawing

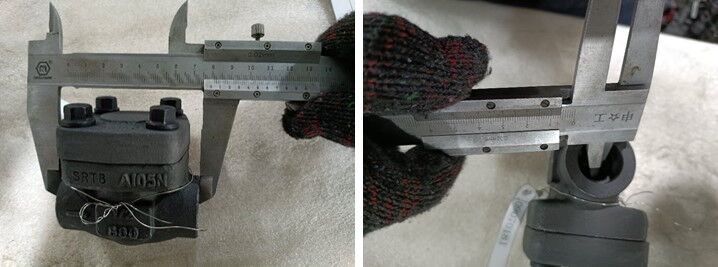

Dimension Checking

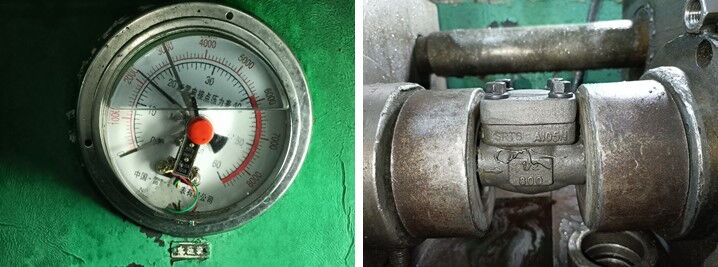

Pressure Testing

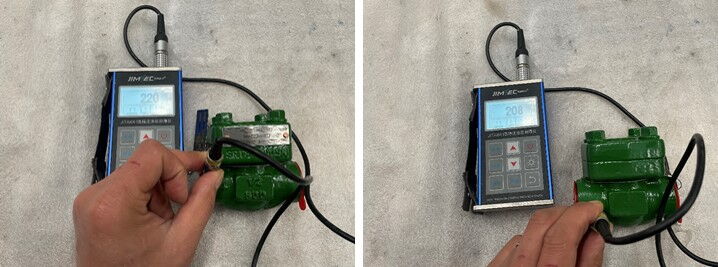

Painting

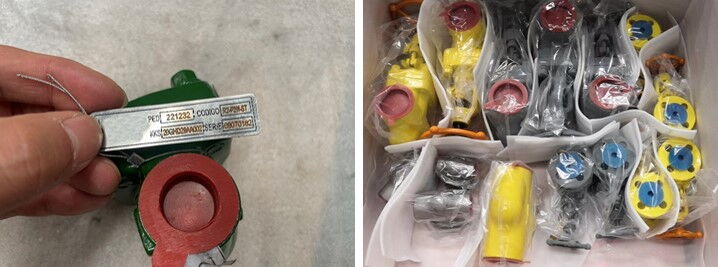

Nameplate & Packing

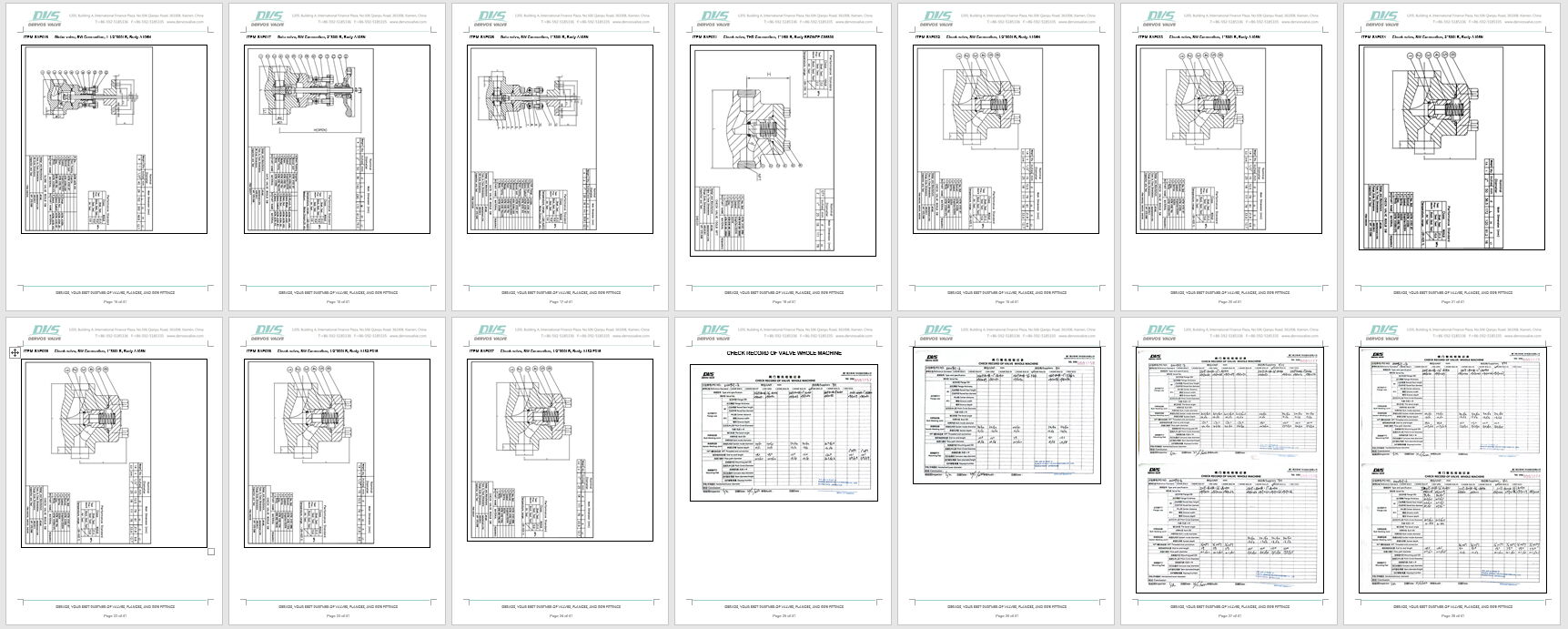

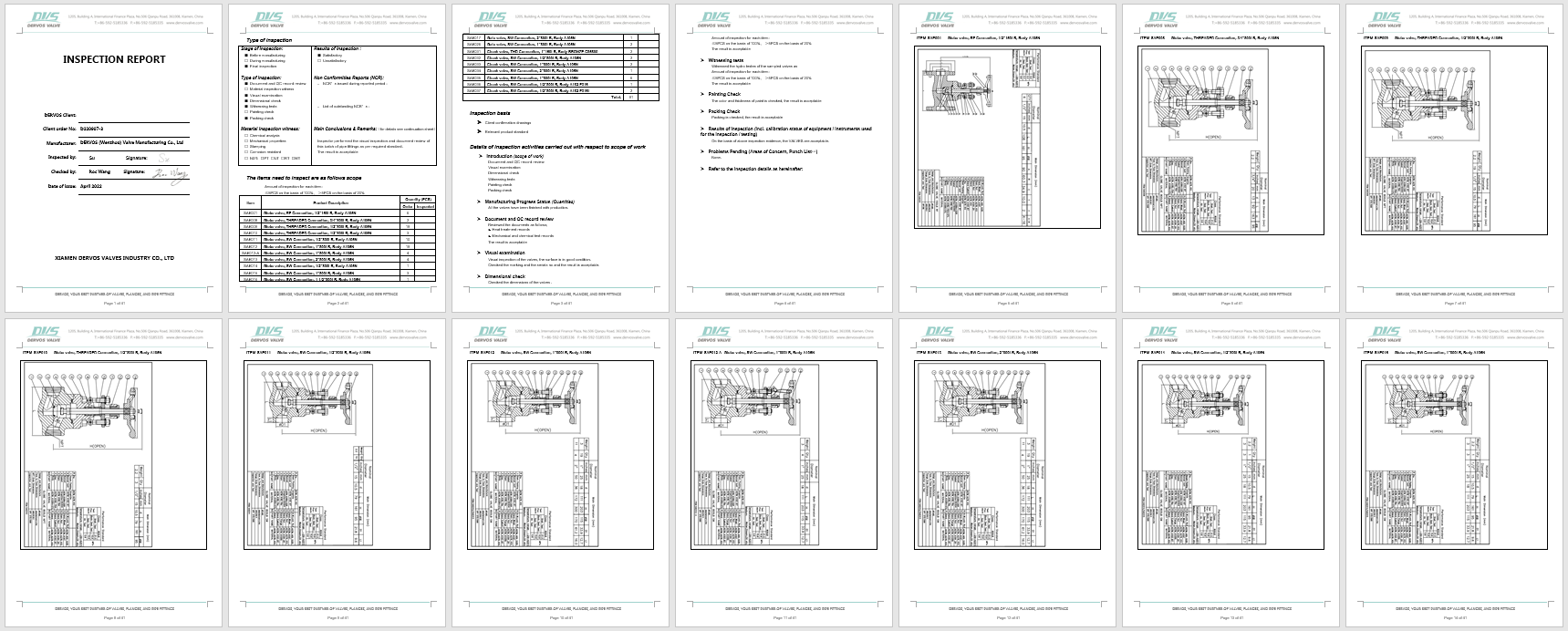

Inspection report
Features
1. It can reduce the occurrence of water hammer and protect the equipment and pipelines of the pipeline system from impact damage;
2. When the medium undergoes backflow, the lift check valve can quickly close, preventing the medium from flowing back and protecting the safe operation of the pipeline system.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
