API 609 Triple Eccentric Butterfly Valve, 4 IN, CL 150, CF8
Key Specifications / Features
The 4 Inch 150 LB butterfly valve is manufactured in accordance with the API 609 standard. Featuring a ASTM A351 CF8 valve body, this valve boasts a triple eccentric design for enhanced performance. The connection type is wafer, and it operates using a worm gear mechanism, ensuring precise and reliable control in various applications.
- Model No.: Kelly-BTV-20240802-05
- Hits: 4
- Categories: Butterfly Valve
- Tags: API 609 Butterfly Valve , ASTM A351 CF8 Butterfly Valve , Triple Eccentric Butterfly Valve
Detail Information
On this page

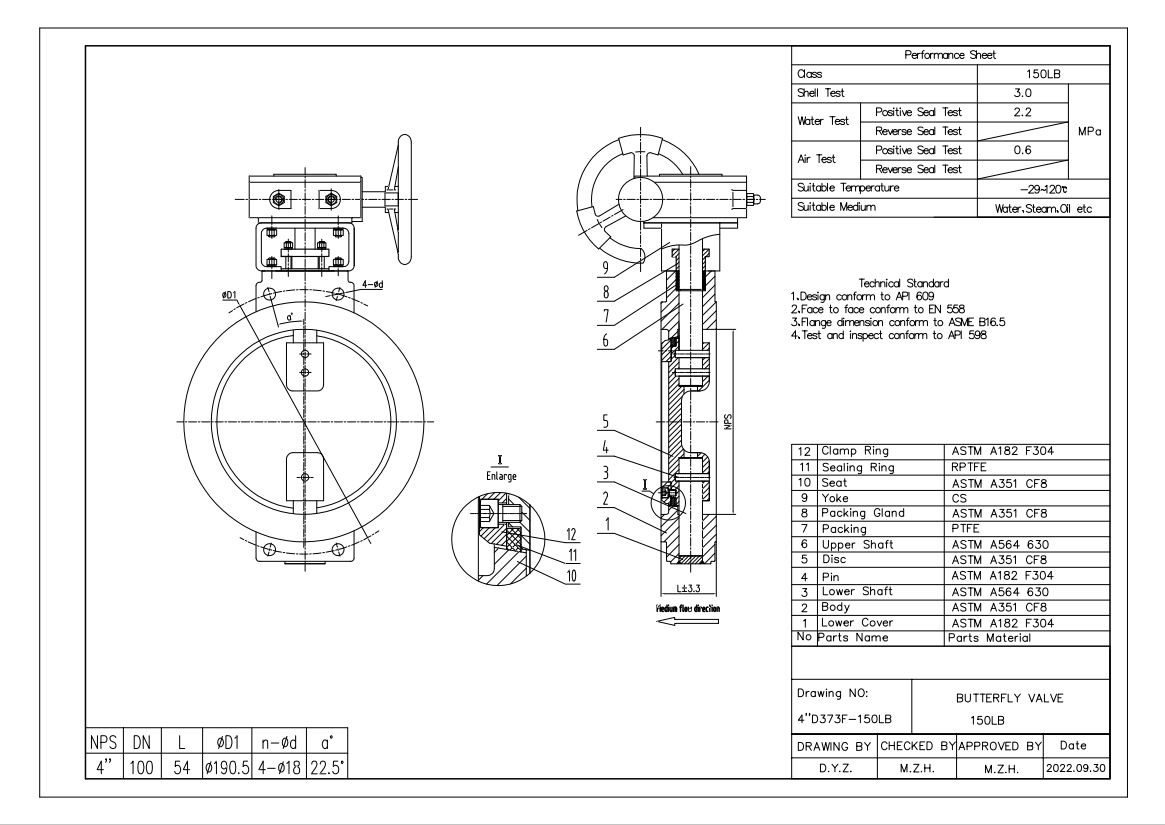

Triple Eccentric Butterfly Valve, API 609, ASTM A351 CF8, 4 Inch/DN100, 150 LB, Wafer Connection.
1. Butterfly valves are known for their lightweight and compact construction, which makes them easy to install and maintain.
2. A characteristic of butterfly valves is that they can be fully opened or closed with a simple quarter-turn rotation of the handle or actuator.
2. A characteristic of butterfly valves is that they can be fully opened or closed with a simple quarter-turn rotation of the handle or actuator.
