1.4308 Lift Check Valve, BS EN 13709, DN50, PN40
Key Specifications / Features
DN50 PN40 check valve is made according to BS EN 13709 standard. The valve body is made of EN 10213 1.4308. It has the structural characteristics of lifting type with spring. Its connection mode is EN 1092-1 B.
- Hits: 8
- Categories: Lift Check Valve
- Tags: EN 13709 Check Valve , DN50 Check Valve , PN40 Check Valve
Detail Information
DN50 PN40 Lift Check Valve EN 13709 1.4308 EN 1092-1 B
Features
1. Simple structure, sturdy and durable, with minimal wear and tear;
2. It must be installed on a horizontal pipeline.

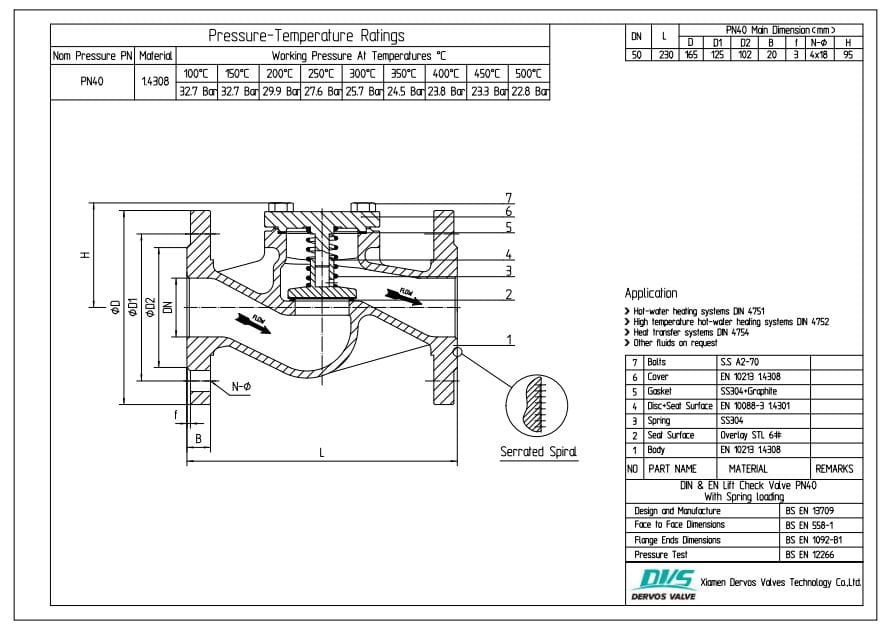

Technical Drawing

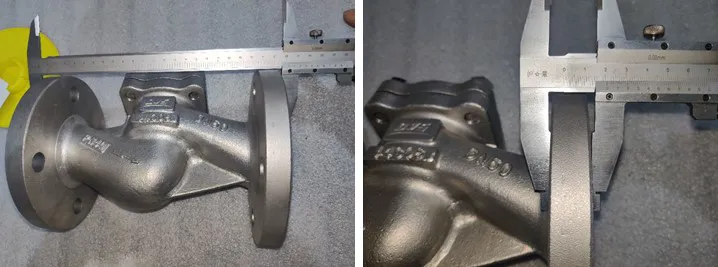

Dimension Checking

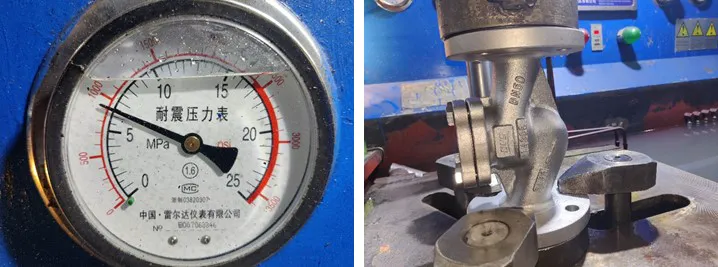

Pressure Testing

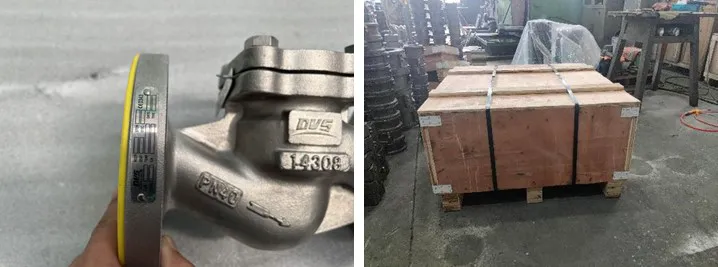

Nameplate & Packing

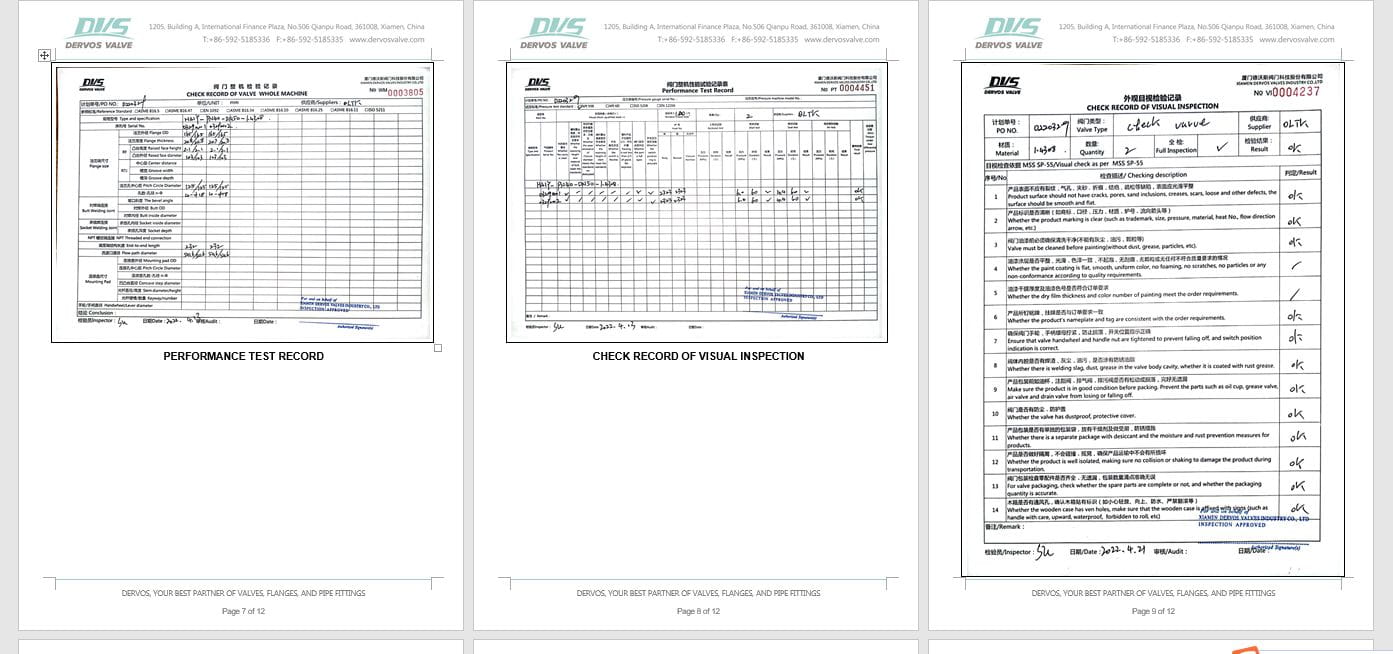

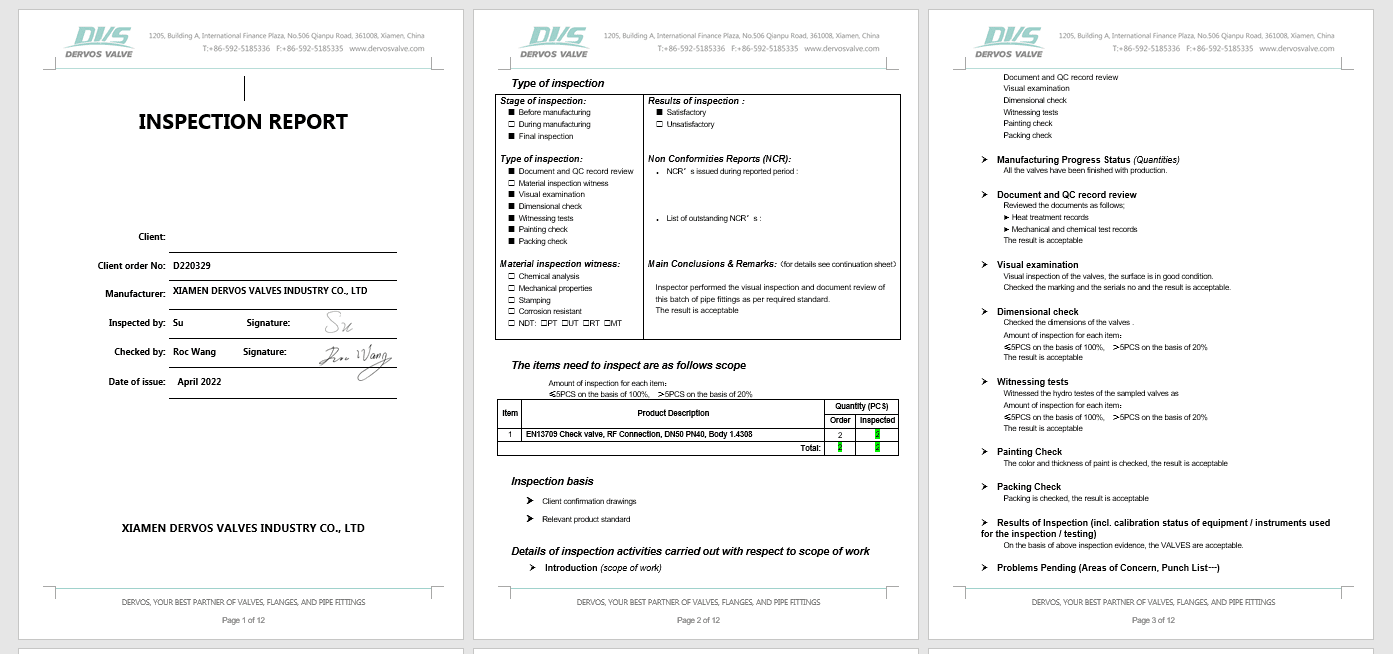

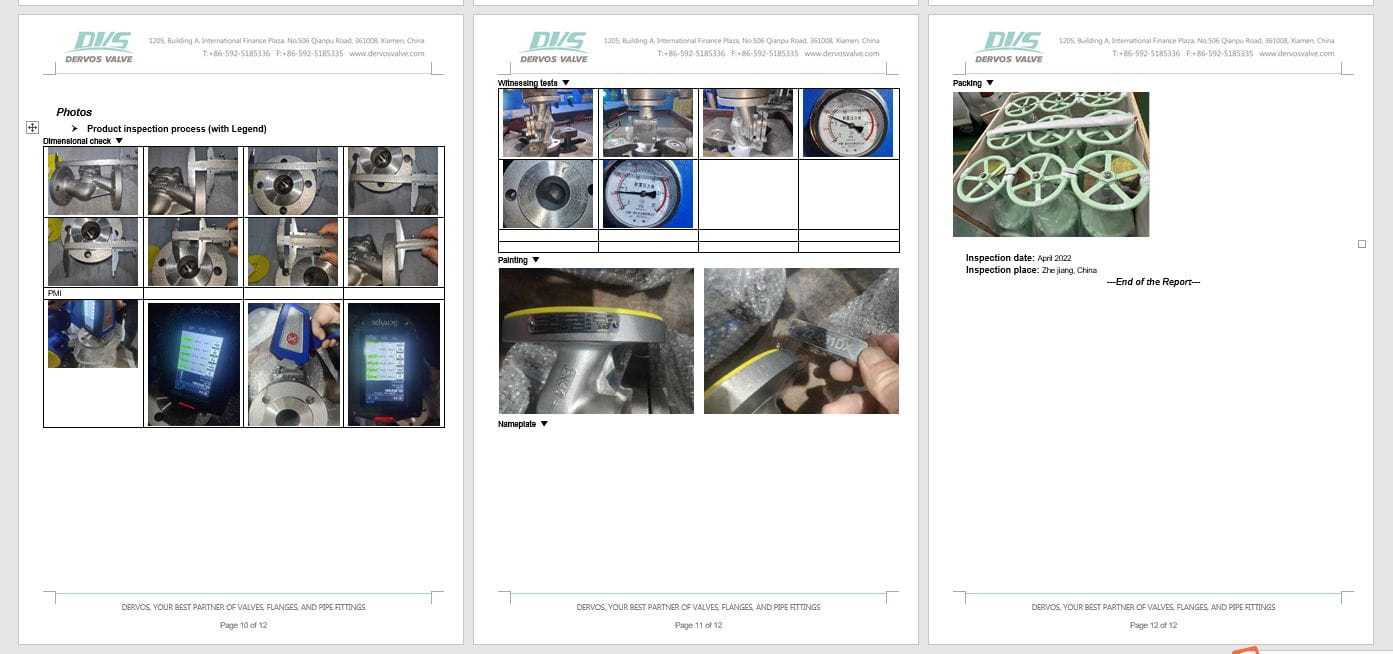

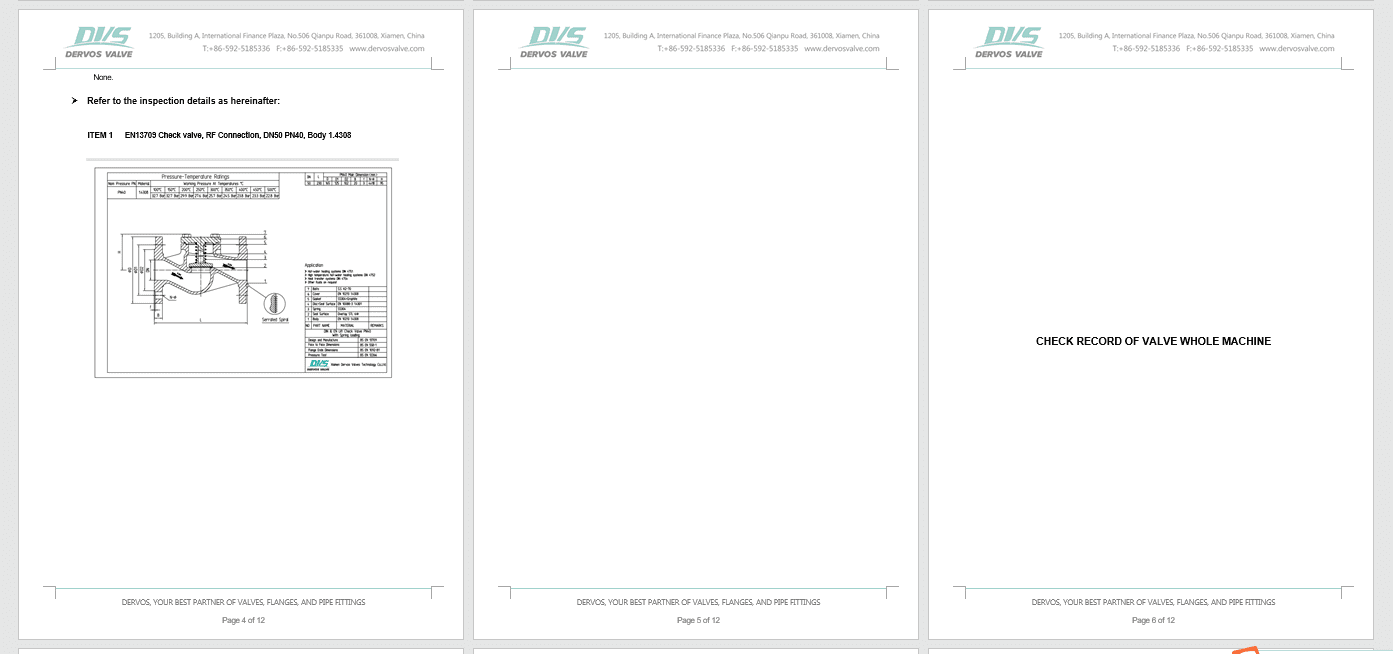

Inspection report
Features
1. Simple structure, sturdy and durable, with minimal wear and tear;
2. It must be installed on a horizontal pipeline.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
