Brief introduction for t-body construction globe valve
Posted May 31, 2018
The basic body forms for globe valve is T-body type, Angle type, Y pattern type. But T-body type is the most widely used in industrial pipelines. T-type valve body has low fluidity and could drop high pressure. T-body valve can only be used for throttling without considering the pressure dropping.
There are three different construction for T-body globe valve.

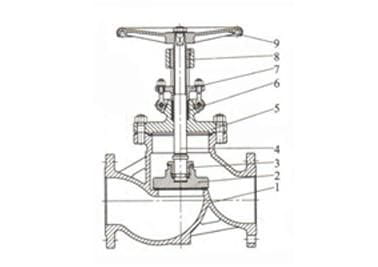

The first one is S-type which is widely used in European countries. (Picture 1)

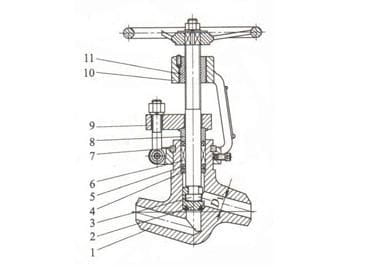

The Second one is Globe-type. It seems like drums' shape from America. (Picture 2)

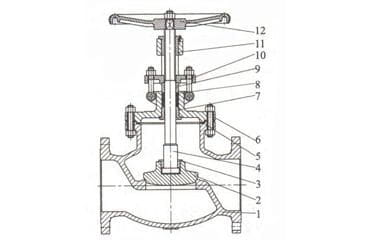

The third one is Z-type. (Picture 3)
There are three different construction for T-body globe valve.
The first one is S-type which is widely used in European countries. (Picture 1)
The Second one is Globe-type. It seems like drums' shape from America. (Picture 2)
The third one is Z-type. (Picture 3)
