Inverted Pressure Balanced Lubricated Plug Valve, API 6D, A105
Key Specifications / Features
The 3/4-inch 150 LB inverted pressure-balanced lubricated plug valve is designed according to the API 6D standard, with a valve body made of ASTM A105. Featuring an inverted oil seal, body valve seat, and a structural length of 130mm, this valve ensures reliable sealing and smooth operation. It uses RF (raised face) connections and lever operation, offering ease of control. This robust design makes it ideal for applications requiring efficient flow regulation and durability.
- Model No.: Kelly-PLV-20241108-03
- Hits: 9
- Categories: Plug Valve
- Tags: Lubricated Plug Valve , Inverted Plug Valves , Pressure Balanced Plug Valve
Detail Information
Inverted Pressure Balanced Lubricated Plug Valve, API 6D, 3/4 Inch, 150LB, ASTM A105 Body.
Features
1. Lubricating oil reduces friction between the valve core and seat, ensuring smoother operation and making it ideal for applications requiring frequent valve cycling.
2. The unique sealing design of the inverted oil-sealed plug valve makes it suitable for a wide range of media, including water, oil, gas, and media containing particles or impurities.
1. Lubricating oil reduces friction between the valve core and seat, ensuring smoother operation and making it ideal for applications requiring frequent valve cycling.
2. The unique sealing design of the inverted oil-sealed plug valve makes it suitable for a wide range of media, including water, oil, gas, and media containing particles or impurities.

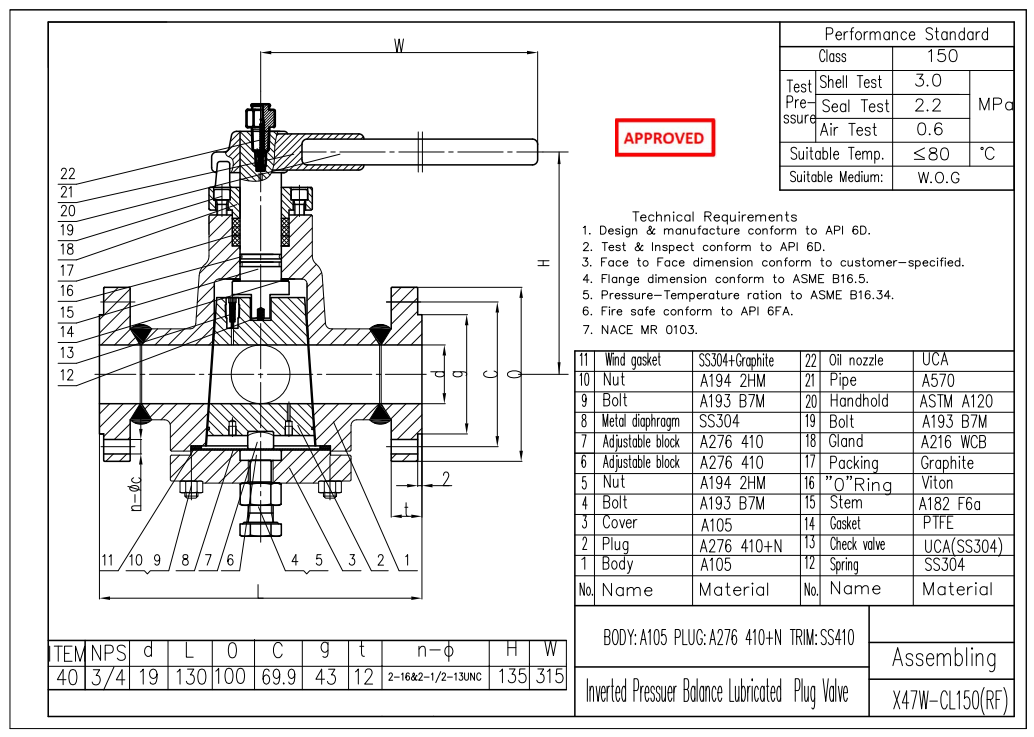

Technical Drawing

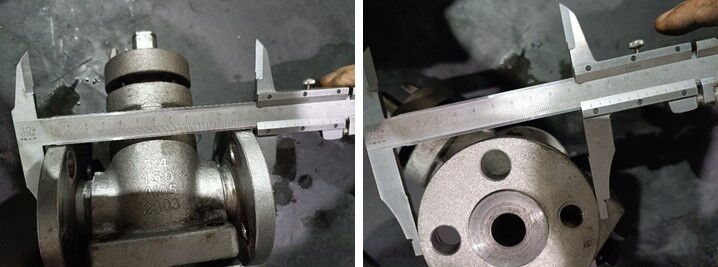

Dimension Checking

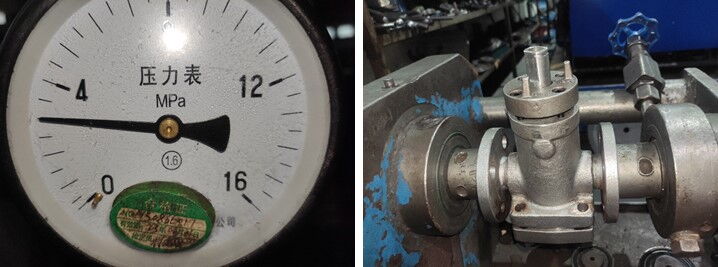

Pressure Testing

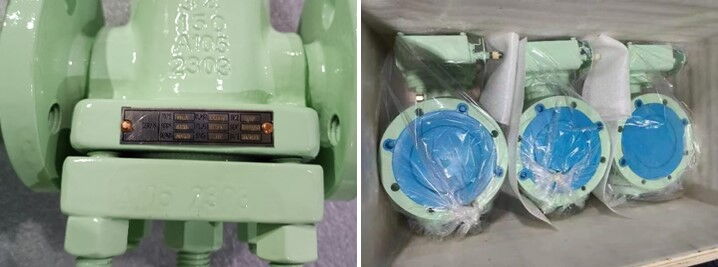

Nameplate & Packing

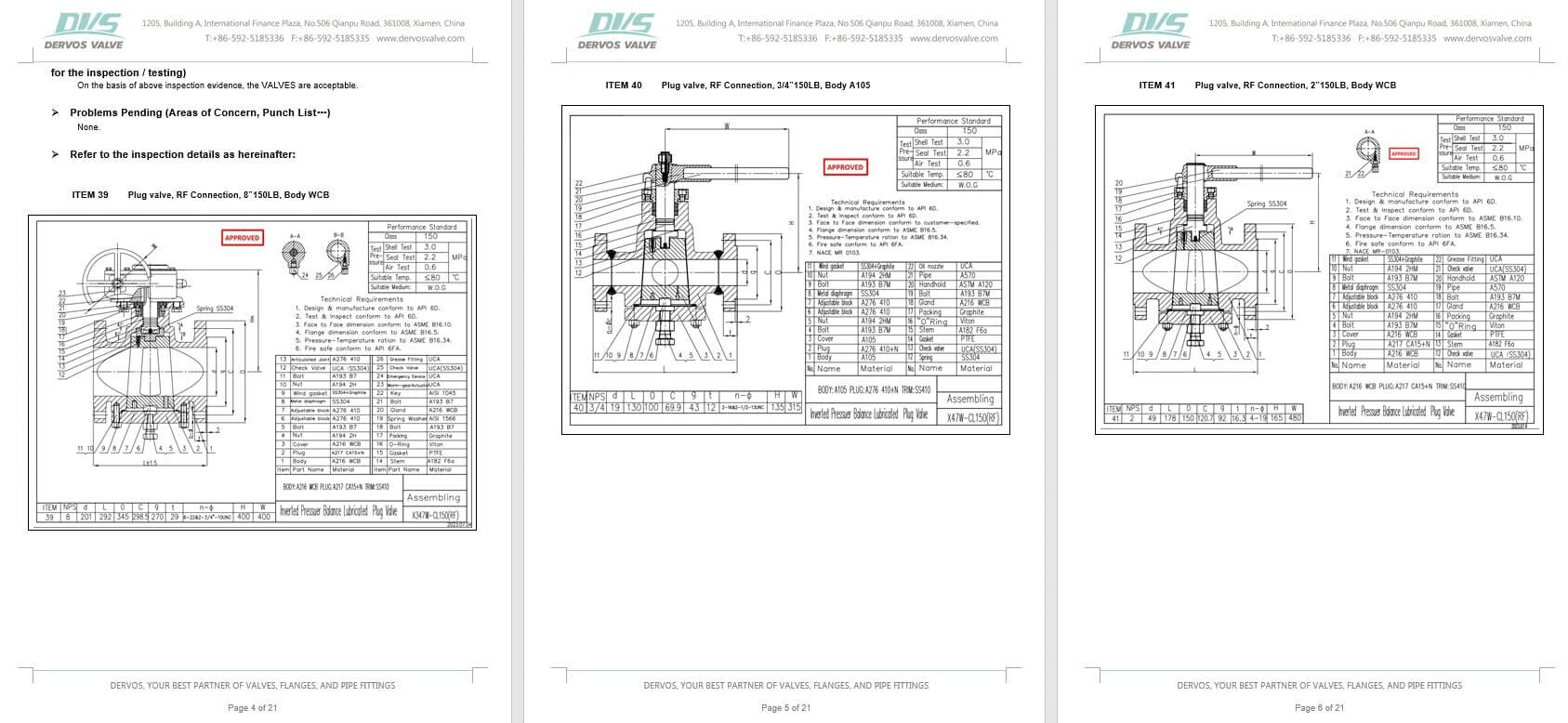

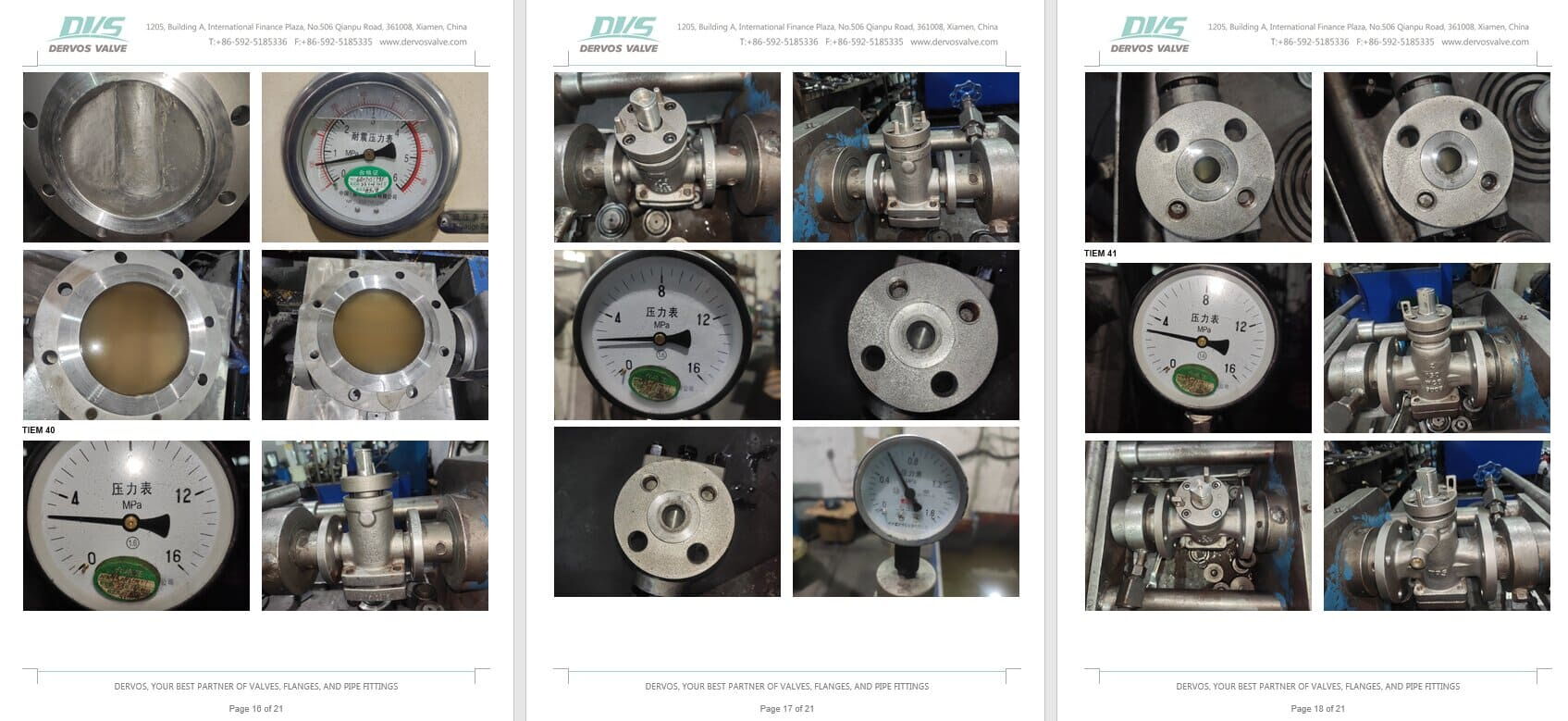

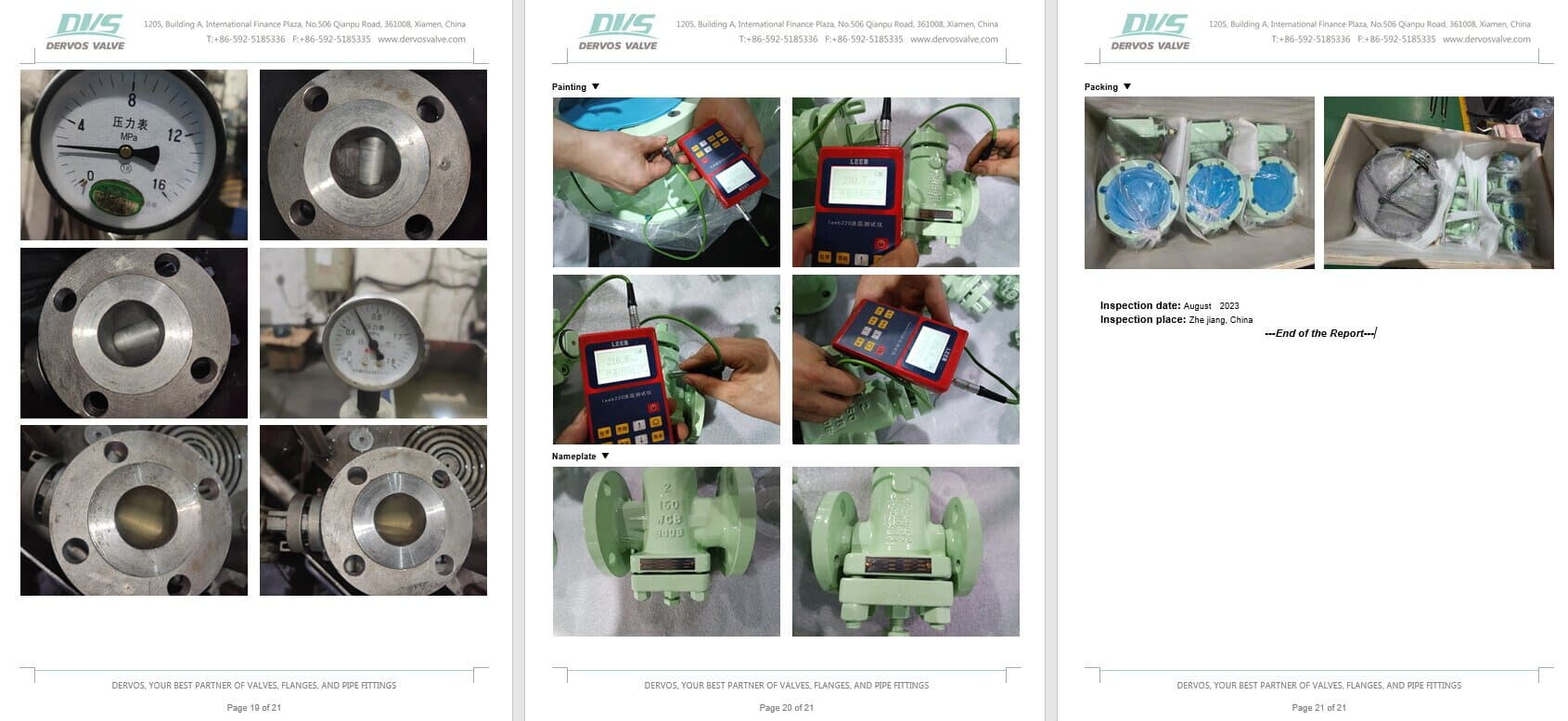

Inspection Report
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection Report
