ASTM A216 WCB Lubricated Plug Valve, API 6D, 6 Inch, 150 LB
Key Specifications / Features
6 Inch CL150 plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of inverted and lubricated. Its connection mode is RF. And it has turbine operation mode.
- Hits: 5
- Categories: Plug Valve
- Tags: ASTM A216 WCB Plug Valve , Lubricated Plug Valve , API 6D Plug Valve
Detail Information
6 Inch CL150 Inverted Pressure Balance Lubricated Plug Valve RF WCB API 6D
Features
1. Reasonable structure, reliable sealing, excellent performance, and beautiful appearance;
2. It is injected with sealing grease to improve sealing performance.

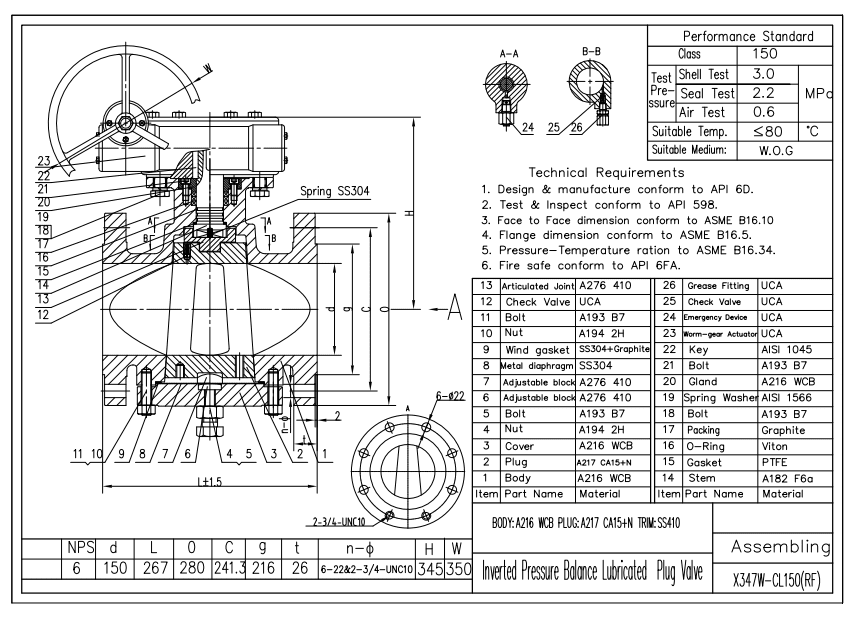

Technical Drawing

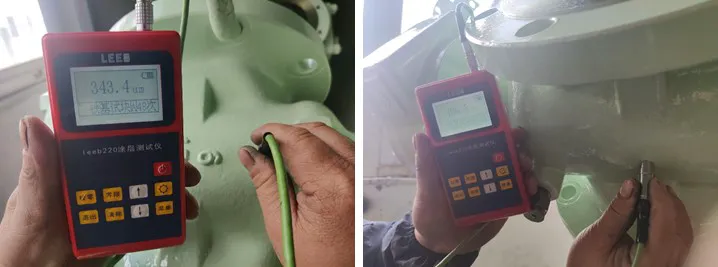

Painting

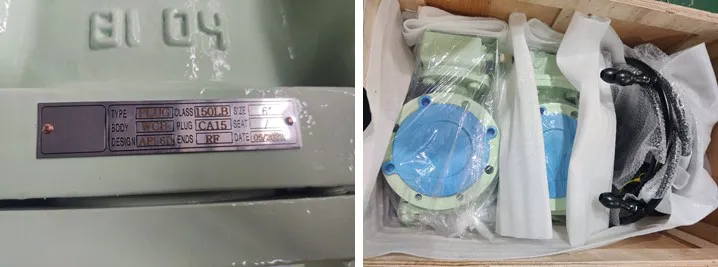

Nameplate & Packing

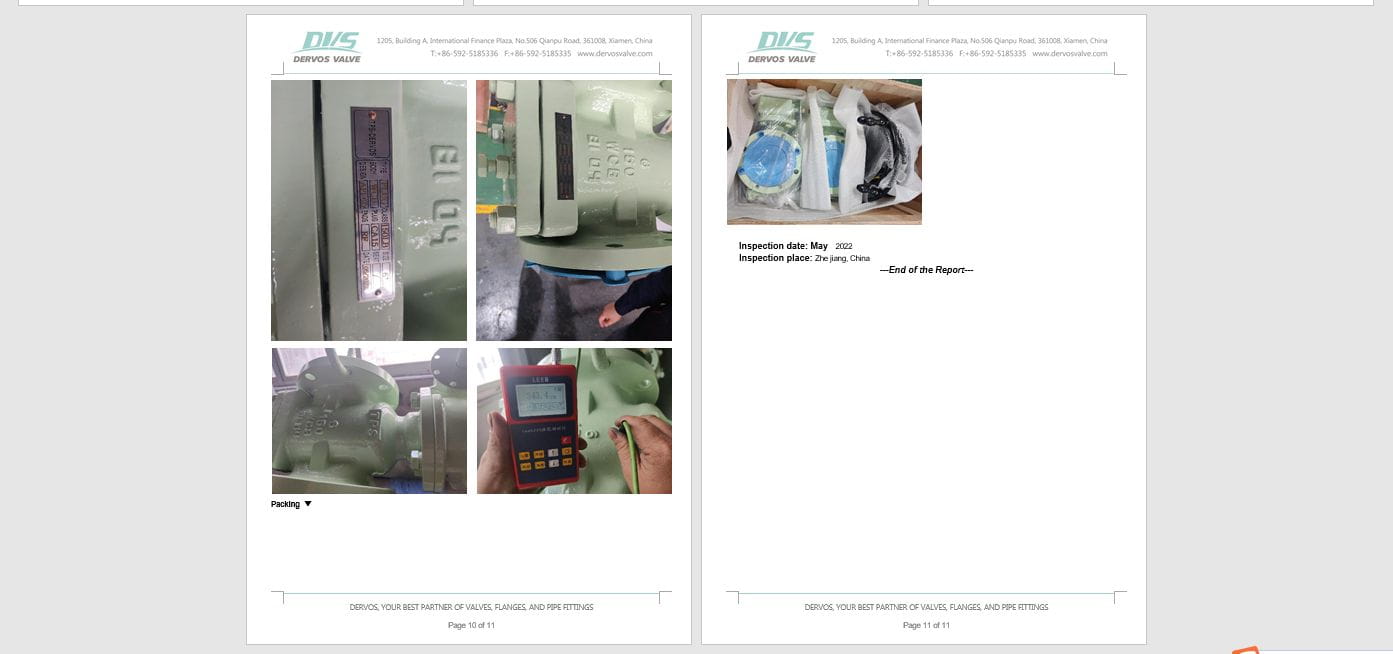

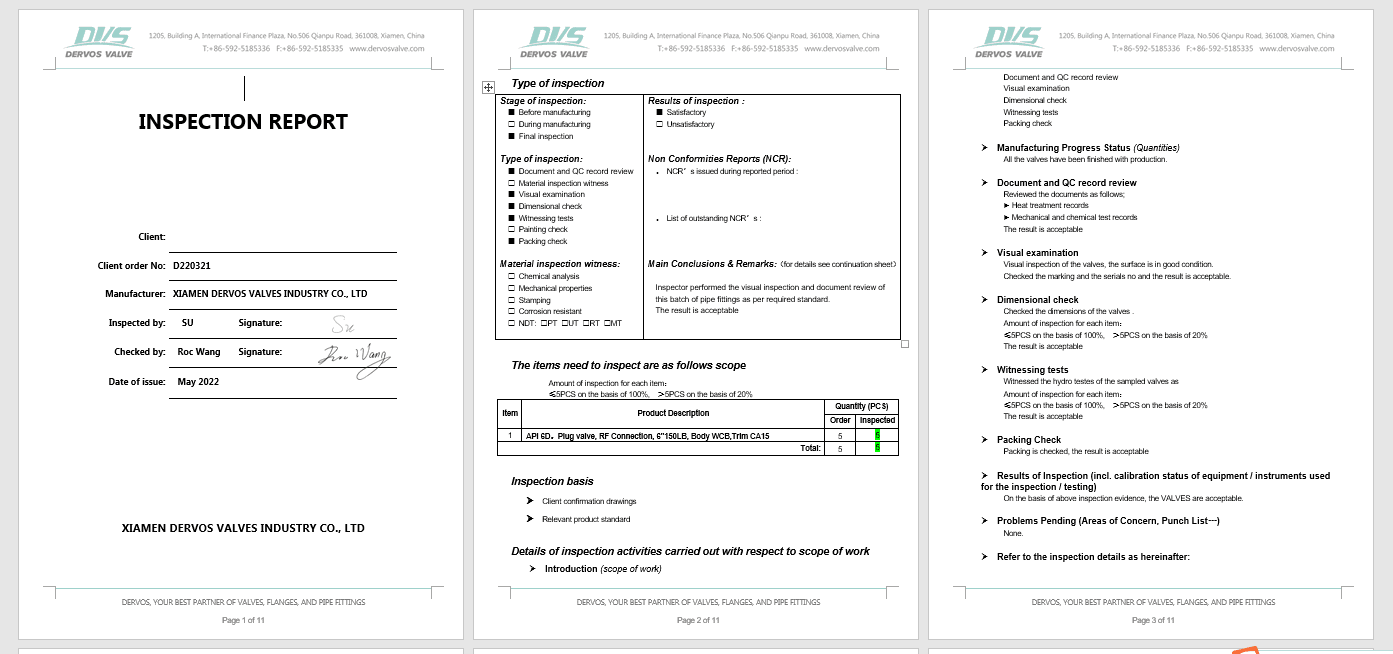

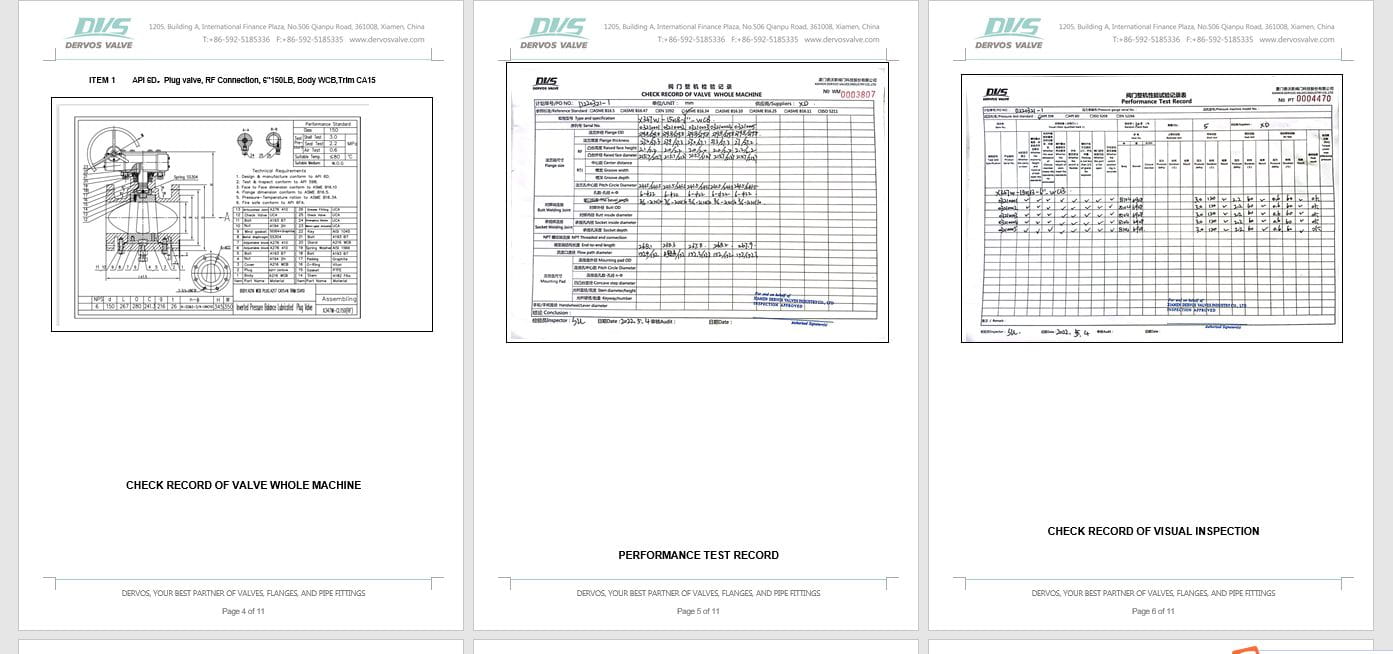

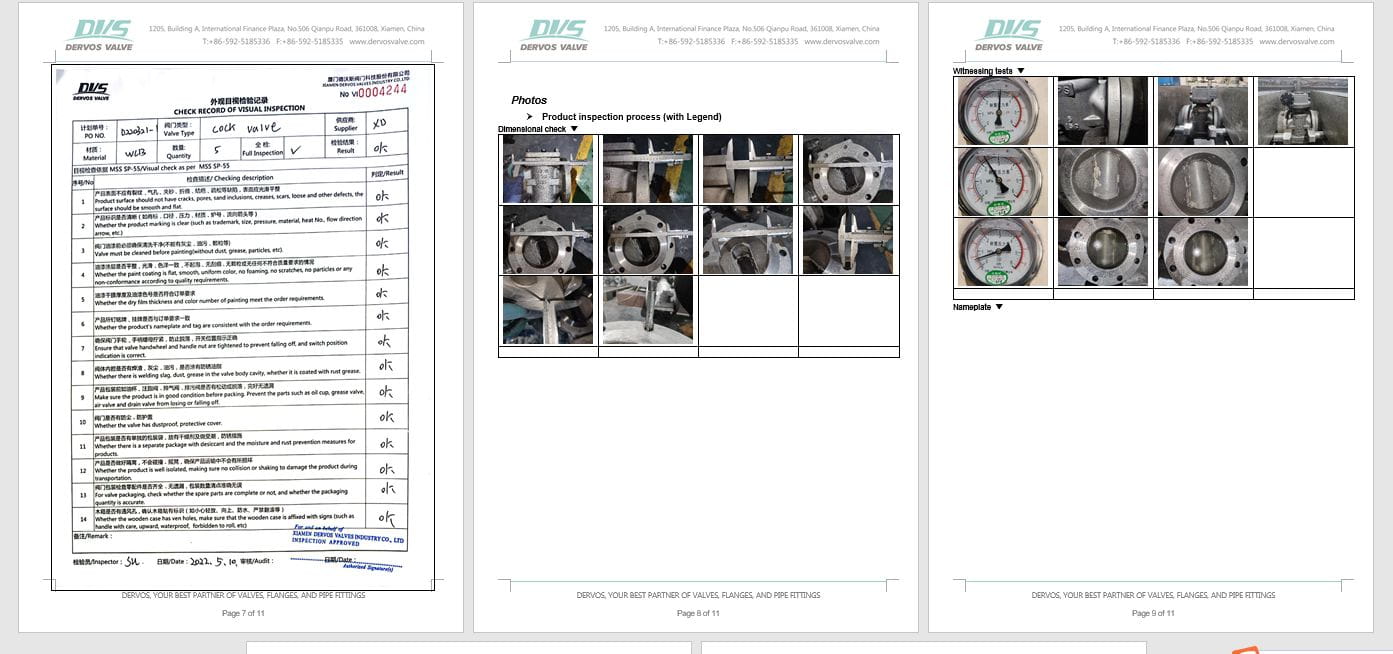

Inspection report
Features
1. Reasonable structure, reliable sealing, excellent performance, and beautiful appearance;
2. It is injected with sealing grease to improve sealing performance.
Technical Drawing
Painting
Nameplate & Packing
Inspection report
