ASTM A182 F316 Floating Ball Valve, 1-1/2IN, 1000PSI, API 608
Key Specifications / Features
1-1/2 Inch 1000 PSI floating ball valve is made according to API 608 standard. The valve body is made of ASTM A182 F316. It has the structural characteristics of a 2-piece and floating ball type. Its connection mode is NPT (ASME B1.20.1). It has a lever operation mode.
- Hits: 4
- Categories: Floating Ball Valve
- Tags: ASTM A182 F316 Ball Valve , 1-1/2 Inch Ball Valve , API 608 Ball Valve
Detail Information
NPT Connection, 1-1/2 Inch 1000 PSI Floating Ball Valve, Body F316, API 608
Features
1. Excellent material quality, reasonable structure, wear resistance, long service life, and low maintenance cost;
2. The rapid closure of valves can effectively prevent water hammer and protect the safety of pipelines and equipment.

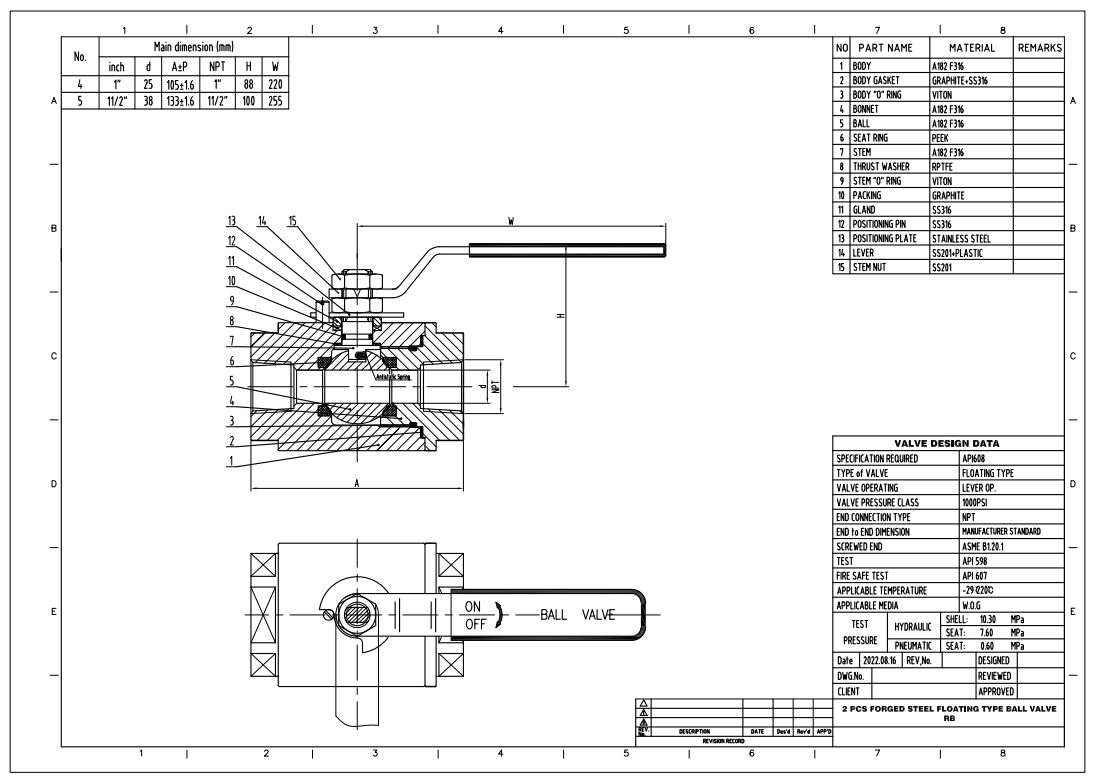

Technical Drawing

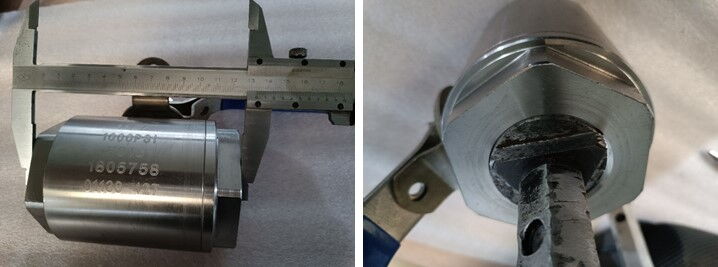

Dimension Checking
Pressure Testing
Nameplate & Packing

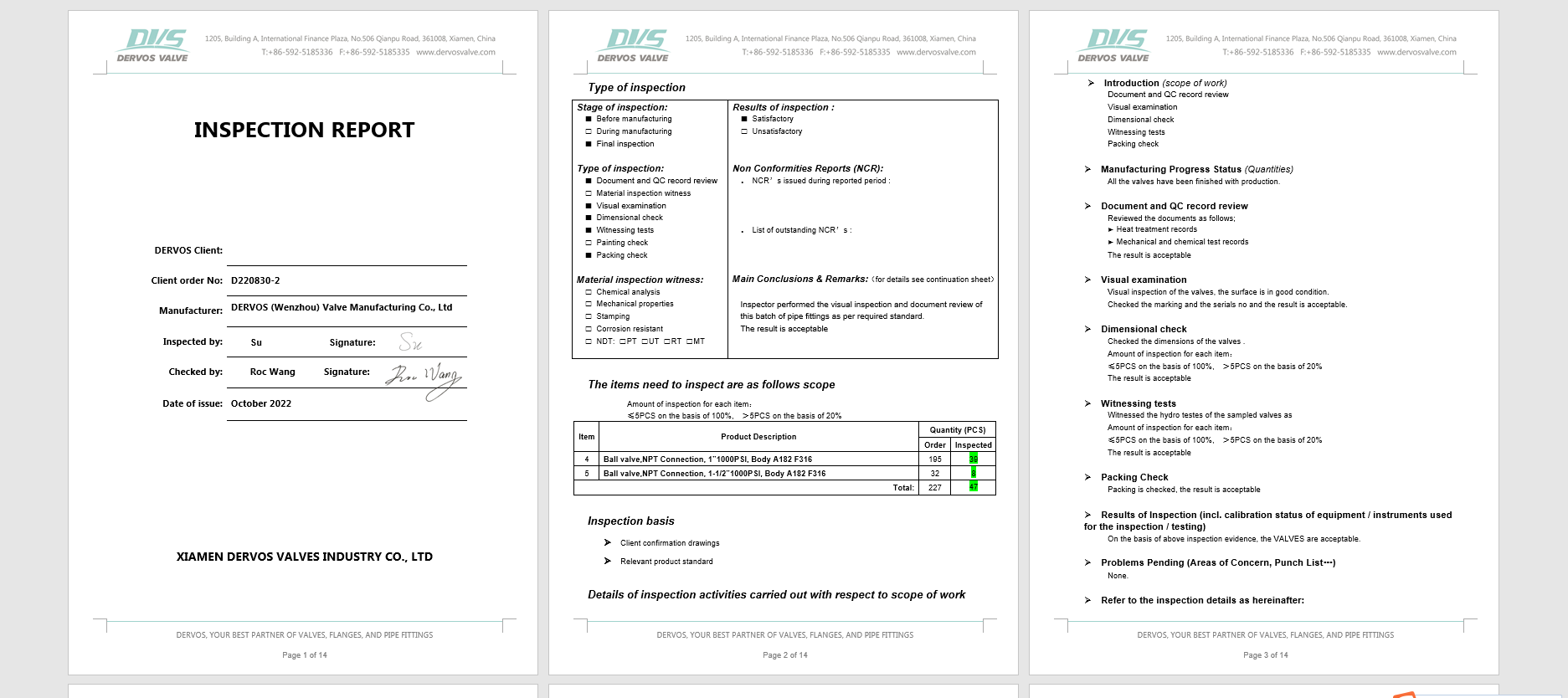

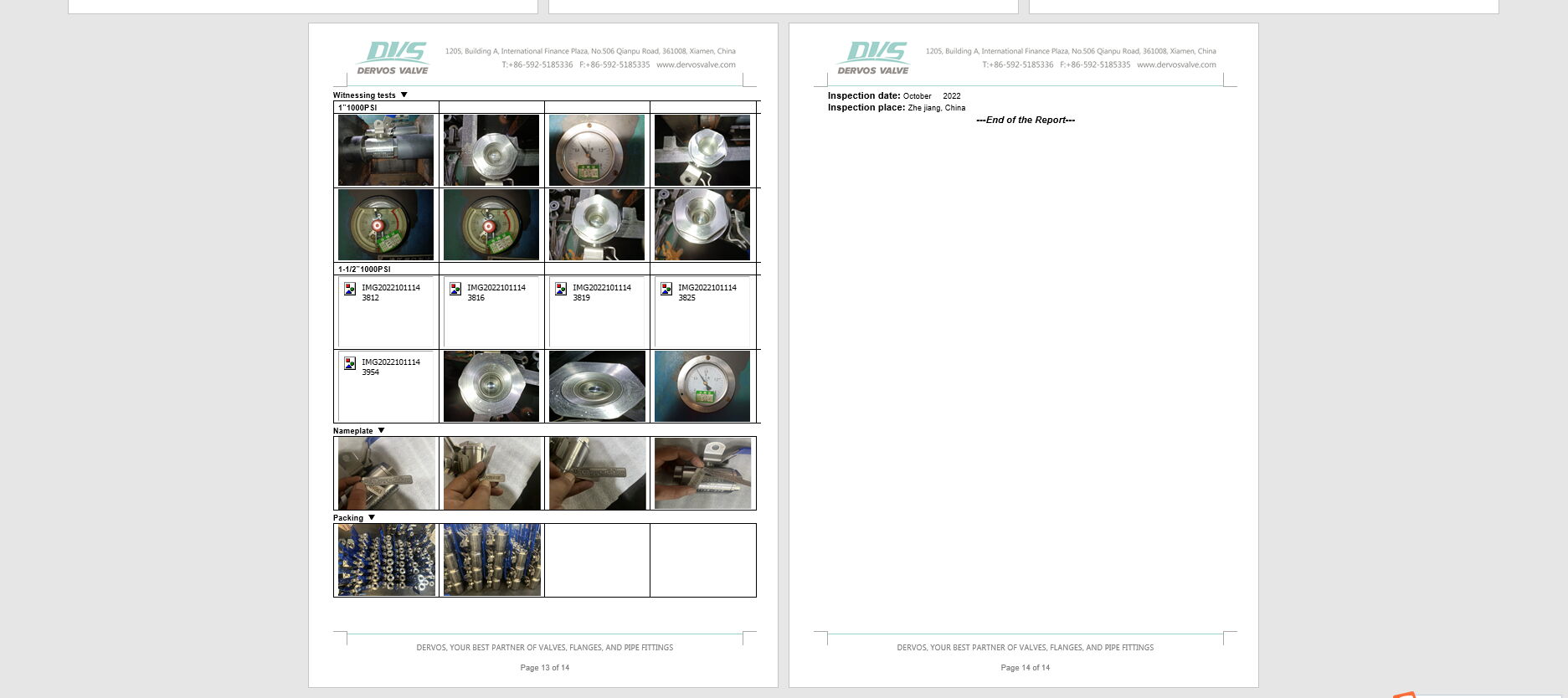

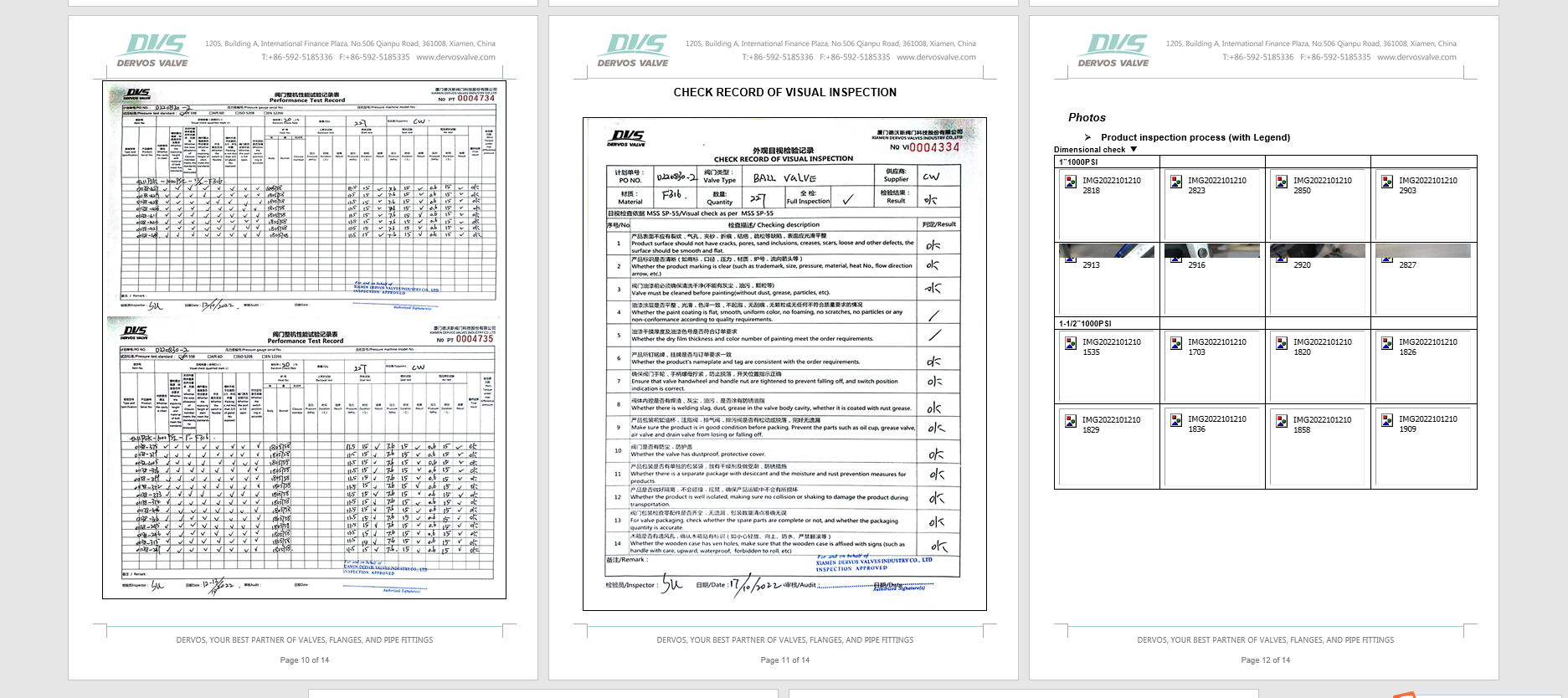

Inspection report
Features
1. Excellent material quality, reasonable structure, wear resistance, long service life, and low maintenance cost;
2. The rapid closure of valves can effectively prevent water hammer and protect the safety of pipelines and equipment.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
