ASTM A105N Swing Check Valve, 2 Inch, 150 LB, API 602

ASTM A105N Swing Check Valve, 2 Inch, 150 LB, API 602

Key Specifications / Features

2 Inch 150 LB check valve is made according to API 602 standards. The valve body is made of ASTM A105N. It has the structural characteristics of a swing type and bolted cover. Its connection mode is NPT.

Detail Information

2 Inch DN50 150 LB Swing Check Valve NPT A105N API 602

Features

1. Prevent media backflow in the pipeline;
2. Excellent performance and more reliable sealing;
3. Widely used in various industries such as petroleum, chemical, pharmaceutical, and power.

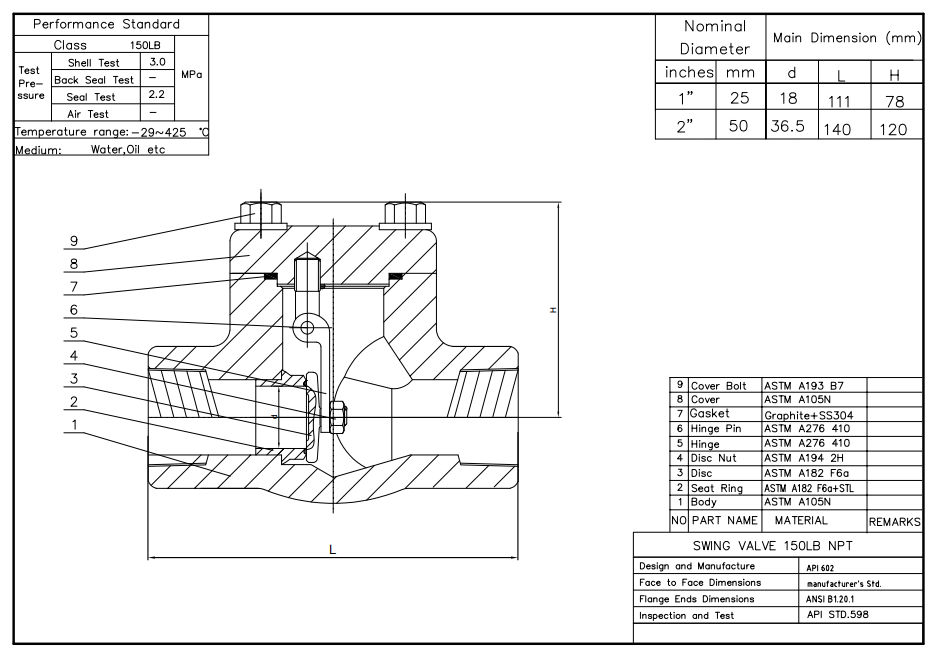

Technical Drawing

Swing Check Valve Tech Drawing

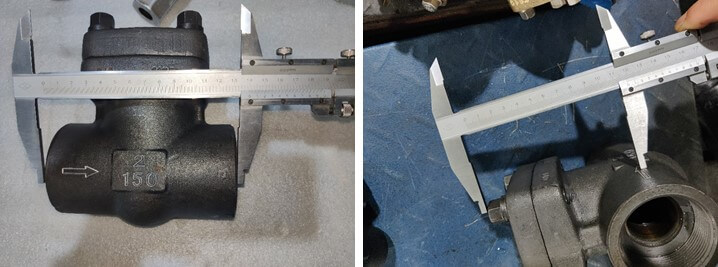

Dimension Checking

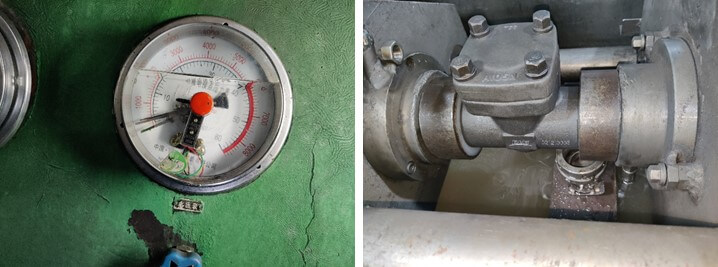

Pressure Testing

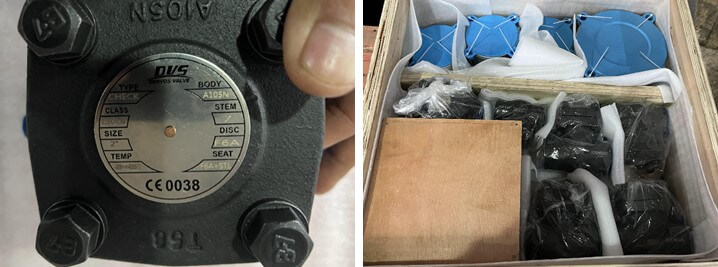

Nameplate & Packing

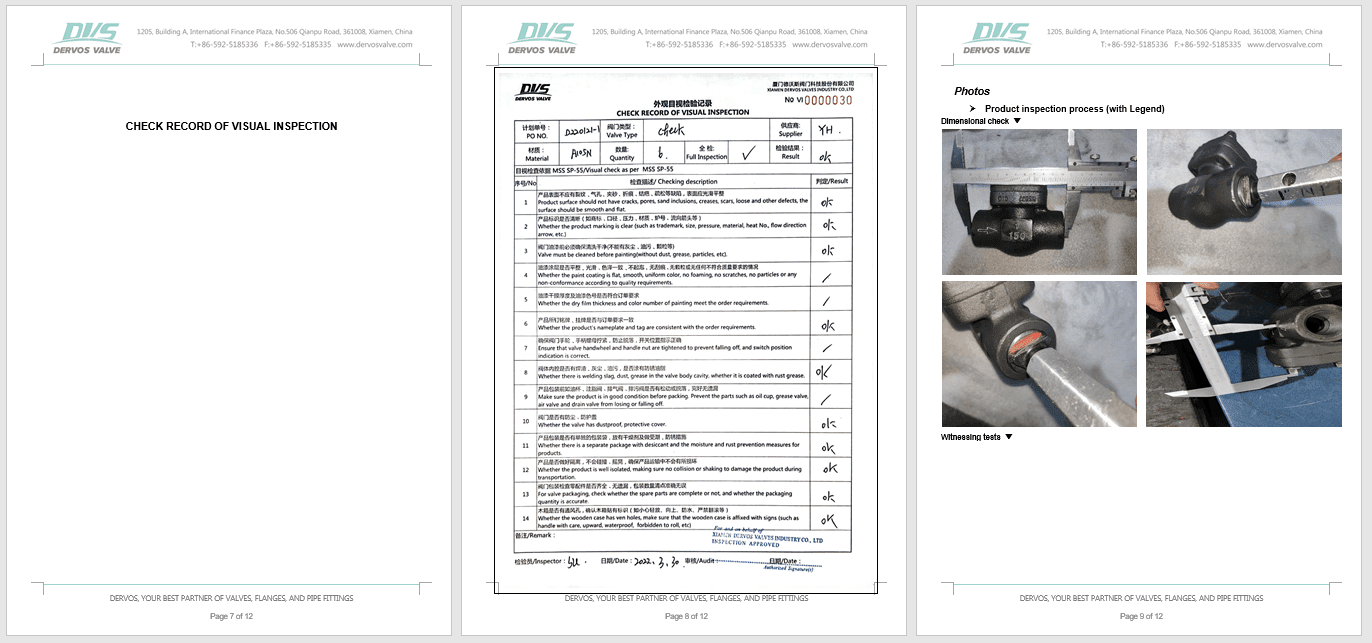

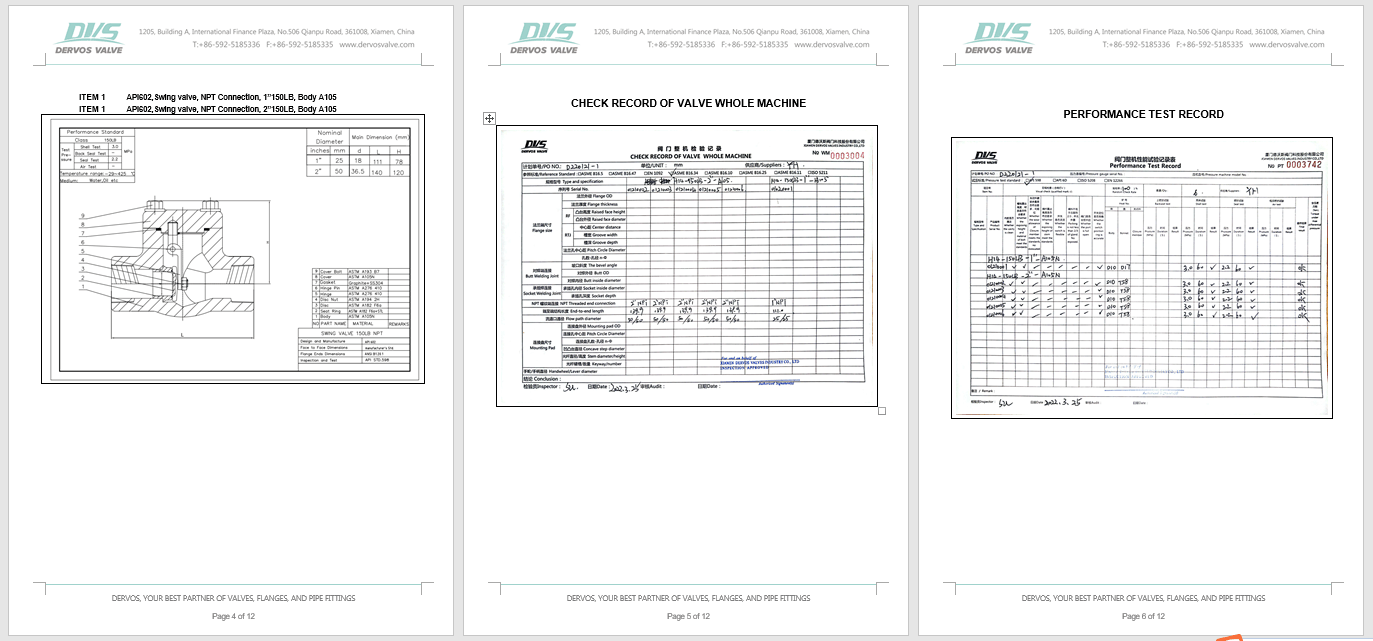

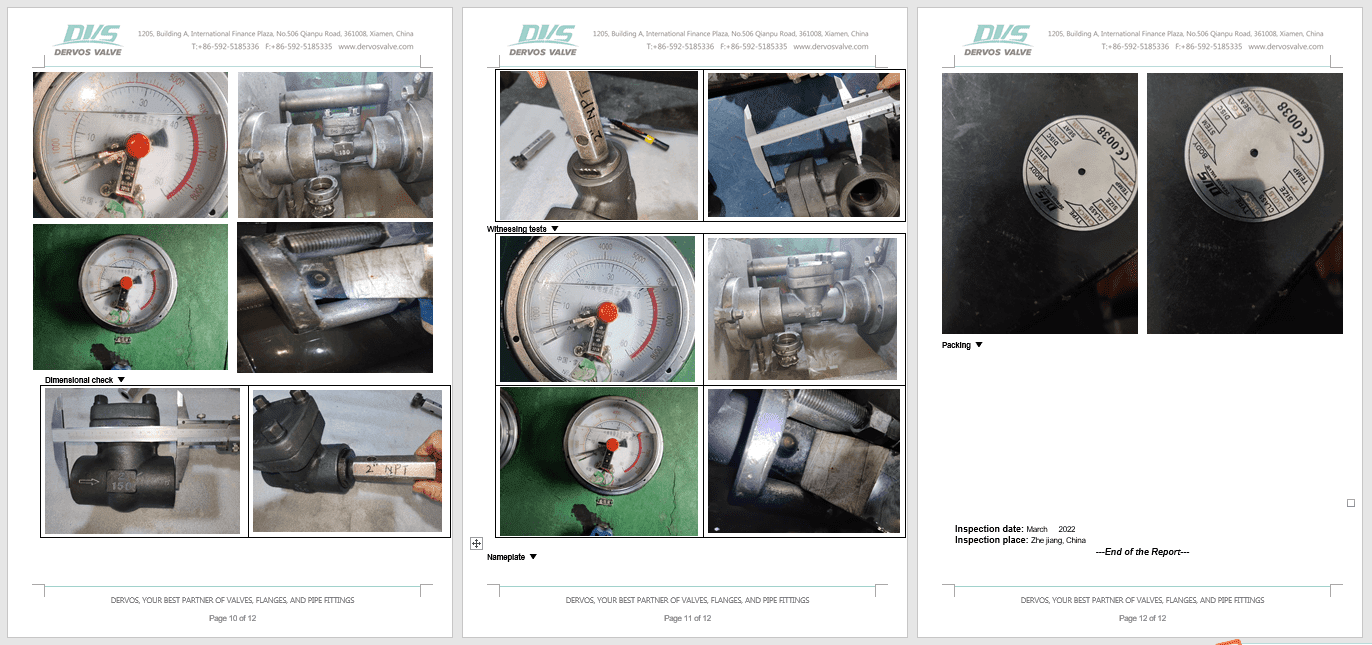

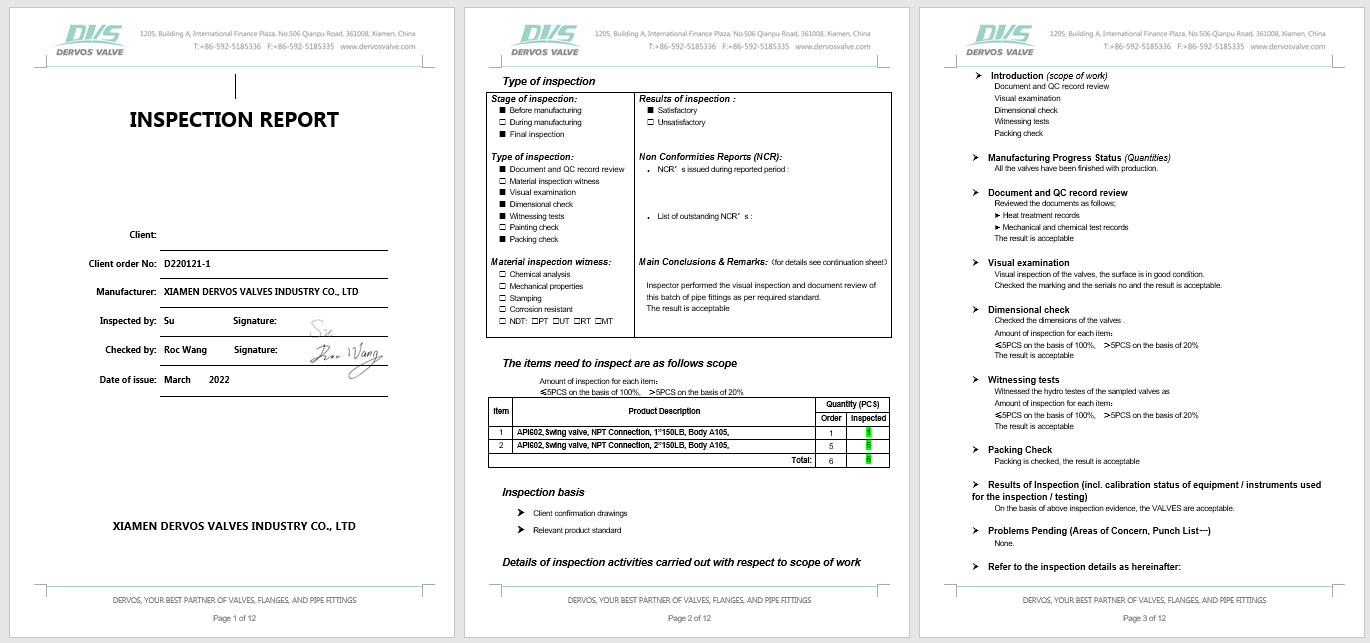

Inspection report
