ASME B16.34 Slimline Monoflange, ASTM A105N, Class 300 LB

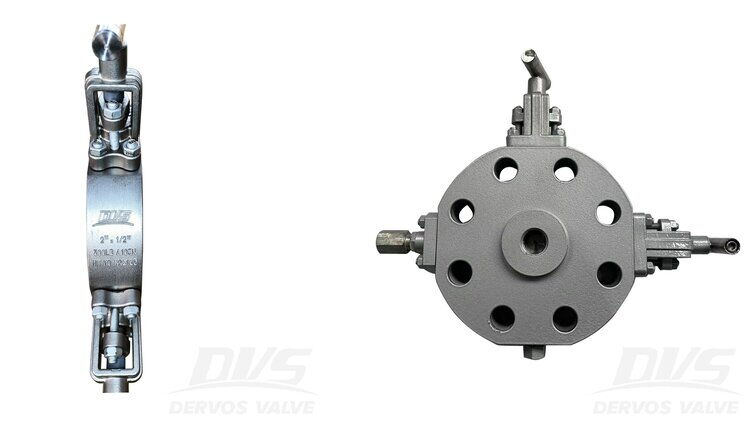

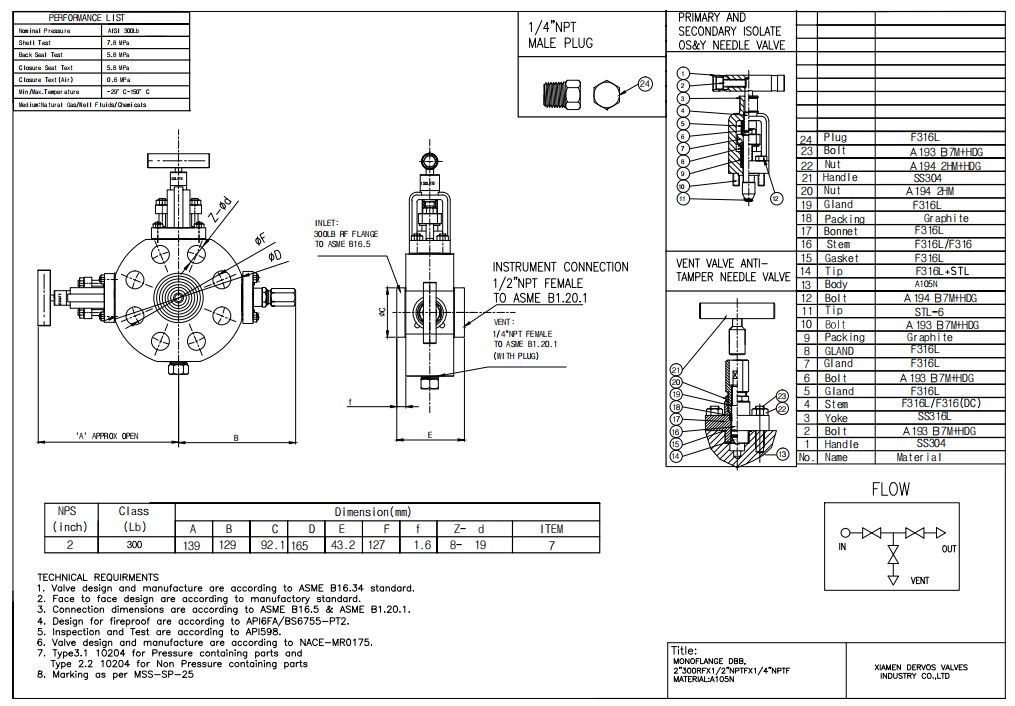

The 2 x 1/2 Inch 300 LB slimline monoflange is manufactured under ASME B16.34 standards, featuring a robust ASTM A105N body. This valve incorporates a BLOCK-BLEED-BLOCK design and complies with NACE MR 0175 for sour service applications. The first and second isolation valves are equipped with a plug cover, open stem, needle valve, and handle operation for precise control. The exhaust valve features a plug cover and a tamper-proof needle valve design. Additionally, the drain valve includes a 1/4" NPT-F with a hexagonal threaded plug (NPT-M, ASME B1.20.1; MoC: F316L, CL.6000#). Its connection mode is RF*FNPT, and it operates via a handwheel for ease of use.
