ASME B16.34 Floating Ball Valve, 1 Inch, 600 LB, DN25, PN100
Key Specifications / Features
1 Inch PN100 ball valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105. It has the structural characteristics of a floating ball, full bore, anti-fire and anti-static. Its connection mode is FNPT. It has a lever operation mode.
- Hits: 3
- Categories: Floating Ball Valve
- Tags: ASME B16.34 Ball Valve , 1 Inch Ball Valve , Class 600 LB Ball Valve
Detail Information
1 Inch PN100 Floating Ball Valve FNPT A105 Lever ASME B16.34
Features
1. Small size, lightweight, and simple structure;
2. The valve has good sealing performance, low friction coefficient, small operating torque, a diverse selection of valve seat materials, and a wide range of adaptability.

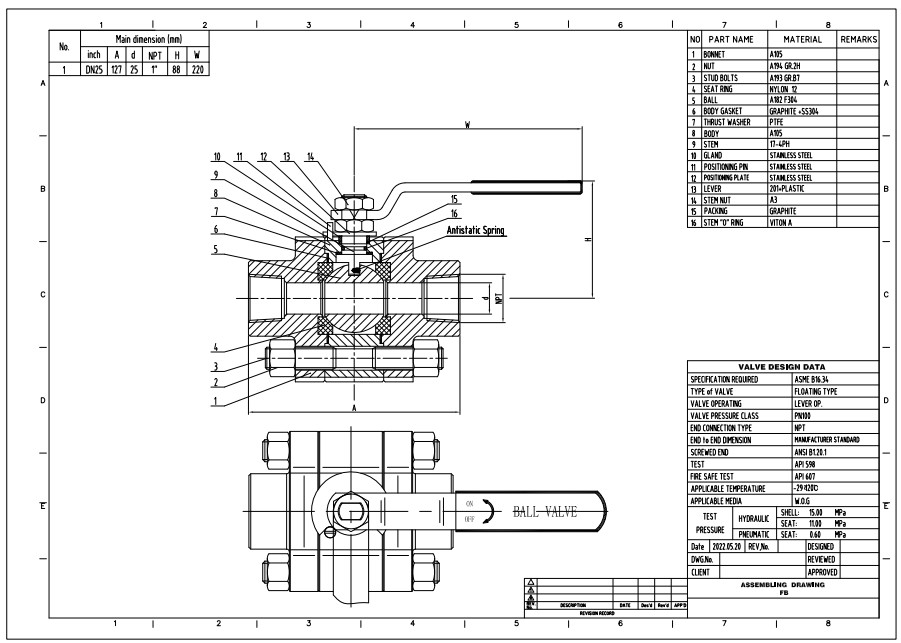

Technical Drawing
Dimension Checking

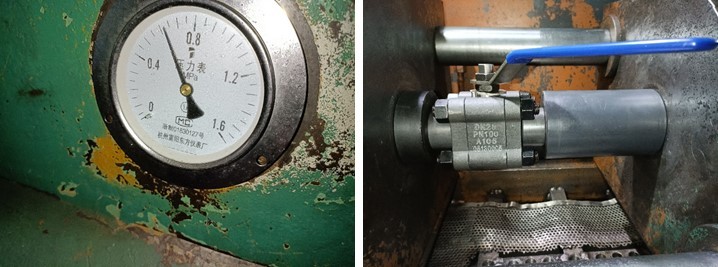

Pressure Testing
Nameplate & Packing

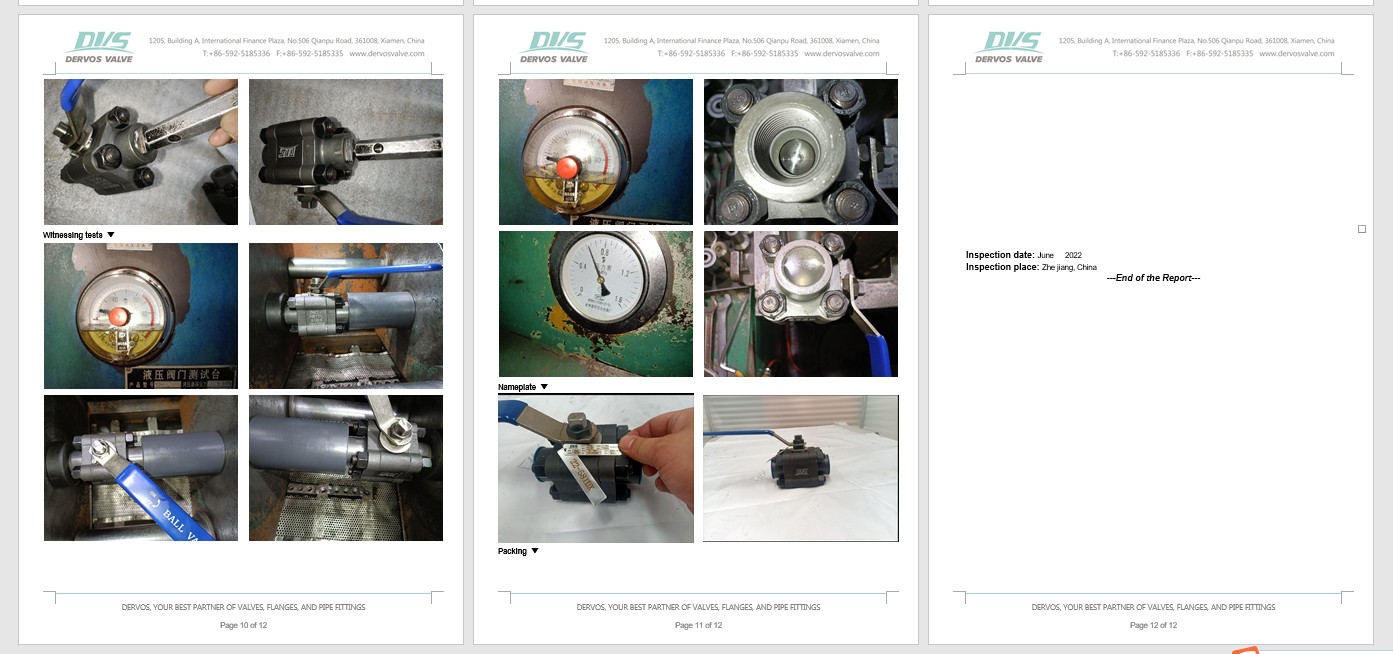

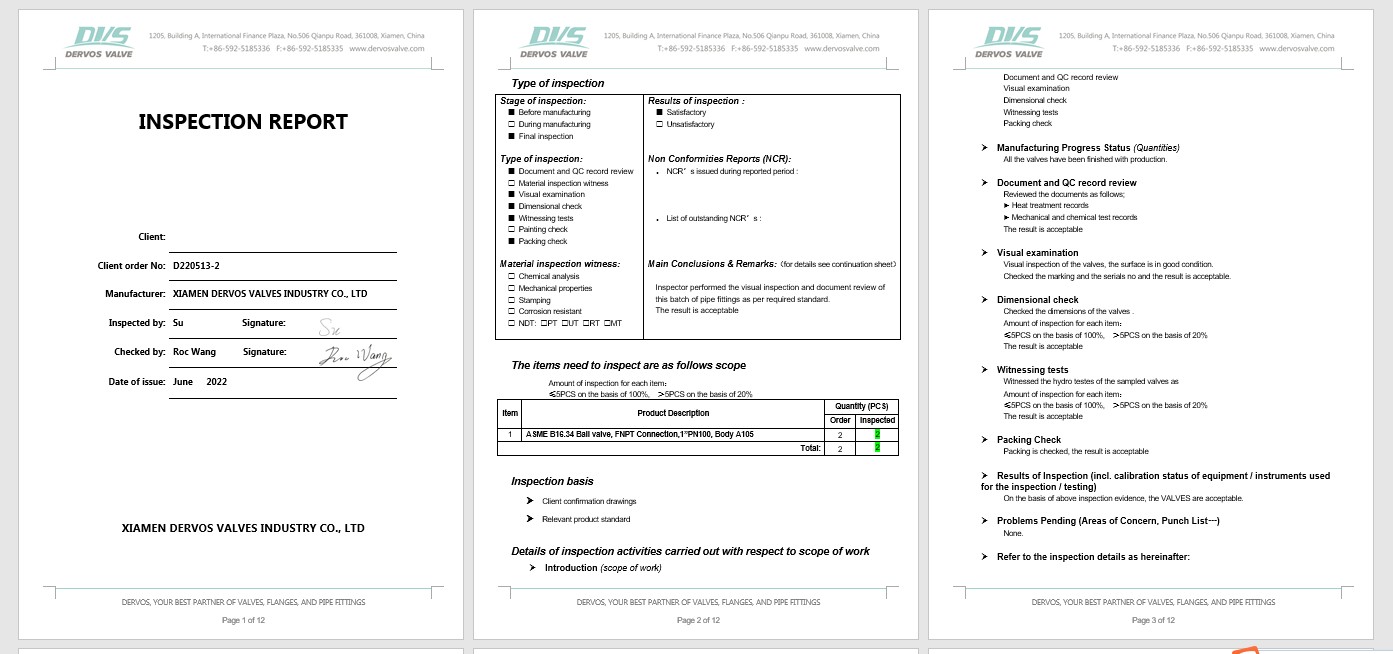

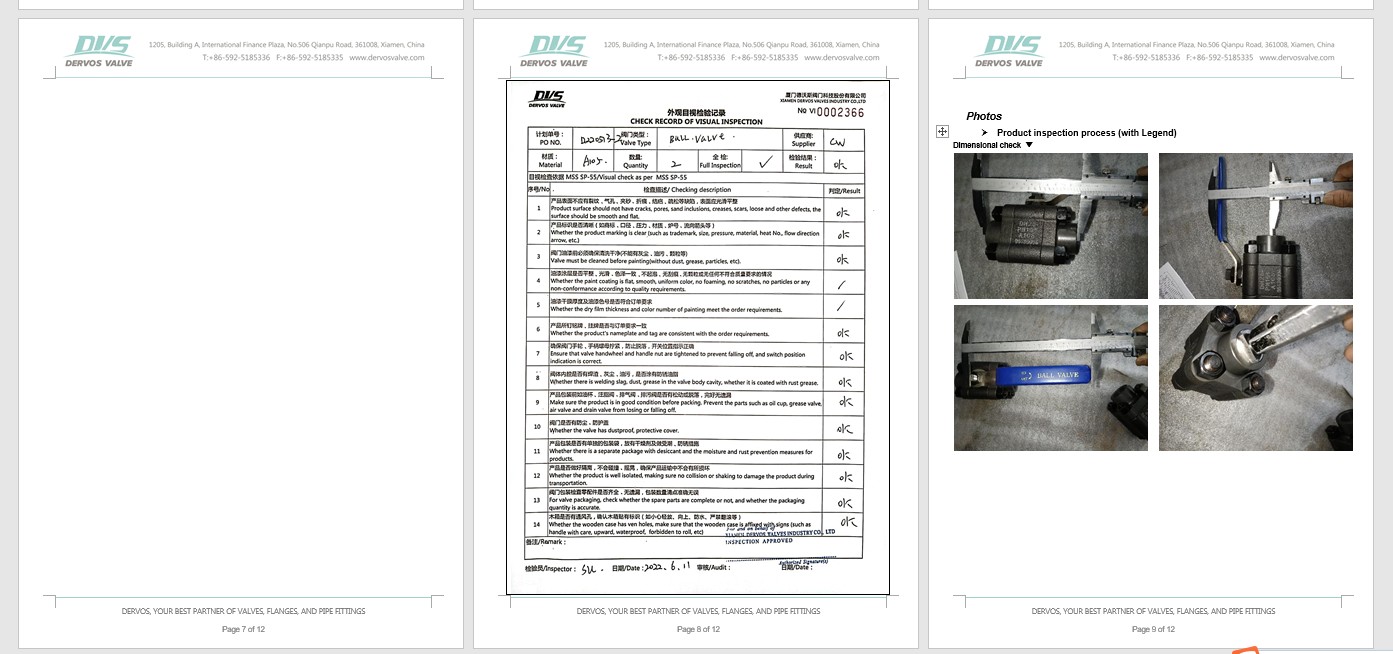

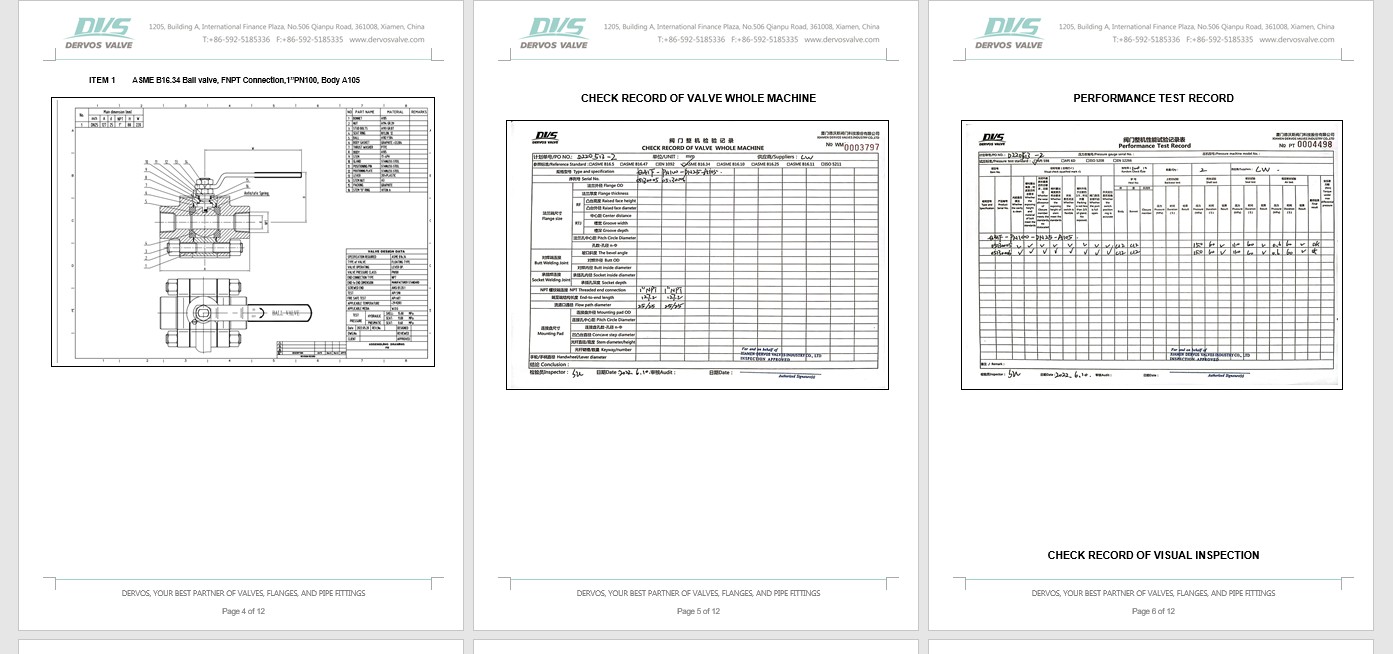

Inspection report
Features
1. Small size, lightweight, and simple structure;
2. The valve has good sealing performance, low friction coefficient, small operating torque, a diverse selection of valve seat materials, and a wide range of adaptability.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
