API 602 Globe Valve, ASTM A182 F316, 3/4 Inch, 800 LB, SW
Key Specifications / Features
API 602 Globe Valve Provider: ASTM A182 F316 Globe Valves, 3/4 Inch, Class 800 LB, Welded Bonnet, Needle Disc, Standard Bore, Integral Seat, SW Ends.
- Hits: 5
- Categories: Globe Valve
- Tags: API 602 Globe Valve , ASTM A182 F316 Globe Valve , Class 800 LB Globe Valve
Detail Information
| Type | Globe Valve |
| Size | 3/4 Inch |
| Pressure | 800 LB |
| Construction | Welded Bonnet, Straight Pattern, Needle Disc, Standard Bore, Integral Seat |
| Connection | Socket Welded |
| Operation | Handwheel Operated |
| Design Code | API 602 |
| Connection Dimension | ANSI B16.11 |
| Test & Inspection | API 598 |
| Body Material | F316 |
| Trim Material | F316+STL |
| Temperature Range | -65-400℃ |
| Application | WOG |
| Origin | China |
Features
--Welded-Bonnet: popular where disassembly is not required. They are lighter in weight than their bolted-bonnet counterparts.
--Needle disc design provides better throttling as compared to ball or composition disk design.
--Solution Treatment Ensure that the material has good mechanical properties and corrosion resistance.
--Fast operation compares to gate valve due to shorter stroke length

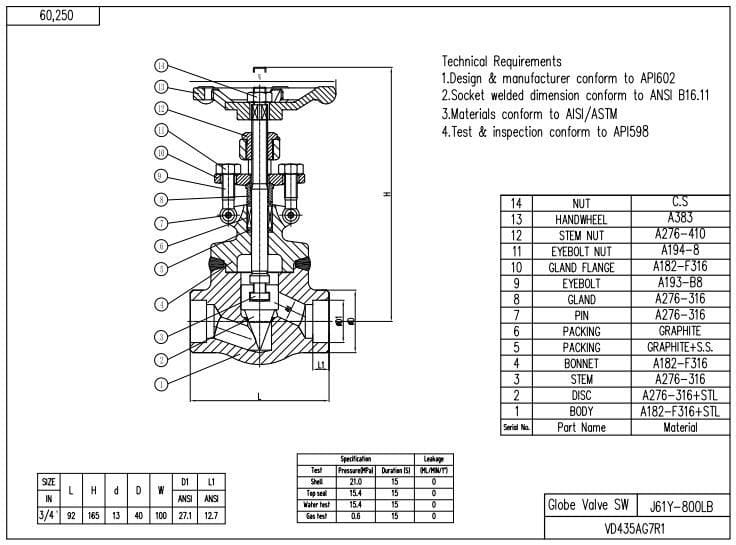

Technical Drawing

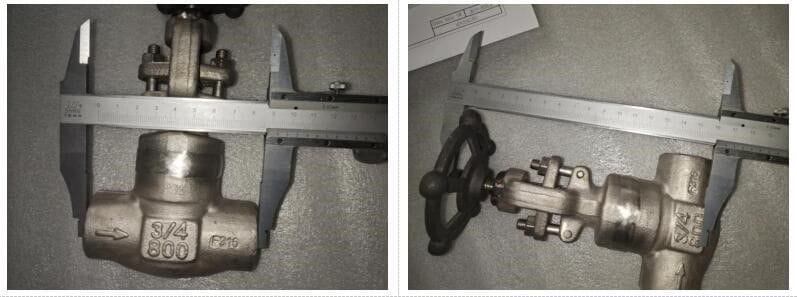

Dimension Check

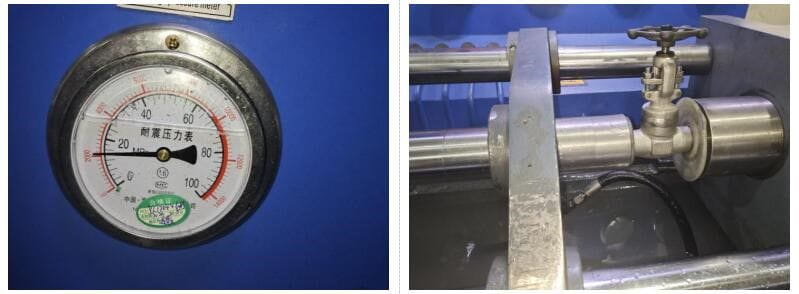

Witnessing Tests

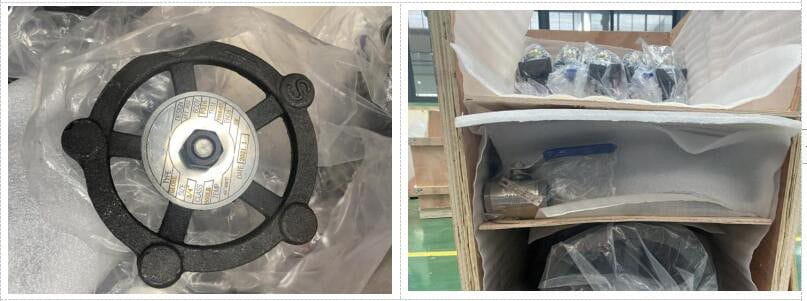

Packing
