API 594 Swing Check Valve, 20 Inch, 900 LB, ASTM A216 WCB, RTJ
Key Specifications / Features
20-inch 900 LB swing check valve is made according to API 594 standard. The valve body is made of A216 WCB+316. It has the structural characteristics of swing type and double disc wafer type. Its connection mode is RTJ.
- Hits: 7
- Categories: Swing Check Valve
- Tags: API 594 Check Valve , 20 Inch Check Valve , Class 900 LB Check Valve
Detail Information
RTJ Connection, 20 Inch 900 LB Swing Check Valve, Body WCB, API 594
Features
1. Simple structure, high reliability, and convenient maintenance;
2. Easy to operate, unobstructed flow channels, low fluid resistance, and low-pressure loss.

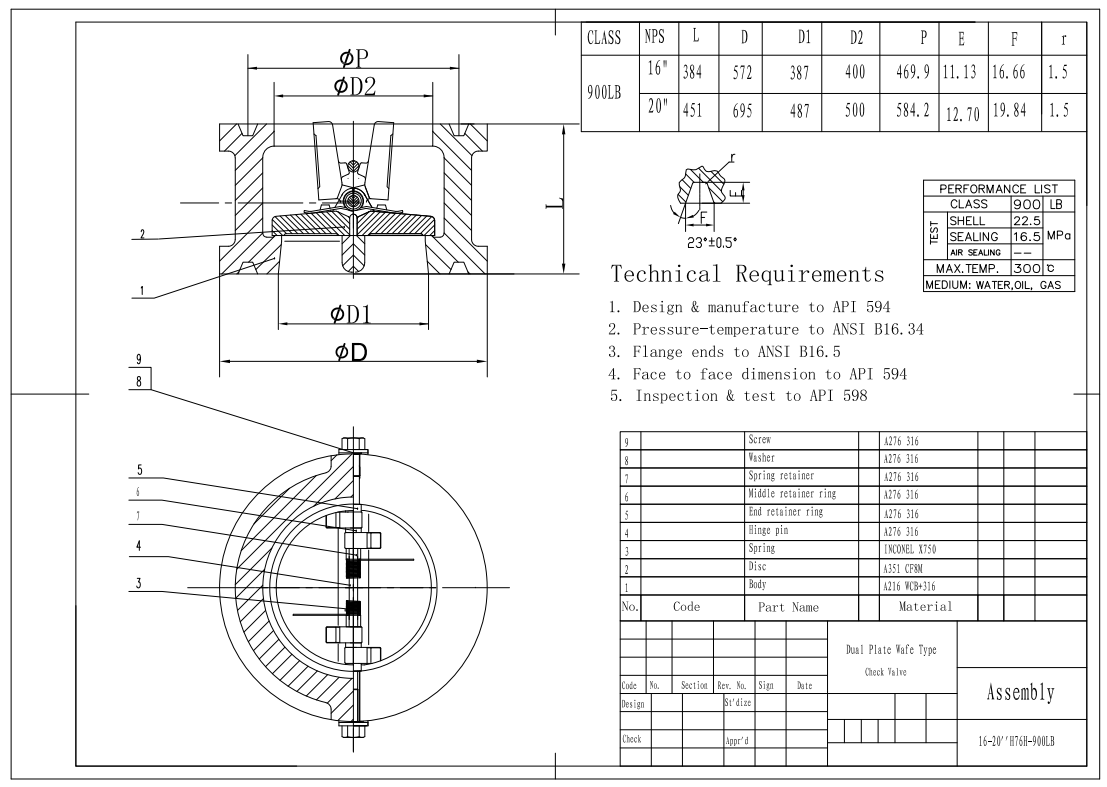

Technical Drawing

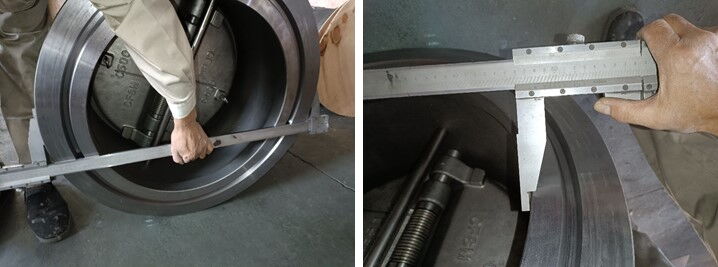

Dimension Checking

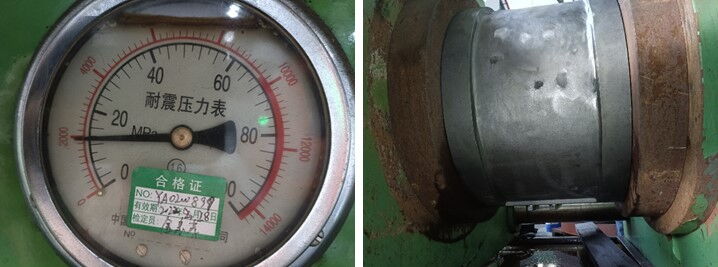

Pressure Testing

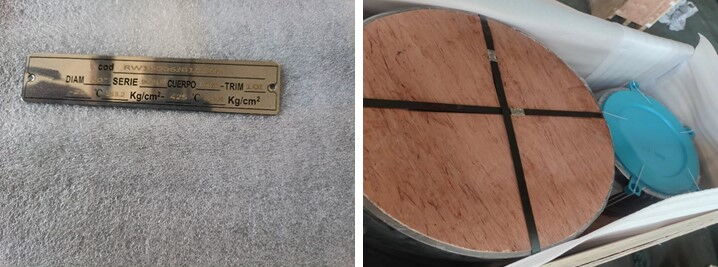

Nameplate & Packing

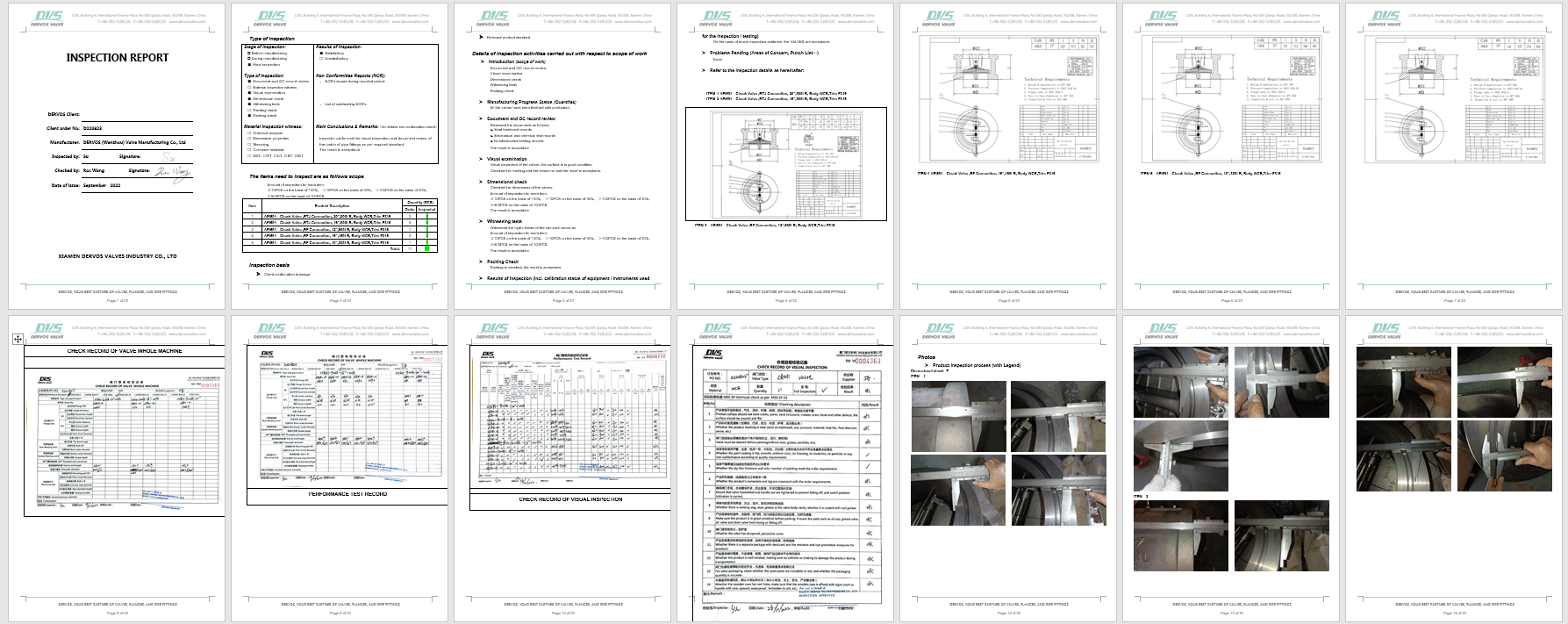

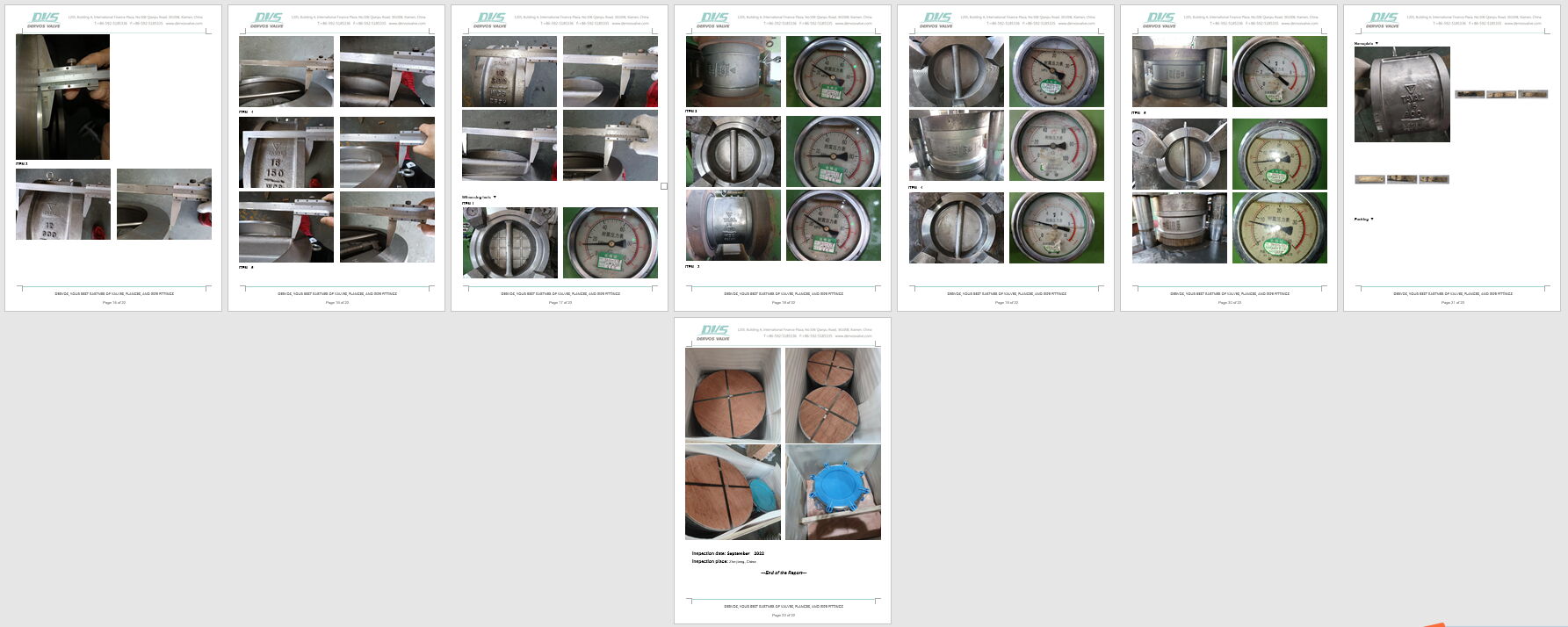

Inspection report
Features
1. Simple structure, high reliability, and convenient maintenance;
2. Easy to operate, unobstructed flow channels, low fluid resistance, and low-pressure loss.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
